Compare Model Drawings, CAD & Specs Wavelength Range Mirror Size Thickness Surface Quality Availability Price

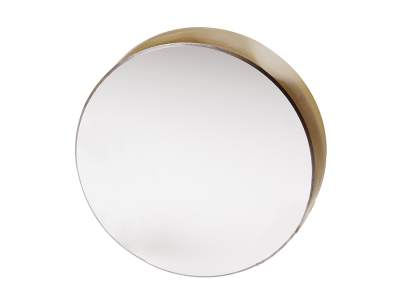

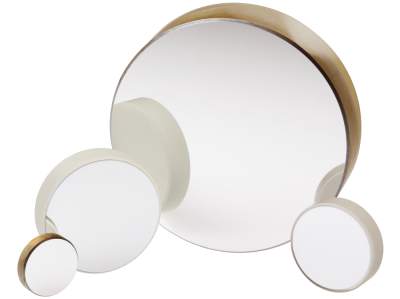

pinhole free optical mirror
$70
3 Weeks
250-600 nm Ø12.7 mm 3.1 mm 15-5 scratch-dig
3 Weeks
$610
In Stock
250-600 nm Ø12.7 mm 3.1 mm 15-5 scratch-dig
In Stock
$68
In Stock
450-700 nm Ø12.7 mm 3.1 mm 15-5 scratch-dig
In Stock
$610
In Stock
450-700 nm Ø12.7 mm 3.1 mm 15-5 scratch-dig
In Stock
pinhole free optical mirror
$72
In Stock
480-20000 nm Ø12.7 mm 3.1 mm 15-5 scratch-dig
In Stock
$646
In Stock
480-20000 nm Ø12.7 mm 3.1 mm 15-5 scratch-dig
In Stock
$82
In Stock
650-20000 nm Ø12.7 mm 3.1 mm 15-5 scratch-dig
In Stock
$737
In Stock
650-20000 nm Ø12.7 mm 3.1 mm 15-5 scratch-dig
In Stock
$76
In Stock
250-600 nm Ø19.05 mm 4.57 mm 15-5 scratch-dig
In Stock
$72
In Stock
450-700 nm Ø19.05 mm 4.57 mm 15-5 scratch-dig
In Stock
$88
In Stock
480-20000 nm Ø19.05 mm 4.57 mm 15-5 scratch-dig
In Stock
$93
In Stock
650-20000 nm Ø19.05 mm 4.57 mm 15-5 scratch-dig
In Stock
$70
In Stock
250-600 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig
In Stock
$628
In Stock
250-600 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig
In Stock
$68
In Stock
450-700 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig
In Stock
$610
In Stock
450-700 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig
In Stock
$95
In Stock
480-20000 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig
In Stock
$855
In Stock
480-20000 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig
In Stock
$90
In Stock
650-20000 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig
In Stock
$810
In Stock
650-20000 nm Ø25.4 mm 6.0 mm 15-5 scratch-dig
In Stock
$158
In Stock
250-600 nm Ø50.8 mm 12.7 mm 15-5 scratch-dig
In Stock
$154
In Stock
450-700 nm Ø50.8 mm 12.7 mm 15-5 scratch-dig
In Stock
large diameter pinhole free optical mirror
$201
In Stock
480-20000 nm Ø50.8 mm 12.7 mm 15-5 scratch-dig
In Stock
$262
In Stock
650-20000 nm Ø50.8 mm 12.7 mm 15-5 scratch-dig
In Stock
$444
In Stock
250-600 nm Ø76.2 mm 14.7 mm 15-5 scratch-dig
In Stock
$403
In Stock
450-700 nm Ø76.2 mm 14.7 mm 15-5 scratch-dig
In Stock
large diameter pinhole free optical mirror
$464
In Stock
480-20000 nm Ø76.2 mm 14.7 mm 15-5 scratch-dig
In Stock
$531
In Stock
650-20000 nm Ø76.2 mm 14.7 mm 15-5 scratch-dig
In Stock
large diameter pinhole free optical mirror
$151
In Stock
250-600 nm Ø30.0 mm 6.0 mm 15-5 scratch-dig
In Stock
large diameter pinhole free optical mirror
$131
In Stock
450-700 nm Ø30.0 mm 6.0 mm 15-5 scratch-dig
In Stock
large diameter pinhole free optical mirror
$167
In Stock
480-20000 nm Ø30.0 mm 6.0 mm 15-5 scratch-dig
In Stock
$201
In Stock
650-20000 nm Ø30.0 mm 6.0 mm 15-5 scratch-dig
In Stock
large diameter pinhole free optical mirror
$838
In Stock
250-600 nm Ø101.6 mm 17.7 mm 20-10 scratch-dig
In Stock
large diameter pinhole free optical mirror
$784
In Stock
450-700 nm Ø101.6 mm 17.7 mm 20-10 scratch-dig
In Stock
large diameter pinhole free optical mirror
$868
In Stock
480-20000 nm Ø101.6 mm 17.7 mm 20-10 scratch-dig
In Stock
$890
In Stock
650-20000 nm Ø101.6 mm 17.7 mm 20-10 scratch-dig
In Stock
$134
In Stock
450-12000 nm Ø25.4 mm 8.0 mm 25-10 scratch-dig
In Stock
$127
In Stock
200-700 nm Ø25.4 mm 8.0 mm 25-10 scratch-dig
In Stock
$381
In Stock
450-12000 nm Ø50.8 mm 12.5 mm 25-10 scratch-dig
In Stock
$92
In Stock
450-12000 nm Ø12.7 mm 5.0 mm 25-10 scratch-dig
In Stock
large diameter pinhole free optical mirror
$1,802
In Stock
250-600 nm Ø152.4 mm 23.5 mm 20-10 scratch-dig
In Stock
large diameter pinhole free optical mirror
$1,998
450-700 nm Ø152.4 mm 23.5 mm 20-10 scratch-dig
large diameter pinhole free optical mirror
$1,897
In Stock
480-20000 nm Ø152.4 mm 23.5 mm 20-10 scratch-dig
In Stock
large diameter pinhole free optical mirror
$4,039
In Stock
480-20000 nm Ø203.2 mm 29.5 mm 20-10 scratch-dig
In Stock

For all cost-saving 10 packs and mirror-mount bundles, click here
Concave mirror, square mirror, elliptical mirror, and D-shaped mirror are also available.

Specifications

  • Wavelength Range
    200-700 nm, 250-600 nm, 450-700 nm, 450-12000 nm, 480-20000 nm, 650-20000 nm
  • Mirror Shape
    Round
  • Diameter
    12.7 mm, 19.1 mm, 25.4 mm, 30.0 mm, 50.8 mm, 76.2 mm, 101.6 mm, 152.4 mm, 203.2 mm
  • Thickness
    3.1 mm, 4.57 mm, 5.0 mm, 6.0 mm, 8.0 mm, 12.7 mm, 14.7 mm, 17.7 mm, 23.5 mm, 29.5 mm
  • Material
    Borofloat 33
  • Surface Flatness
    λ/10 at 632.8 nm
  • Angle of Incidence
    0-45°
  • Clear Aperture
    ≥central 80% of diameter
  • Cleaning

Features

Borofloat® 33 Substrates

Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.

Enhanced Aluminum UV Coating

Our AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with average reflectivity greater than 90% from 250 – 600 nm. The aluminum film is overcoated with UV transparent magnesium fluoride to prevent oxidation of the metal.

Enhanced Aluminum VIS-NIR Coating

Our ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. Average reflectivity is greater than 93% from 450-700 nm.

Protected Silver VIS-IR Coating

Our ER.2 protected silver coating is composed of a low emissivity silver film, fully encapsulated by a multilayer dielectric stack to prevent oxidation. This coating has excellent broadband reflectivity in the IR, while maintaining very good performance in the visible and near IR. Average reflectivity is greater than 96% from 480 – 1100 nm and greater than 98.5% from 1.1 – 20 µm. This silver mirror is a favorite for Ultrafast scientists who want an inexpensive option.

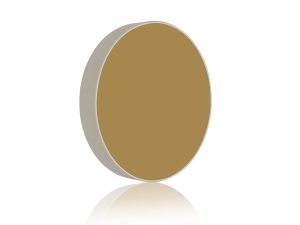

Protected Gold NIR-IR Coating

Our ER.4 protected gold coating is ideal for applications requiring broadband reflectance in the near IR to the far IR. A multilayer dielectric overcoat provides protection to the gold from the environment. Average reflectivity is greater than 96% from 650 – 1700 nm and greater than 98% from 1.7 – 2.0 µm.

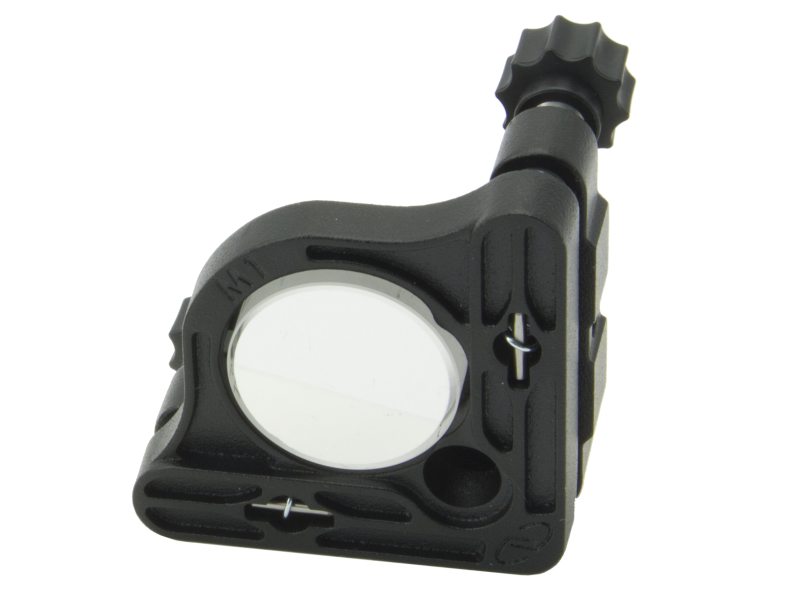

Mirror-Mount Bundles Available

Our 1 in. Borofloat 33 metallic mirrors are also available in mirror-mount bundles, an ideal packaged set for standard laboratory applications.

Bundle Mirror Mount
ER1-M1 10D20ER.1 M1
ER2-M1 10D20ER.2 M1
ER4-M1 10D20ER.4 M1
AL2-U100 10D20AL.2 U100-A2K-NL
ER1-U100 10D20ER.1 U100-A2K-NL
ER2-U100 10D20ER.2 U100-A2K-NL
ER4-U100 10D20ER.4 U100-A2K-NL

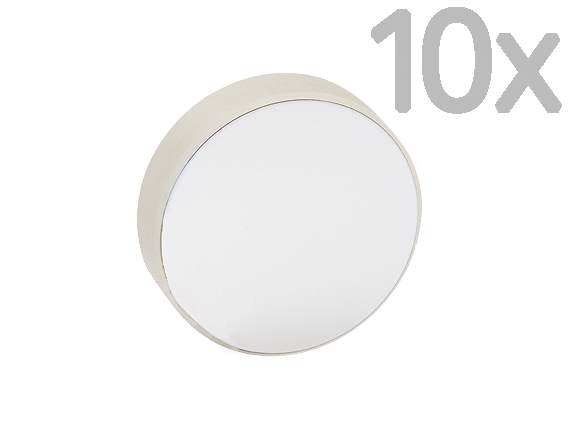

Save by Purchasing a Pack of 10!

A convenient pack of ten mirrors is also offered at a discount for customers outfitting new laboratories or new research applications.
