Compare Model Drawings, CAD & Specs Diameter Effective Focal Length (EFL) Wavelength Range F/# Edge Thickness (Te) Availability Price
05DC100AL.2
$153
In Stock
 05DC100AL.2 12.7 mm 50 mm 250-600 nm 3.9 3.18 mm
In Stock
 $153
05DC100ER.1
$143
In Stock
 05DC100ER.1 12.7 mm 50 mm 450-700 nm 3.9 3.18 mm
In Stock
 $143
05DC100ER.2
$180
In Stock
 05DC100ER.2 12.7 mm 50 mm 480-20000 nm 3.9 3.18 mm
In Stock
 $180
05DC200AL.2
$153
05DC200AL.2 12.7 mm 100 mm 250-600 nm 7.9 3.18 mm $153
05DC200ER.1
$142
In Stock
 05DC200ER.1 12.7 mm 100 mm 450-700 nm 7.9 3.18 mm
In Stock
 $142
05DC200ER.2
$180
05DC200ER.2 12.7 mm 100 mm 480-20000 nm 7.9 3.18 mm $180
05DC25AL.2
$175
In Stock
 05DC25AL.2 12.7 mm 12.5 mm 250-600 nm 1 3.18 mm
In Stock
 $175
05DC25ER.1
$164
In Stock
 05DC25ER.1 12.7 mm 12.5 mm 450-700 nm 1 3.18 mm
In Stock
 $164
05DC25ER.2
$230
In Stock
 05DC25ER.2 12.7 mm 12.5 mm 480-20000 nm 1 3.18 mm
In Stock
 $230
05DC500AL.2
$160
In Stock
 05DC500AL.2 12.7 mm 250 mm 250-600 nm 19.7 3.18 mm
In Stock
 $160
05DC500ER.1
$153
In Stock
 05DC500ER.1 12.7 mm 250 mm 450-700 nm 19.7 3.18 mm
In Stock
 $153
05DC500ER.2
$186
In Stock
 05DC500ER.2 12.7 mm 250 mm 480-20000 nm 19.7 3.18 mm
In Stock
 $186
05DC50AL.2
$160
In Stock
 05DC50AL.2 12.7 mm 25 mm 250-600 nm 2 3.18 mm
In Stock
 $160
05DC50ER.1
$153
In Stock
 05DC50ER.1 12.7 mm 25 mm 450-700 nm 2 3.18 mm
In Stock
 $153
05DC50ER.2
$186
In Stock
 05DC50ER.2 12.7 mm 25 mm 480-20000 nm 2 3.18 mm
In Stock
 $186
10DC1000AL.2
$164
10DC1000AL.2 25.4 mm 500 mm 250-600 nm 19.7 6.35 mm $164
10DC1000ER.1
$153
In Stock
 10DC1000ER.1 25.4 mm 500 mm 450-700 nm 19.7 6.35 mm
In Stock
 $153
10DC1000ER.2
$186
In Stock
 10DC1000ER.2 25.4 mm 500 mm 480-20000 nm 19.7 6.35 mm
In Stock
 $186
10DC100AL.2
$164
In Stock
 10DC100AL.2 25.4 mm 50 mm 250-600 nm 2 6.35 mm
In Stock
 $164
10DC100ER.1
$153
In Stock
 10DC100ER.1 25.4 mm 50 mm 450-700 nm 2 6.35 mm
In Stock
 $153
10DC100ER.2
$186
In Stock
 10DC100ER.2 25.4 mm 50 mm 480-20000 nm 2 6.35 mm
In Stock
 $186
10DC200AL.2
$164
In Stock
 10DC200AL.2 25.4 mm 100 mm 250-600 nm 3.9 6.35 mm
In Stock
 $164
10DC200ER.1
$153
In Stock
 10DC200ER.1 25.4 mm 100 mm 450-700 nm 3.9 6.35 mm
In Stock
 $153
10DC200ER.2
$186
In Stock
 10DC200ER.2 25.4 mm 100 mm 480-20000 nm 3.9 6.35 mm
In Stock
 $186
10DC500AL.2
$164
In Stock
 10DC500AL.2 25.4 mm 250 mm 250-600 nm 9.8 6.35 mm
In Stock
 $164
10DC500ER.1
$153
In Stock
 10DC500ER.1 25.4 mm 250 mm 450-700 nm 9.8 6.35 mm
In Stock
 $153
10DC500ER.2
$186
In Stock
 10DC500ER.2 25.4 mm 250 mm 480-20000 nm 9.8 6.35 mm
In Stock
 $186
10DC50AL.2
$207
In Stock
 10DC50AL.2 25.4 mm 25 mm 250-600 nm 1 6.35 mm
In Stock
 $207
10DC50ER.1
$196
In Stock
 10DC50ER.1 25.4 mm 25 mm 450-700 nm 1 6.35 mm
In Stock
 $196
10DC50ER.2
$251
In Stock
 10DC50ER.2 25.4 mm 25 mm 480-20000 nm 1 6.35 mm
In Stock
 $251
20DC1000AL.2
$214
In Stock
 20DC1000AL.2 50.8 mm 500 mm 250-600 nm 9.8 9.65 mm
In Stock
 $214
20DC1000ER.1
$206
In Stock
 20DC1000ER.1 50.8 mm 500 mm 450-700 nm 9.8 9.65 mm
In Stock
 $206
20DC1000ER.2
$282
In Stock
 20DC1000ER.2 50.8 mm 500 mm 480-20000 nm 9.8 9.65 mm
In Stock
 $282
20DC100AL.2
$236
In Stock
 20DC100AL.2 50.8 mm 50 mm 250-600 nm 1 9.65 mm
In Stock
 $236
20DC100ER.1
$227
In Stock
 20DC100ER.1 50.8 mm 50 mm 450-700 nm 1 9.65 mm
In Stock
 $227
20DC100ER.2
$311
In Stock
 20DC100ER.2 50.8 mm 50 mm 480-20000 nm 1 9.65 mm
In Stock
 $311
20DC2000AL.2
$214
In Stock
 20DC2000AL.2 50.8 mm 1000 mm 250-600 nm 19.7 9.53 mm
In Stock
 $214
20DC2000ER.1
$205
In Stock
 20DC2000ER.1 50.8 mm 1000 mm 450-700 nm 19.7 9.65 mm
In Stock
 $205
20DC2000ER.2
$282
20DC2000ER.2 50.8 mm 1000 mm 480-20000 nm 19.7 9.65 mm $282
20DC200AL.2
$214
In Stock
 20DC200AL.2 50.8 mm 100 mm 250-600 nm 2 9.65 mm
In Stock
 $214
20DC200ER.1
$206
In Stock
 20DC200ER.1 50.8 mm 100 mm 450-700 nm 2 9.65 mm
In Stock
 $206
20DC200ER.2
$282
In Stock
 20DC200ER.2 50.8 mm 100 mm 480-20000 nm 2 9.65 mm
In Stock
 $282
20DC500AL.2
$214
In Stock
 20DC500AL.2 50.8 mm 250 mm 250-600 nm 4.9 9.65 mm
In Stock
 $214
20DC500ER.1
$206
In Stock
 20DC500ER.1 50.8 mm 250 mm 450-700 nm 4.9 9.65 mm
In Stock
 $206
20DC500ER.2
$282
In Stock
 20DC500ER.2 50.8 mm 250 mm 480-20000 nm 4.9 9.65 mm
In Stock
 $282

For flat broadband metallic mirrors, click here

Specifications

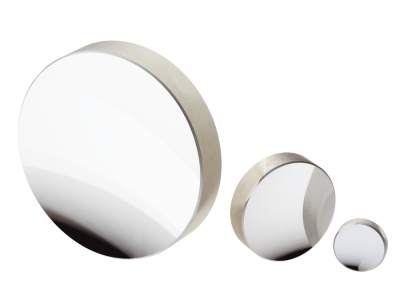

  • Mirror Shape
    Concave
  • Material
    Borofloat® 33
  • Angle of Incidence
    0-15°
  • Surface Accuracy, Power
    1.5λ @ 632.8 nm
  • Surface Accuracy, Irregularity
    λ/4 @ 632.8 nm
  • Surface Quality
    40-20 scratch-dig
  • Back Surface
    Ground
  • Thickness Tolerance
    ±0.25 mm
  • Diameter Tolerance
    +0/-0.13 mm
  • Clear Aperture
    ≥central 80% of diameter
  • Wedge
    ≤0.025 mm edge thickness variation
  • Chamfers
    0.25-0.76 mm face width
  • Chamfers Angle Tolerance
    45° ±15°
  • Cleaning
    See How to Clean Optics

Features

Borofloat® 33 Substrates

Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.

Enhanced Aluminum UV Coating

Our AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with average reflectivity greater than 90% from 250 – 600 nm. The aluminum film is overcoated with UV transparent magnesium fluoride to prevent oxidation of the metal.

Enhanced Aluminum VIS-NIR Coating

Our ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. Average reflectivity is greater than 93% from 450-700 nm.

Protected Silver VIS-IR Coating

Our ER.2 protected silver coating is composed of a low emissivity silver film fully encapsulated by a multilayer dielectric stack to prevent oxidation. This coating has excellent broadband reflectivity in the IR, while maintaining very good performance in the visible and near IR. Average reflectivity is greater than 96% from 480 – 1100 nm and greater than 98.5% from 1.1 – 20 µm. This silver mirror is a favorite for Ultrafast scientists who want an inexpensive option.

Resources
