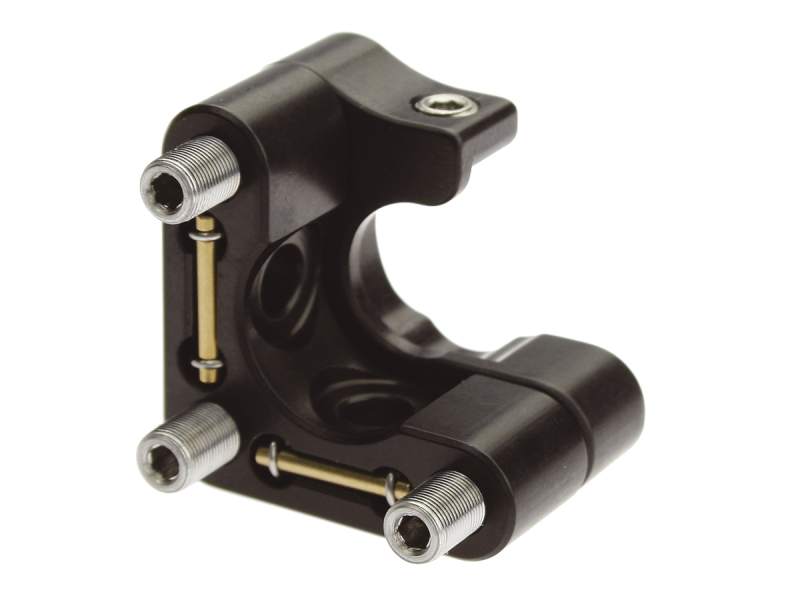

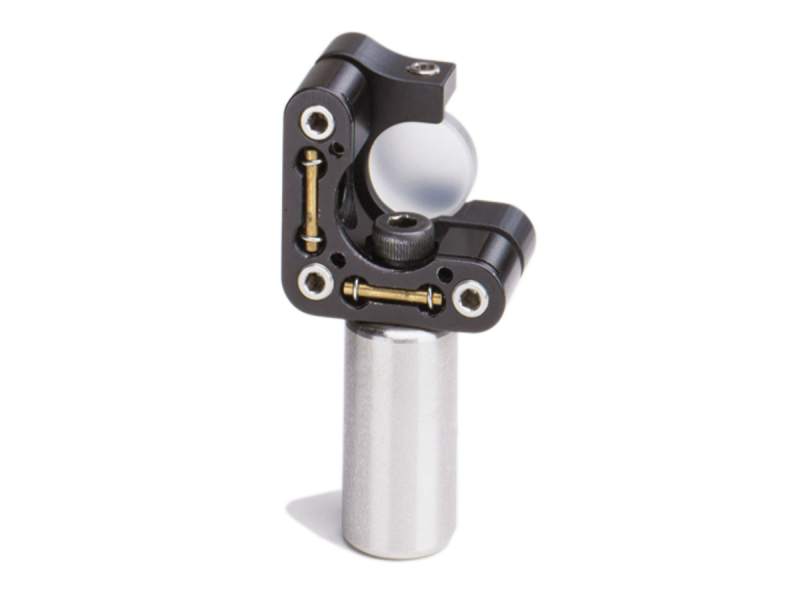

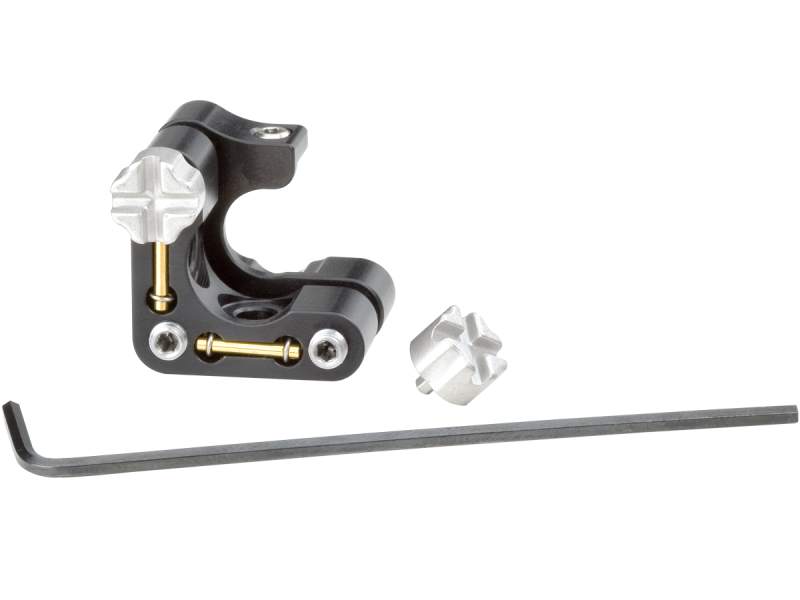

Mirror Mount, ULTIMA®, Clear Edge, 0.5 in., (3) 80-TPI Allen-Keys

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    12.7 mm
  • Adjustment Screw Thread
    80 TPI
  • Adjustments
    z, θx, θy
  • Sensitivity
    10.4 arc sec
  • Angular Range
    ±5°
  • Material
    Anodized Aluminum
  • Drive Type
    Allen-Key, non-locking
  • Thread Type
    8-32 (M4) CLR
