Aluminum Mirror, Borofloat, 19.05 mm, λ/10, 450-700 nm

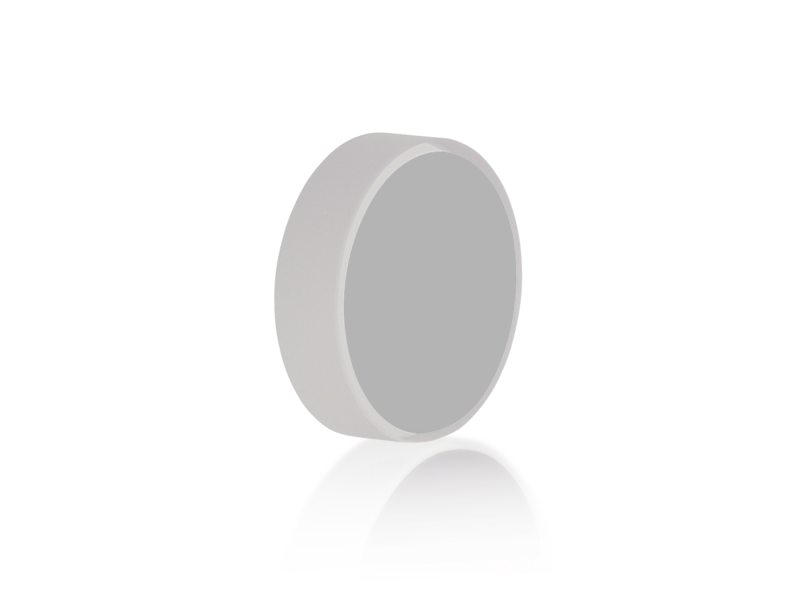

The 07D20ER.1 Broadband Aluminum Mirror is an excellent general purpose, broadband reflector. This 19.05 mm (3/4 inch) diameter mirror is made from a 4.57 mm thick Borofloat® 33 substrate which is coated with the ER.1 aluminum coating. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. The 07D20ER.1 has an average reflectivity greater than 93% from 450–700 nm. This mirror has a λ/10 surface flatness and a 15-5 surface quality.

Specifications

Technical Specs

Wavelength Region
VIS
Wavelength Range
450-700 nm
Mirror Shape
Round
Diameter
19.05 mm
Mirror Size
Ø19.05 mm
Thickness
4.57 mm
Material
Borofloat® 33
Coating Type
Enhanced Aluminum
Coating Code
ER.1
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity

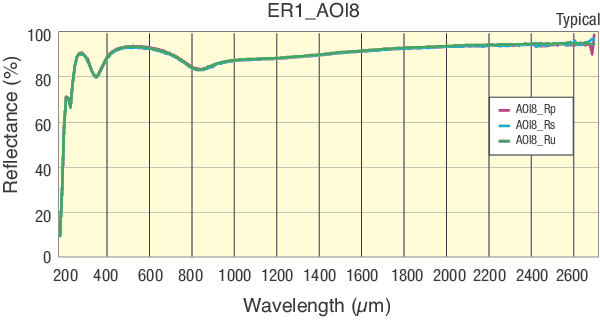

R_avg>93%, R_min>90 % @ 450-700 nm
Damage Threshold
0.5 J/cm² with 10 ns pulses at 532 nm, 20Hz
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
VIS
Wavelength Range
450-700 nm
Mirror Shape
Round
Diameter
19.05 mm
Mirror Size
Ø19.05 mm
Thickness
4.57 mm
Material
Borofloat® 33
Coating Type
Enhanced Aluminum
Coating Code
ER.1
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>93%, R_min>90 % @ 450-700 nm
Damage Threshold
0.5 J/cm² with 10 ns pulses at 532 nm, 20Hz
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
