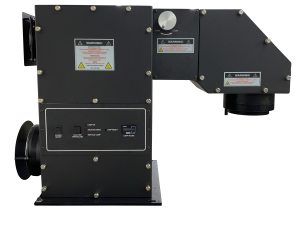

Class AAA Solar Simulators

Specifications

Technical Specs

Simulator Class
Class AAA
Lamp Type
Xenon
Beam Uniformity
≤2%
Spectral Match Classification
A (IEC 60904-9 2007) A (JIS 8904-9 2017) A (ASTM E927 - 10 2015)
Temporal Instability
≤0.5% STI≤2.0% LTI
Temporal Instability Classification
A (IEC 60904-9 2007) A (JIS 8904-9 2017) A (ASTM E927 - 10 2015)

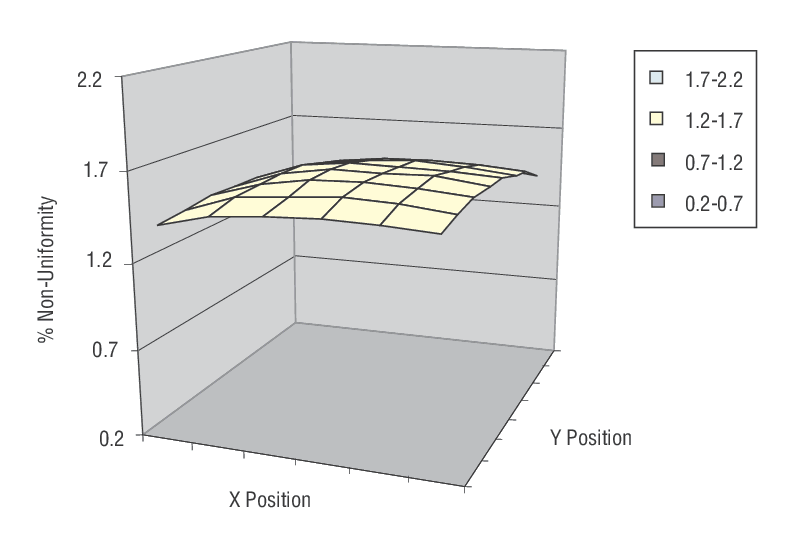

Uniformity
≤2 %
Uniformity Classification
A (IEC 60904-9 2007) A (JIS 8904-9 2017) A (ASTM E927 - 10 2015)
Line Regulation
0.01%

Simulator Class
Class AAA
Lamp Type
Xenon
Beam Uniformity
≤2%
Spectral Match Classification
A (IEC 60904-9 2007) A (JIS 8904-9 2017) A (ASTM E927 - 10 2015)
Temporal Instability
≤0.5% STI≤2.0% LTI
Temporal Instability Classification
A (IEC 60904-9 2007) A (JIS 8904-9 2017) A (ASTM E927 - 10 2015)

Uniformity
≤2 %
Uniformity Classification
A (IEC 60904-9 2007) A (JIS 8904-9 2017) A (ASTM E927 - 10 2015)
Line Regulation
0.01%

Resources & Downloads

Literature

Oriel Sol3A Solar Simulator Datasheet(1.5 MB, PDF)
Oriel Solar Simulator Field Recertification Service Datasheet(478.5 kB, PDF)
EU Declaration of Conformity- Solar Simulators(1.5 MB, PDF)

Manuals

Oriel Partial Sun Attenuator User Manual(373.6 kB, PDF)
Oriel Sol3A Simulator User Manual(3 MB, PDF)
Oriel 69920 Power Supply User Manual(264.3 kB, PDF)
Oriel 69922 Power Supply User Manual(314.7 kB, PDF)

Technical Notes

Tutorials

Application Notes

Reliable Solar Cell Measurements(511.3 kB, PDF)
Comparisons of IV Curves between Xenon Lamp-Based and LED-Based Solar Simulators(482.7 kB, PDF)

Videos

Related Products

Replacement Lamps and Filters

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		6280NSXenon Short Arc Lamp, 450 W, Ozone Free	UNIVERSAL		Contact Us	$1,310
		6272Xenon Arc Lamp, 1000 W, Ozone Free	UNIVERSAL			$1,200
		62726Xenon Arc Lamp, 1600 W, Ozone Free	UNIVERSAL			$2,080
		81388Air Mass Filter, AM 1.5 Global	UNIVERSAL

Replacement Power Supplies and Cables

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		69920Arc Lamp Power Supply, Universal, 350 to 1000 Watt	UNIVERSAL			$7,175
		69922Arc Lamp Power Supply, Universal, 800 to 1800 Watt	UNIVERSAL			$8,325
		70052Power Supply Cable Set, 6 ft. Length, for 69920 and 69922 Power Supplies	UNIVERSAL			$250

Compatible Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		91150VCalibrated Reference Cell, Meter, Quartz Window	UNIVERSAL		Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$4,205
		91150-KG5Calibrated Reference Cell, Meter, KG5 Window	UNIVERSAL			$4,165
		PVIV-1AI-V Test Station, 1 Amp Max, Software and Meter Included	UNIVERSAL
		PVIV-10AI-V Test Station, 10 Amp Max, Software and Meter Included	UNIVERSAL

Optional Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		68951Digital Exposure System, Solar Simulators	UNIVERSAL			$8,195
		81311Air Mass Filter, AM 0	UNIVERSAL
		81389Air Mass Filter, AM 1.5 Direct	UNIVERSAL
