Technical Note:
Solar Simulator Spectral Irradiance Data



Spectral irradiance data is shown below for our Solar Simulators. You can click on the curve for a larger image, or on a model number for complete information on a specific solar simulator. Spectral irradiance curves for other types of lamps can be found on the right. View Information on Spectral Irradiance Data and Using Spectral Irradiance Curves for complete information on how the data was obtained and how to use it.

LS-174a

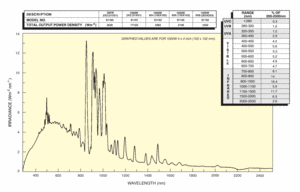

Figure 1: The unfiltered output of the 91192, 1000 W Solar Simulator. The 1600 W Solar Simulators have a ~30% higher irradiance than equivalent 1000 W Simulators.
LS-174b

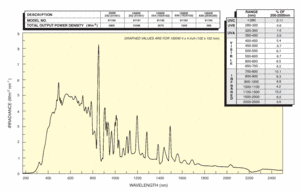

Figure 2: The output of the 91192, 1000 W Solar Simulator, with AM 0 filter. The 1600 W Solar Simulators have ~30% higher irradiance than equivalent 1000 W Simulators.
LS-175a

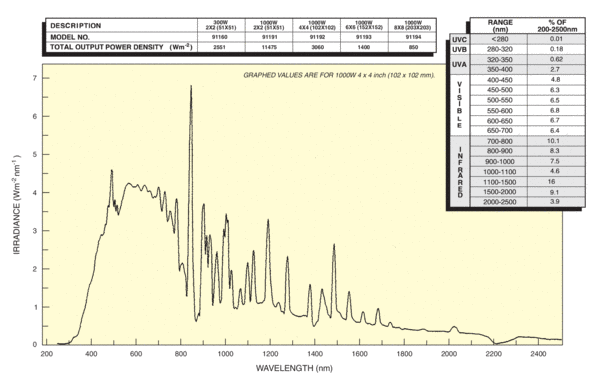

Figure 3: The output of the 91192, 1000 W Solar Simulator, with AM 1 filter. The 1600 W Solar Simulators have ~30% higher irradiance than equivalent 1000 W Simulators.
LS-175b

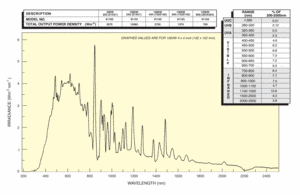

Figure 4: The output of the 91192, 1000 W Solar Simulator, with 1.5 Direct Filter. The 1600 W Solar Simulators have ~30% high irradiance than equivalent 1000 W Simulators.
LS-176a
Figure 5: The output of the 91192, 1000 W Solar Simulator, with AM 1.5 Global Filter. The 1600 W Solar Simulators have ~30% higher irradiance than equivalent 1000 W Simulators.
LS-176b

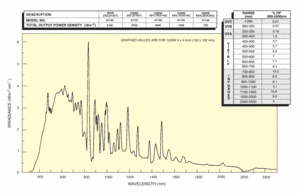

Figure 6: The output of the 91192, 1000 W Solar Simulator, with AM 2 Filter. The 1600 W Solar Simulators have ~30% higher irradiance than equivalent 1000 W Simulators.
LS-177a
Figure 7: The unfiltered output of the 91291, 1000 W Solar UV Simulator. The 1600 W Solar Simulators have ~30% higher irradiance than equivalent 1000 W Simulators.
LS-177b

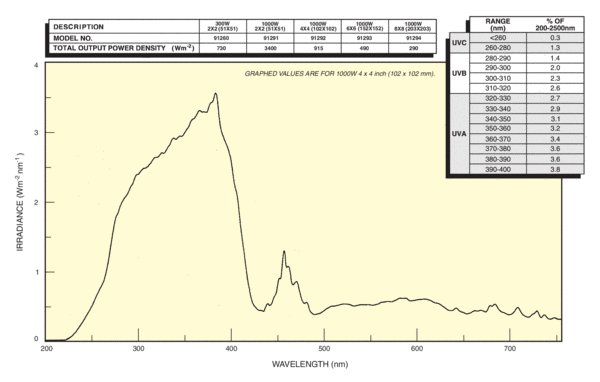

Figure 8: The UV-VIS output of the 91291, 1000 W UV Solar Simulator. The 1600 W Solar Simulators have ~30% higher irradiance than equivalent 1000 W Simulators.
