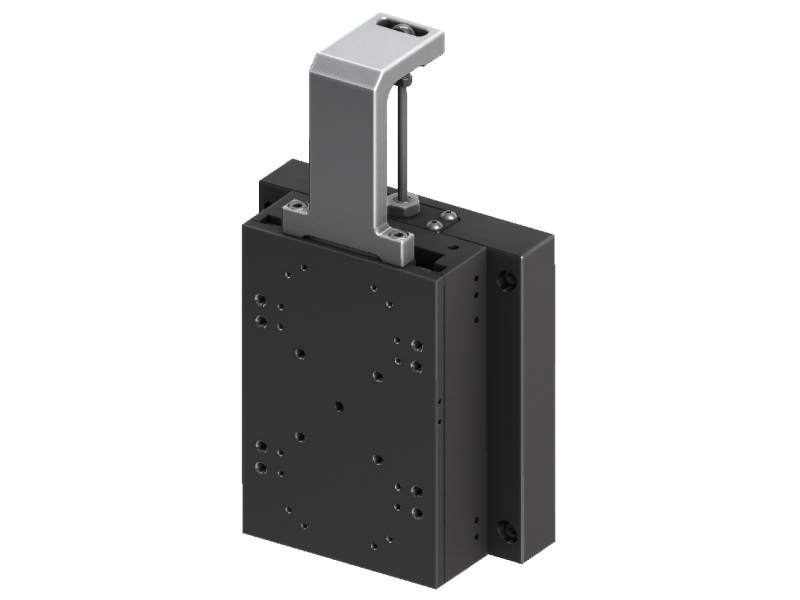

XMS100V Motorized Vertical Stage

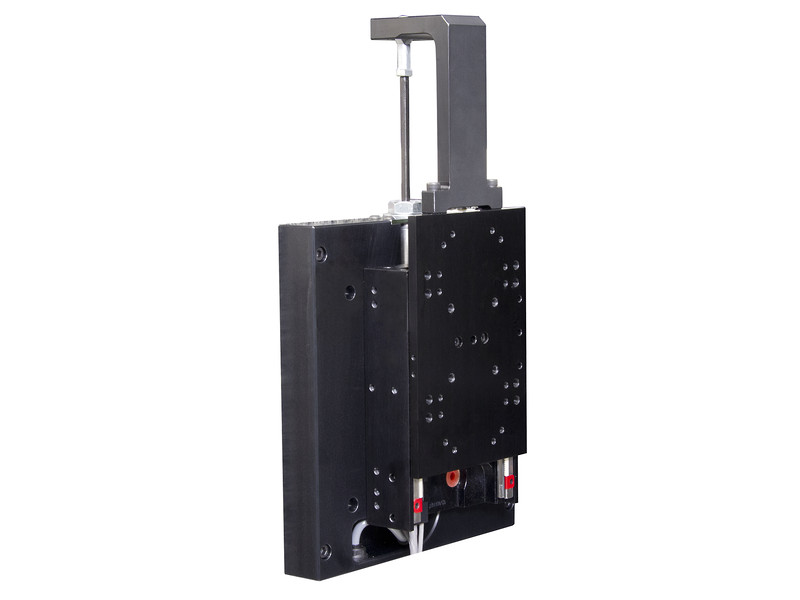

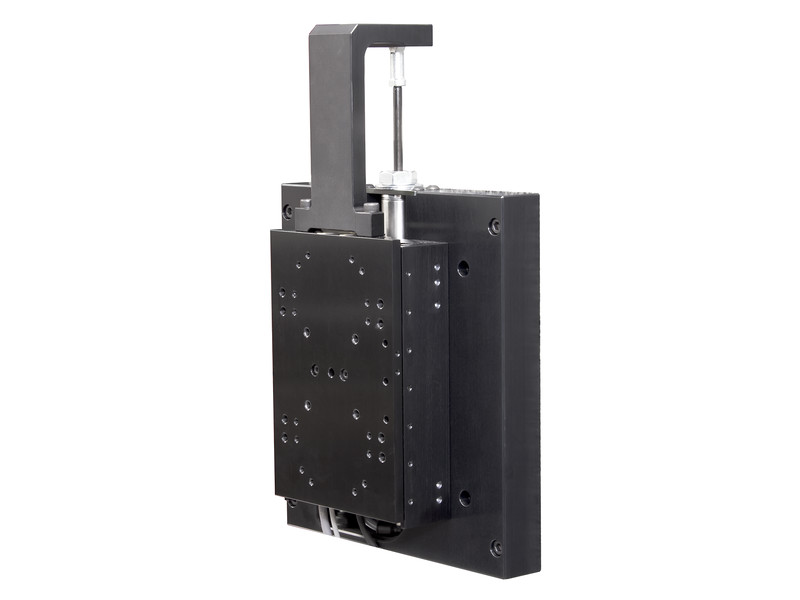

The XMS100V stage is comprised of a standard XMS100 stage mounted on a high flatness (surface flatness within 5 µm) vertical plate or a bracket and a low friction air cylinder connected to the carriage. The custom-designed connection of the air cylinder to the carriage eliminates the effect of the air cylinder’s motion on the performance of the XMS100 stage. With the proper adjustment of pressure, a perfect balance of the load can be achieved. When motor power is turned off, the air cylinder’s valve will enable a controlled descent of the carriage. Also available with a more compact, but load-specific, magnetic counterweight.

Contact Inside Sales Support team to discuss application requirements and get a quote for the solution that best suits your needs.

Specifications

Technical Specs

Travel Range

100 mm
Minimum Incremental Motion

0.05 µm
Maximum Speed

300 mm/s
Centered Load Capacity

100 N
Accuracy, Guaranteed

± 0.75 µm
Bi-directional Repeatability, Guaranteed

± 0.05 µm
Limit Switches

Optical, fiducial on encoder
Origin

Optical, at center of travel, including mechanical zero signal
Compliance in Pitch

2.5 µrad/Nm

Compliance in Roll

2.0 µrad/Nm
Compliance in Yaw

3.5 µrad/Nm
Straightness, Flatness

± 0.75 µm
Cable Length

5 m
Weight

3.5 kg
MTBF

20,000 h
Compliance

RoHS 3, CE

Travel Range

100 mm
Minimum Incremental Motion

0.05 µm
Maximum Speed

300 mm/s
Centered Load Capacity

100 N
Accuracy, Guaranteed

± 0.75 µm
Bi-directional Repeatability, Guaranteed

± 0.05 µm
Limit Switches

Optical, fiducial on encoder
Origin

Optical, at center of travel, including mechanical zero signal
Compliance in Pitch

2.5 µrad/Nm

Compliance in Roll

2.0 µrad/Nm
Compliance in Yaw

3.5 µrad/Nm
Straightness, Flatness

± 0.75 µm
Cable Length

5 m
Weight

3.5 kg
MTBF

20,000 h
Compliance

RoHS 3, CE
