Cable Kit, For Stages IMS-LM-S, XM-S, and XPS-DRV02 Driver

XPS Motion Controller to Stage Cable Kits

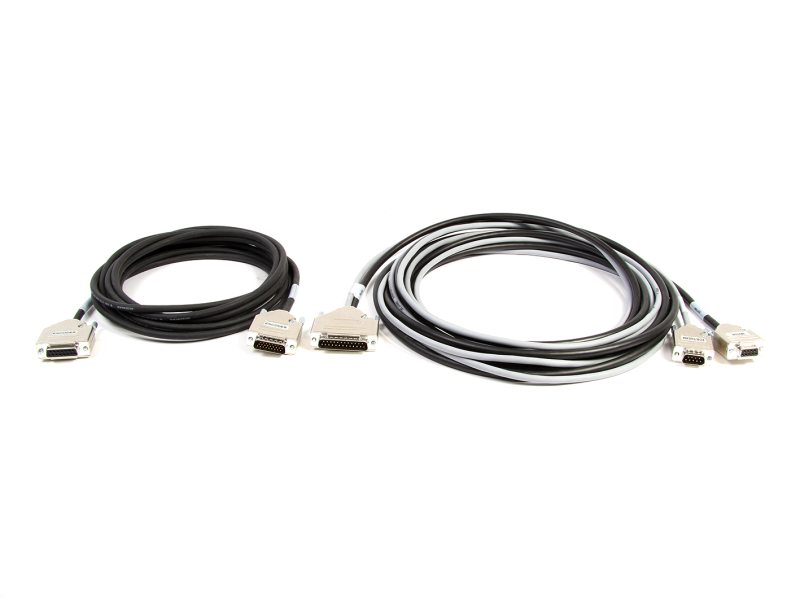

The XPS-DK27 is a cable kit to connect IMS-LM-S and XML / XMS-S stages to XPS-D /XPS-RLD controllers via XPS-DRV02 driver card. The kit includes 5 meter long E5775x encoder cable, E3839x motor cable and E3840x thermistor cable.

Resources & Downloads

Manuals

Cable Kits User's Manual.pdf(1.9 MB, PDF)

Related Products

Compatible Controller and Driver Module

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		XPS-D8Universal Motion Controller, High Performance, 8-axis, Ethernet	UNIVERSAL		In Stock	$12,058

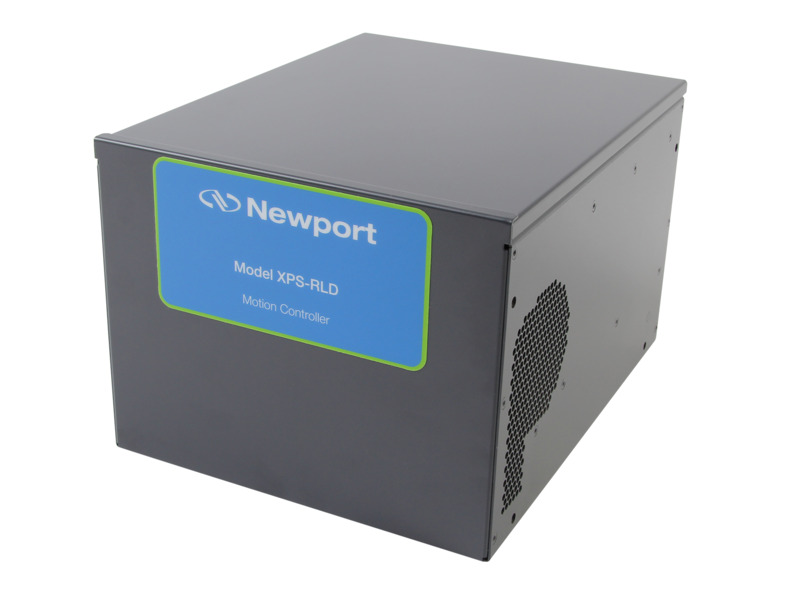

		XPS-RLD4Motion Controller, 4-axis Universal Driver, Ethernet, Basic GPIO and PCO	UNIVERSAL		Contact Us	$8,065
