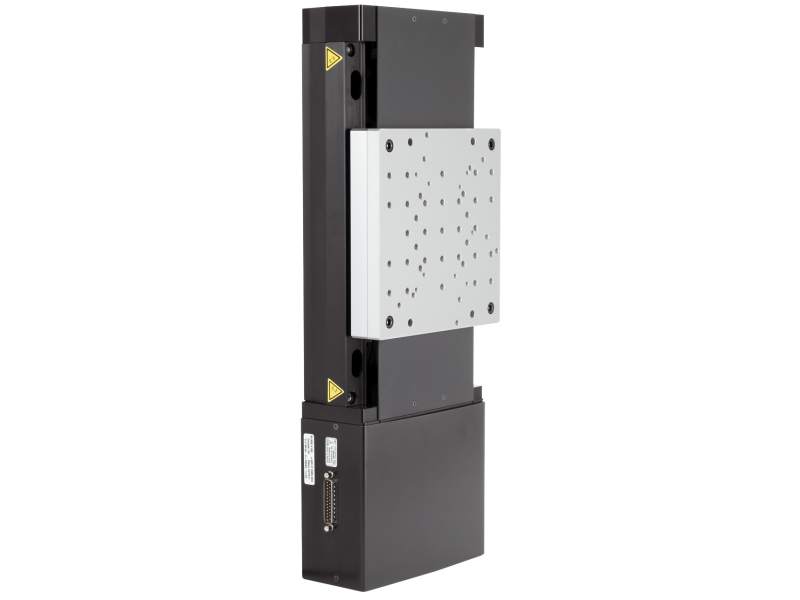

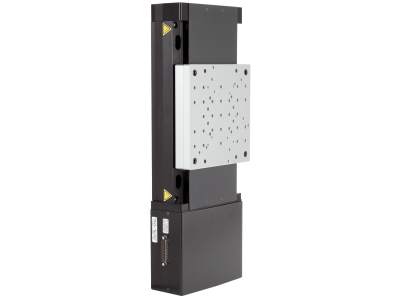

Motorized Vertical Stage, 100 mm Travel, 400 N Load, DC motor, 1/4-20

Technical Specs

  • Travel Range
    100 mm
  • Minimum Incremental Motion
    0.30 µm
  • Maximum Speed
    20 mm/s

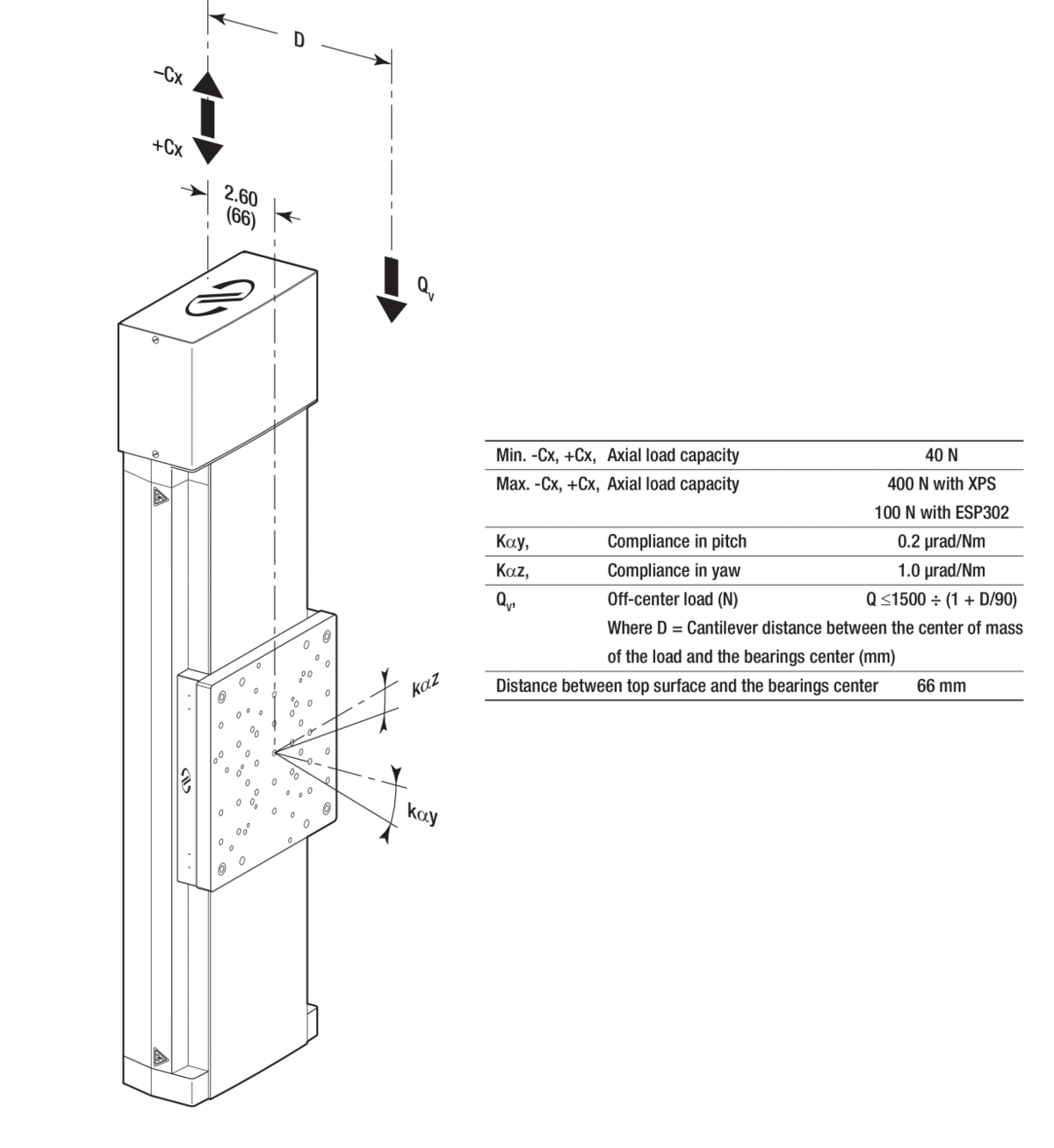

  • Centered Load Capacity
    400 N
  • Accuracy, Typical
    ±0.6 µm
  • Accuracy, Guaranteed
    ±2.0 µm
  • Bi-directional Repeatability, Typical
    ±0.15 µm
  • Bi-directional Repeatability, Guaranteed
    ±0.50 µm
  • Uni-directional Repeatability, Typical
    ±0.10 µm
  • Uni-directional Repeatability, Guaranteed
    ±0.25 µm
  • Drive Screw Pitch
    3 mm
  • Reduction Gear
    1:3.75 belt reduction between motor and screw
  • Encoder Resolution
    0.1 µm
  • Limit Switches
    Optical
  • Origin
    Optical, close to lower limit
  • Origin Repeatability
    ±0.1 µm
  • Cable Length
    5 m
  • Connectors
    DB25 Male
  • Pitch, Typical
    ±15 µrad
  • Pitch, Guaranteed
    ±50 µrad
  • Compliance in Pitch
    1 µrad/Nm
  • Yaw, Typical
    ±10 µrad
  • Yaw, Guaranteed
    ±38 µrad
  • Compliance in Yaw
    1 µrad/Nm
  • Thread Type
    1/4-20
  • Weight
    13.6 kg
  • MTBF
    20,000 h (300 N load, 10% duty cycle)
  • RoHS
    Compliant
