Lab Jack, Fast Travel, 120 mm Travel, 160 x 240 mm, 500 N, M5 and M6
Lab Jack, Fast Travel, 120 mm Travel, 160 x 240 mm, 500 N, M5 and M6
Model: M-EL120
Product Series Overview

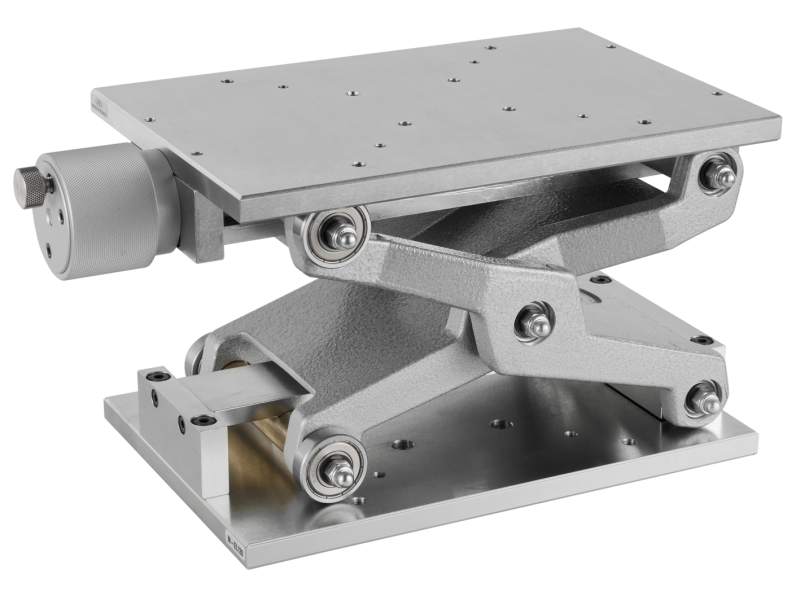

Compact, Fast Travel Lab JacksThe M-EL120 Fast Travel Lab Jack is a heavy-duty positioner with a high, 500 N, load capacity. This labjack is useful for 120 mm range positioning of heavier components with high precision and stability. Labjacks combine precision height adjustment in a stable design with a high load capacity.
When choosing a labjack, be sure to consider the vertical travel requirements, the load to be positioned, and the size of the lab jack. The upper and lower mounting plates have hole patterns that are compatible with many metric Newport products.
Resources & Downloads
2D Product Drawings
M-EL120-S(89.5 kB, PDF)
Other
M-EL M-EN RoHS Certificate.pdf(116.9 kB, PDF) M-EL120 REACH Certificate.pdf(119.7 kB, PDF)
