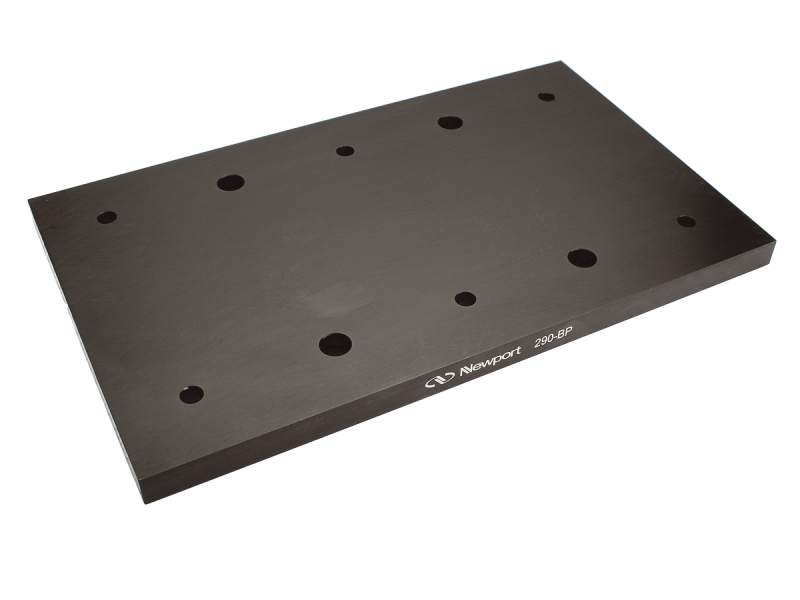

Base Plate, Fixed Height Platform, 10 in. x 6 in., (10) 1/4-20 CLR.

Base Plate, Fixed Height Platform, 10 in. x 6 in., (10) 1/4-20 CLR.

Model: 290-BP

$143

In Stock

Compare

Add to List

Product Series Overview

Mounting Plates and Platforms

The 290-BP Base Plate is 6.0 x 10.0 in. and has (10) 1/4-20 CLR holes. It is part of the 290 Series Fixed Height Platform Assemblies.

Specifications

Technical Specs

Type

Base Plate
Height

12.7 mm
Length

254 mm
Width

152.4 mm

Thread Type

1/4-20
Material

Aluminum

Type

Base Plate
Height

12.7 mm
Length

254 mm
Width

152.4 mm

Thread Type

1/4-20
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

290-BP-DWG-S.pdf (75.2 kB, PDF)

Other

RoHS Certificate (685.8 kB, PDF)
