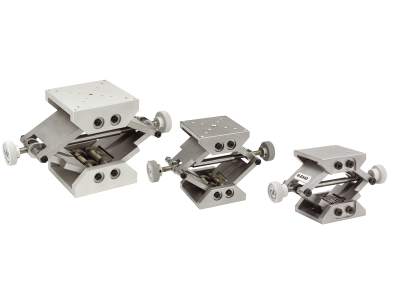

These fast travel lab jacks have dual adjustment knobs for a large travel range in a compact labjack size.

Fast height adjustment provided by crank handle
Dual adjustment knobs
Compact size with 40 mm square platform
Up to 120 mm vertical travel and 500 N load capacity

See All Features

Show Filters:

Showing 5 of 5 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Travel Range	Load Capacity	Thread Type	Minimum Height	Maximum Height	Avail.	Price

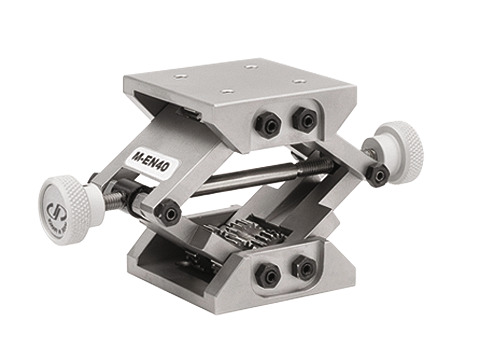

		M-EN40Lab Jack, Fast Travel, 42 mm Travel, 40 x 40 mm, 10 N Load, M3	UNIVERSAL		42 mm	10 N	M3	25 mm	67 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,094

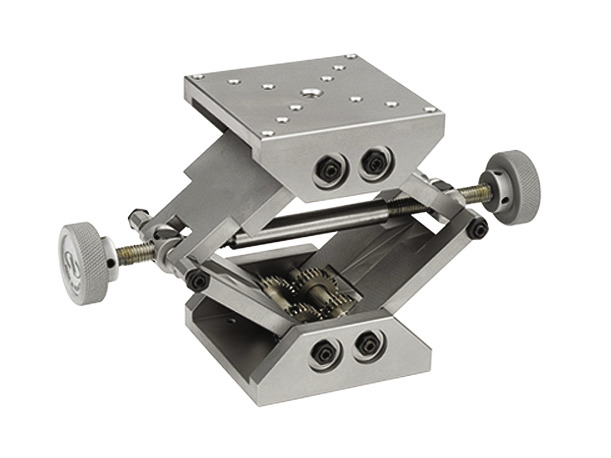

		M-EN60Lab Jack, Fast Travel, 70 mm Travel, 60 x 60 mm, 20 N Load, M3	UNIVERSAL		70 mm	20 N	M3	45 mm	115 mm	1 Week FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,308

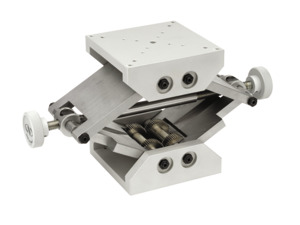

		M-EN86Lab Jack, Fast Travel, 105 mm Travel, 86 x 86 mm, 60 N, M3 and M4	UNIVERSAL		105 mm	60 N	M3 and M4	65 mm	170 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,440

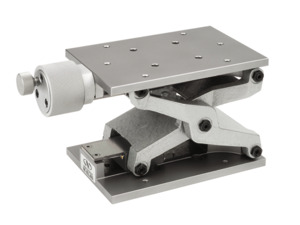

		M-EL80Lab Jack, Fast Travel, 60 mm Travel, 80 x 120 mm, 80 N Load, M4	UNIVERSAL		60 mm	80 N	M4	53 mm	113 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,021

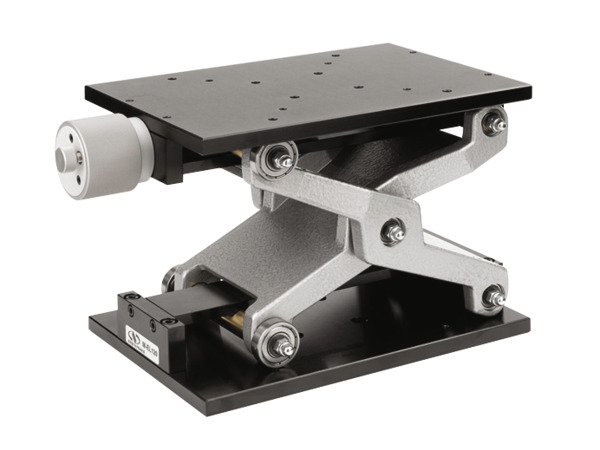

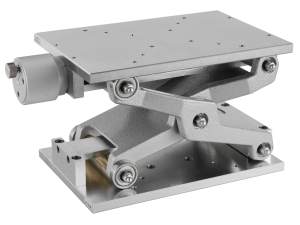

		M-EL120Lab Jack, Fast Travel, 120 mm Travel, 160 x 240 mm, 500 N, M5 and M6	UNIVERSAL		120 mm	500 N	M5 and M6	100 mm	220 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,823

Specifications

Models
Load Capacity	10 N	20 N	60 N	80 N	500 N
Travel Range	42 mm	70 mm	105 mm	60 mm	120 mm
Minimum Height	25 mm	45 mm	65 mm	53 mm	100 mm
Maximum Height	67 mm	115 mm	170 mm	113 mm	220 mm
Platform Size	40 x 40 mm	60 x 60 mm	86 x 86 mm	80 x 120 mm	160 x 240 mm
Thread Type	M3	M3	M3 and M4	M4	M5 and M6
Material	Alloy Steel	Alloy Steel	Alloy Steel	Alloy Steel	Alloy Steel
Bearings	Bushing	Bushing	Bushing	Bushing	Bushing
Drive Screw Pitch	0.7 mm	1.0 mm	1.25 mm	1.0 mm	1.5 mm
Sensitivity	1.9 µm	2.8 µm	3.5 µm	2.8 µm	4.2 µm
Deflection Under Load	0.005 mm/N	0.005 mm/N	0.005 mm/N	0.01 mm/N	0.01 mm/N
Parallelism	5 mrad over travel range	5 mrad over travel range	5 mrad over travel range	5 mrad over travel range	5 mrad over travel range
Weight	0.25 kg	0.9 kg	1.85 kg	1.79 kg	11.2 kg

Features

Precision Geared Mechanism for Additional Stability

The geared linkages on these lab jacks ensure controlled symmetrical movements which make the stage more stable over time.

Vertical Adjustment From Either Side of Jack

The EN series lab jacks have adjustment knobs on both sides for better accessibility no matter what orientation it is mounted.
