Lab Jack, Fast Travel, 70 mm Travel, 60 x 60 mm, 20 N Load, M3
Lab Jack, Fast Travel, 70 mm Travel, 60 x 60 mm, 20 N Load, M3
Model: M-EN60
Product Series Overview
Compact, Fast Travel Lab JacksThe M-EN60 Fast travel Lab Jack is a light-duty positioner with a 20 N load capacity. This lab jack is useful for 70 mm range positioning with high stability. For it's size, this lab jack has a significant amount of travel. Labjacks combine precision height adjustment in a stable design. When choosing a labjack, be sure to consider the vertical travel requirements, the load to be positioned, and the size of the lab jack. The upper and lower mounting plates have hole patterns that are compatible with many metric Newport products.
Vertical Adjustment From Either Side of Jack
The EN series lab jacks have adjustment knobs on both sides for better accessibility no matter what orientation it is mounted.
Resources & Downloads
2D Product Drawings
M-EN-S(92.5 kB, PDF)
Other
M-EL M-EN RoHS Certificate.pdf(116.9 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | TA-M6Q20-10Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-BDK-1Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-SK-M6ABlack Oxide Screw Kit, M6, Assortment, Qty 261 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | BB-LOptical Beam Block, Tool Holder, Magnetic-Base, Large | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-ECN-46Lab Jack, 50 mm Diameter Rotating Column, 41 to 59 mm Travel Range | |||||
 | 271Lab Jack, 44.5 mm Travel, 4.375 x 6.5 in. Platform, 200 lb., 1/4-20 and M6 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

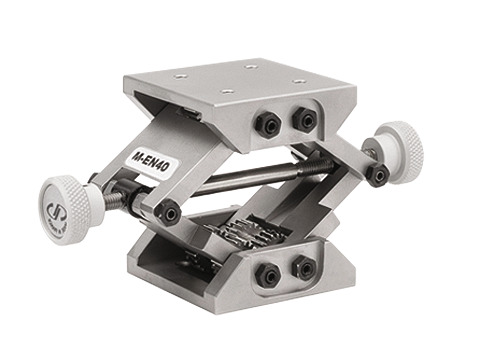

 | M-EN40Lab Jack, Fast Travel, 42 mm Travel, 40 x 40 mm, 10 N Load, M3 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
