Compare Model Drawings, CAD & Specs Travel Range Load Capacity Thread Type Minimum Height Maximum Height Availability Price
rotating column vertical lab jack model ecn-80
Lab Jack, 80 mm Diameter Rotating Column, 100 to 160 mm Travel Range
$635
In Stock
60 mm 45 N 1/4-20 100 mm 160 mm
In Stock
Lab Jack, 50 mm Diameter Rotating Column, 35 to 53 mm Travel Range
$480
In Stock
18 mm 45 N M6 35 mm 53 mm
In Stock
rotating column vertical lab jack model ecn-80
Lab Jack, 80 mm Diameter Rotating Column, 100 to 160 mm Travel Range
$635
In Stock
15 mm 22 N M4 and M6 35 mm 50 mm
In Stock
rotating column vertical lab jack model ecn-80
Lab Jack, 50 mm Diameter Rotating Plate, 50 to 65 mm Travel Range
$569
In Stock
15 mm 45 N M6 50 mm 65 mm
In Stock
rotating column vertical lab jack model ecn-80
Lab Jack, 80 mm Diameter Rotating Plate, 85 to 115 mm Travel Range
$736
In Stock
30 mm 45 N M4 and M6 85 mm 115 mm
In Stock

Specifications

Features

Threaded Column Height Adjustment

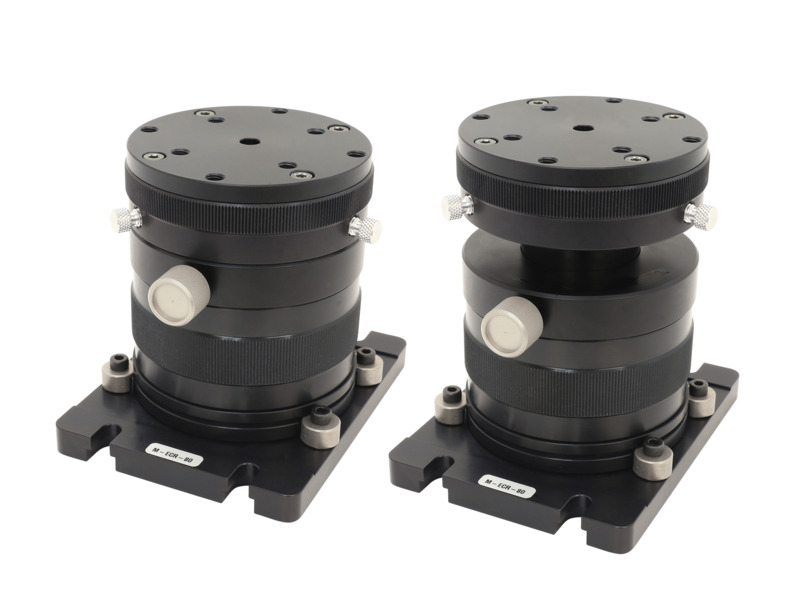

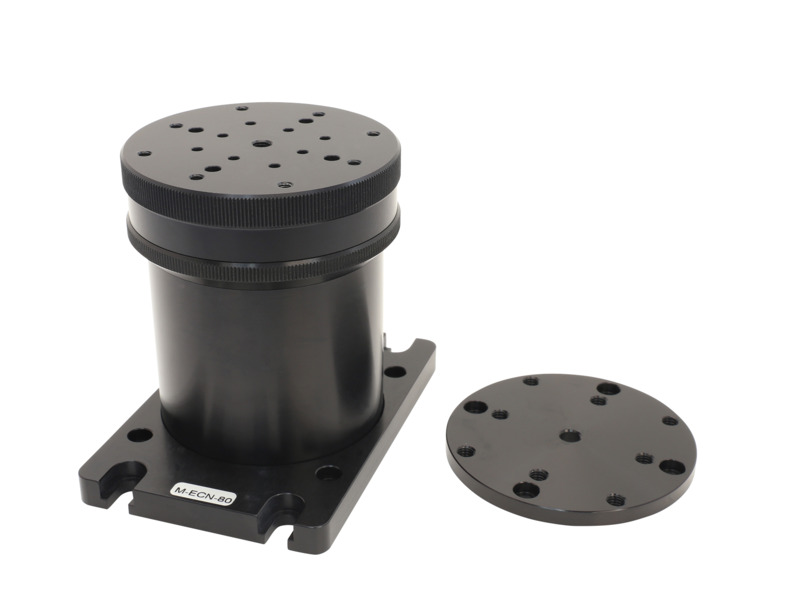

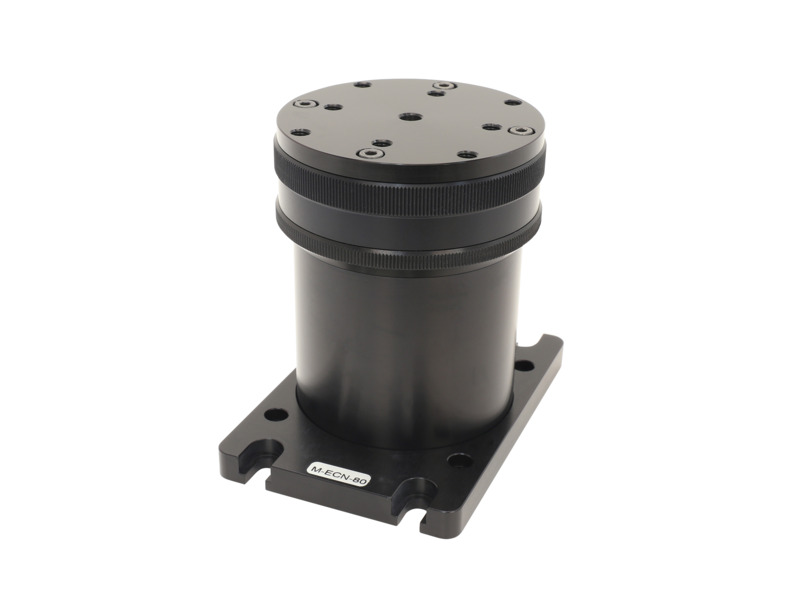

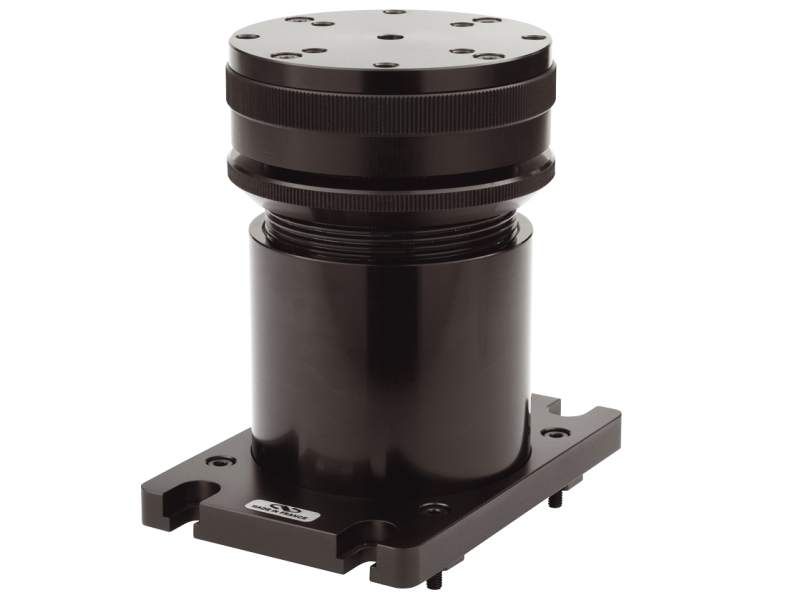

For the ECN Series, the height is adjusted by rotating the platform on a threaded column. Once at the desired height, the top plate can be oriented by rotating the entire column. A knurled ring securely locks the position of the platform. For the ECR Series, the height is adjusted by rotating a knurled ring and then locked with a thumbscrew. The top plate of the ECR-80 can be freely rotated and locked in position with three side screws.

Variety of Threaded and Slotted Mounting Holes

The top platform on each of these lab jacks has an array of mounting holes and the base plate has slotted holes for mounting to an optical table hole pattern.
