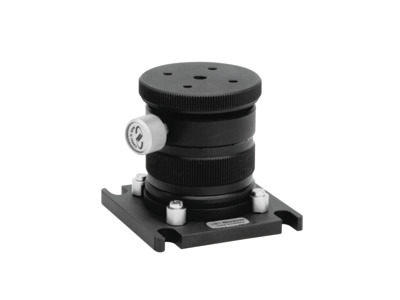

Lab Jack, 50 mm Diameter Rotating Plate, 56 to 71 mm Travel Range

Rotating Column Vertical Positioners

The M-ECR-46 Metric Lab Jack provides 56 to 71 mm range height adjustment for optical mounts and assemblies without rotation of the top platform. Height is adjusted by rotating a knurled ring and then locked with a thumbscrew. The top platform on this lab jack has an array of metric mounting holes and the base plate has slotted holes for mounting to an optical table hole pattern.

Specifications

Technical Specs

Travel Range
15 mm
Load Capacity
45 N
Thread Type
M6
Minimum Height
56 mm
Maximum Height
71 mm
Platform Size
Ø46 mm
Material
Aluminum

Bearings
Bushing
Axes of Travel
Z
Drive Location
Center drive
Weight
0.22 kg

Travel Range
15 mm
Load Capacity
45 N
Thread Type
M6
Minimum Height
56 mm
Maximum Height
71 mm
Platform Size
Ø46 mm
Material
Aluminum

Bearings
Bushing
Axes of Travel
Z
Drive Location
Center drive
Weight
0.22 kg

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

ECR-46-S_En(101.2 kB, PDF)
