Knob Adjust Variable Height Platforms
Knob Adjust Variable Height Platforms

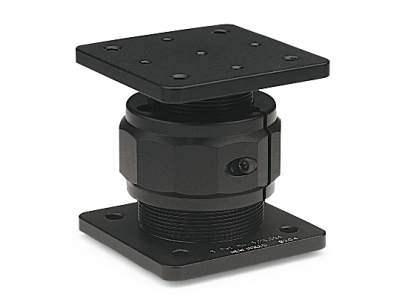

Our knob adjustable variable-height platforms feature a 2 to 4 inch height range with with 0.002 in. resolution. They lock solidly and can support up to 50 lbs.
- Ideal for vertical positioning of translation stages
- Exceptional load capacity and resolution
- 50 lb load capacity
- 8-32 and 1/4-20 or M4 and M6 mounting threads
- Top plate doesn't rotate during height adjustment See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9204Variable Height Platform, 2 in. Travel, 3 x 3 in. Platform, 220 N Load, 8-32 and 1/4-20 | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| 9204-MVariable Height Platform, 2 in. Travel, 3 x 3 in. Platform, 220 N Load, M4 and M6 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features
Knob Adjustable Platform
Each revolution of the adjustment knob corresponds to 0.25 in. of vertical travel. The platform can be adjusted to be between 2 and 4 inch height.
Locking Screw
A locking screw on the side of the adjustment knob allows the platform height to be securely fixed.
Universal Table Mounting
The base of the big lab jack has 1/4-20 (M6) through holes for mounting to metric or imperial optical tables or breadboards.
