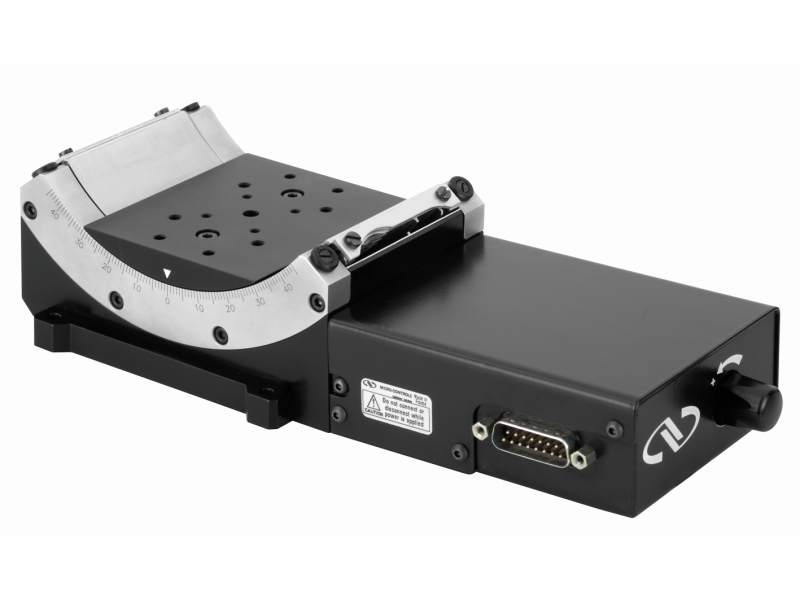

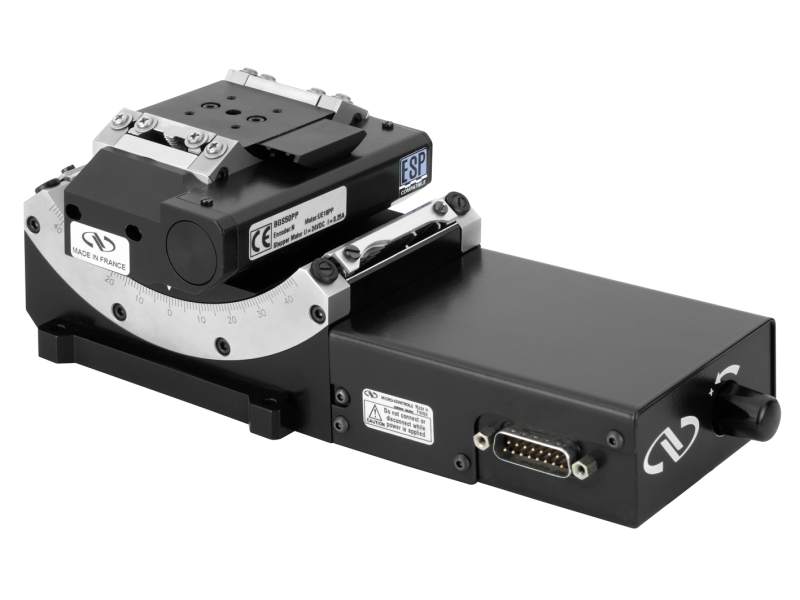

Motorized Goniometer, ±45° Travel Range, DC motor Drive, BGS80

Technical Specs

  • Centered Load Capacity
    60 N
  • Stage Type
    Motorized Goniometer
  • Angular Range
    -45 to +45°
  • Rotation Axis Height
    100 mm
  • Graduations
  • Thread Type
    1/4-20
  • Minimum Incremental Motion
    0.50 mdeg
  • Maximum Speed
    20°/s
  • Maximum Torque
    1 Nm
  • Wobble, Typical
    ±100 µrad
  • Accuracy, Typical
    ±25 mdeg
  • Uni-directional Repeatability (Typical)
    ±0.5 mdeg
  • Bi-directional Repeatability (Typical)
    ±1.5 mdeg
  • Transversal Compliance
    20 µrad/Nm
  • Origin
    Optical, centered
  • Origin Repeatability
    ±0.5 mdeg
  • Feedback
    Worm mounted rotary encoder with index pulse, 4,000 cts/rev
  • Encoder Resolution
    0.0005°
  • Limit Switches
    Mechanical, at ±45°
  • Connectors
    DB15 - Male
  • Cable Length
    3 m
  • Weight
    2.1 kg
  • MTBF
    20,000 h (25% load, 10% duty cycle)
  • Compliance
    RoHS 3, CE
