Aluminum Mirror, Float Glass, 25.4 mm, 5λ, 400-10,000 nm
Aluminum Mirror, Float Glass, 25.4 mm, 5λ, 400-10,000 nm
Model: 10J00ER.3
Product Series Overview

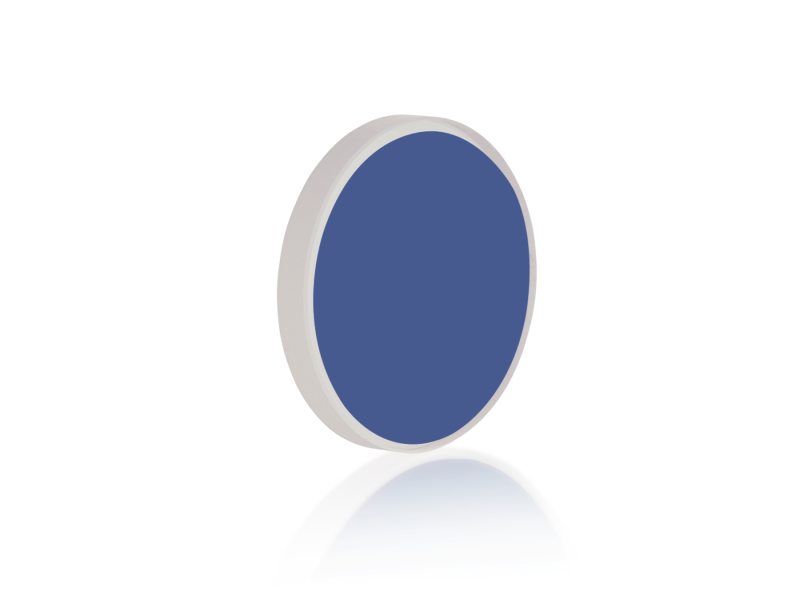

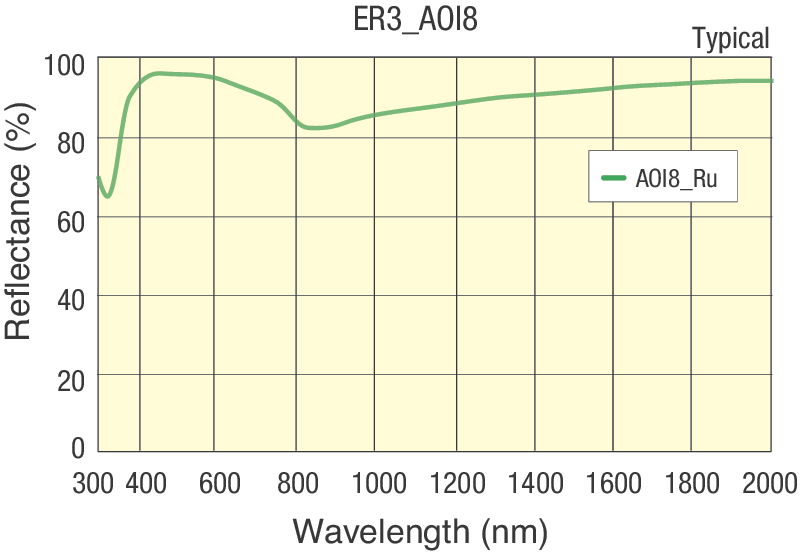

Lowest Cost Float Glass Metallic MirrorsThe 10J00ER.3 is a Utility Broadband Aluminum Mirror optimized for 400-10,000 nm with a 25.4 mm (1.0 inch) diameter and a 3.17 mm thickness. These mirrors are excellent economical broadband reflectors. The front surface is coated with our ER.3 dielectric-enhanced aluminum coating. The 10J00ER.3 has an average reflectivity greater than 90% from 400-2000 nm. These mirrors can be used as a front or back surface reflector. A removable plastic sheet protects the mirror surface during shipment and handling, and can be left on if used as a back surface reflector.
Resources & Downloads
3D Product Models
Other
10J00ER.3 RoHS Certificate(263.6 kB, PDF) 10J00ER.3_ROHS2-2021.pdf(279.7 kB, PDF)
2D Product Drawings
10J00ER.3 and 20J00ER.3 Drawing(77.1 kB, PDF) 10J00ER.3 Drawing(58.6 kB, PDF)
