NIR Antireflection Coated Molded Glass Aspheric Lenses

Products
Features
Mounting Options
Resources
Contact Us

Overview

These 600-1050 nm antireflection coated Geltech® molded glass aspheric lenses are a very economic choice for collimating or focusing light at high magnification. They are made from low dispersion materials and are suitable for applications include fiber coupling, collimating laser diodes, and laser scanning.

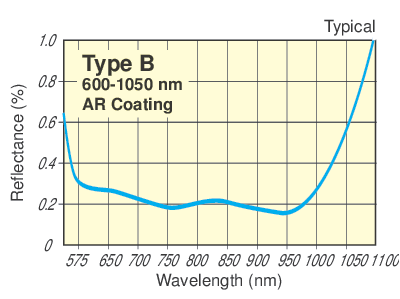

600-1050 nm NIR antireflection coating
Aspheric surface reduces spherical aberration
Economical choice for collimating or focusing light

See All Features

Products

Showing 20 of 20 total products

Compatibility:

Show entries

Search:

Compare	Model	Lens Shape	Diameter	Effective Focal Length (EFL)	Numerical Aperture	Availability	Price	Brand
KGA022-B Aspheric Lens, Molded Glass, 5.42 mm, 4.47 mm FL, 0.47 NA, 600-1050 nm $121.00 In Stock	KGA022-B Aspheric Lens, Molded Glass, 5.42 mm, 4.47 mm FL, 0.47 NA, 600-1050 nm	Bi-Convex Aspheric	5.42 mm	4.47 mm	0.47	In Stock	$121.00	Newport
KGA080-B Aspheric Lens, Molded Glass, 6.325 mm, 3.89 mm FL, 0.55 NA, 600-1050 nm $107.00 Contact Us	KGA080-B Aspheric Lens, Molded Glass, 6.325 mm, 3.89 mm FL, 0.55 NA, 600-1050 nm	Bi-Convex Aspheric	6.35 mm	3.89 mm	0.55	Contact Us	$107.00	Newport
KGA110-B Aspheric Lens, Molded Glass, 7.20 mm, 6.24 mm FL, 0.40 NA, 600-1050 nm $107.00 In Stock	KGA110-B Aspheric Lens, Molded Glass, 7.20 mm, 6.24 mm FL, 0.40 NA, 600-1050 nm	Plano-Convex Aspheric	7.2 mm	6.24 mm	0.4	In Stock	$107.00	Newport
KGA150-B Aspheric Lens, Molded Glass, 3.00 mm, 2.00 mm FL, 0.47 NA, 600-1050 nm $107.00 In Stock	KGA150-B Aspheric Lens, Molded Glass, 3.00 mm, 2.00 mm FL, 0.47 NA, 600-1050 nm	Bi-Convex Aspheric	3.0 mm	2.00 mm	0.5	In Stock	$107.00	Newport
KGA160-B Aspheric Lens, Molded Glass, 4.00 mm, 2.72 mm FL, 0.55 NA, 600-1050 nm $107.00 In Stock	KGA160-B Aspheric Lens, Molded Glass, 4.00 mm, 2.72 mm FL, 0.55 NA, 600-1050 nm	Plano-Convex Aspheric	4.0 mm	2.72 mm	0.55	In Stock	$107.00	Newport
KGA170-B Aspheric Lens, Molded Glass, 4.70 mm, 6.16 mm FL, 0.30 NA, 600-1050 nm $107.00 In Stock	KGA170-B Aspheric Lens, Molded Glass, 4.70 mm, 6.16 mm FL, 0.30 NA, 600-1050 nm	Bi-Convex Aspheric	4.7 mm	6.16 mm	0.3	In Stock	$107.00	Newport
KGA220-B Aspheric Lens, Molded Glass, 7.20 mm, 11.0 mm FL, 0.25 NA, 600-1050 nm $107.00 In Stock	KGA220-B Aspheric Lens, Molded Glass, 7.20 mm, 11.0 mm FL, 0.25 NA, 600-1050 nm	Plano-Convex Aspheric	7.2 mm	11.0 mm	0.25	In Stock	$107.00	Newport
KGA230-B Aspheric Lens, Molded Glass, 6.325 mm, 4.51 mm FL, 0.55 NA, 600-1050 nm $107.00 In Stock	KGA230-B Aspheric Lens, Molded Glass, 6.325 mm, 4.51 mm FL, 0.55 NA, 600-1050 nm	Plano-Convex Aspheric	6.35 mm	4.51 mm	0.55	In Stock	$107.00	Newport

Showing 1 to 08 of 20 entries

Previous1 2 3Next

Show All

Features

Advantage of Aspheric Lenses

In applications that require large acceptance angles, such as light gathering for illumination, spherical lenses are unsuitable due to spherical aberration, or the effect of refractive power of a spherical surface becoming greater with increasing aperture. Aspheric lenses maintain constant focal length or very high NA, avoiding the need for multiple elements to correct spherical aberration. This simplifies system design by reducing weight and component count. It also results in less transmission loss, and less ghosting due to having fewer surfaces. The primary drawback of aspheric lenses is off-axis performance is poor. This is not a problem for coupling to and from optical fibers or collimating light sources, but aspheric lenses are not usable over a wide field of view.

Molded Glass Aspheric Construction

These Geltech lenses are made from Corning C0550 glass, which features low dispersion (Vd=50.40). Typical applications include fiber coupling, laser diodes, medical lasers, optical data storage, and barcode scanners. Mounted versions with a 304 stainless steel holder are also available.

We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.

Note: besides the diameter, please check the Edge Thickness (T_e) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter	A-Line™ Lens Mounts	LT Series Lens Tubes	LP Series Lens Positioners	Optics Cage Plus Series
