Aspheric Lens, Molded Glass, 4.70 mm, 2.95 mm FL, 0.53 NA, 600-1050 nm
Aspheric Lens, Molded Glass, 4.70 mm, 2.95 mm FL, 0.53 NA, 600-1050 nm
Model: KGA440-B
In Stock
Product Series Overview

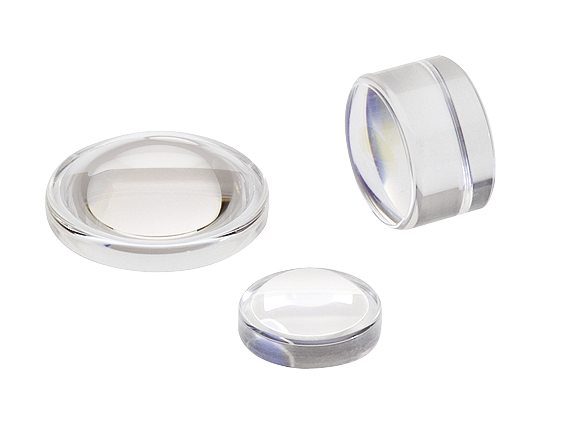

NIR Molded Glass Aspheric LensesThe KGA440-B Geltech Molded Glass Aspheric Lens is a very economic choice for collimating or focusing light at high magnification. It is made from CDGM D-ZLaF52LA glass, which features low dispersion (Vd=40.99). Typical applications include fiber coupling, laser diodes, medical lasers, optical data storage, and barcode scanners. This 4.70 mm diameter lens has an effective focal length of 2.95 mm and a 0.53 NA. It has a NIR anti-reflective coating for 600-1050 nm.
Resources & Downloads
2D Product Drawings
KGA440.pdf(451.3 kB, PDF)
Other
KGA440-B RoHS Certificate(265 kB, PDF) KGA440-B_ROHS2-2021.pdf(278.9 kB, PDF)
