Visible Antireflection Coated Molded Glass Aspheric Lenses

Products
Features
Mounting Options
Contact Us

Overview

These 350-700 nm antireflection coated Geltech® molded glass aspheric lenses are a very economic choice for collimating or focusing light at high magnification. They are made from low dispersion materials and are suitable for applications include fiber coupling, collimating laser diodes, and laser scanning.

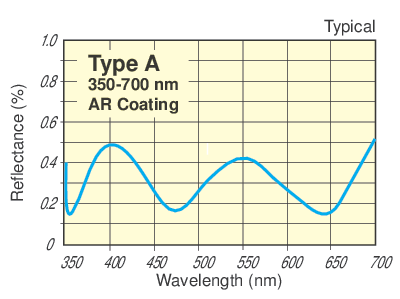

350-700 nm visible antireflection coating
Aspheric surface reduces spherical aberration
Economical choice for collimating or focusing light

See All Features

Products

Compare	Model	Compatibility	rankScore	Lens Shape	Diameter	Effective Focal Length (EFL)	Numerical Aperture	Availability	Price	Brand
KGA022-A Aspheric Lens, Molded Glass, 5.42 mm, 4.47 mm FL, 0.47 NA, 350-700 nm $132 In Stock	KGA022-A Aspheric Lens, Molded Glass, 5.42 mm, 4.47 mm FL, 0.47 NA, 350-700 nm	UNIVERSAL	1.0	Bi-Convex Aspheric	5.42 mm	4.47 mm	0.47	In Stock	$132	Newport
KGA110-A Aspheric Lens, Molded Glass, 7.20 mm, 6.24 mm FL, 0.40 NA, 350-700 nm $118 In Stock	KGA110-A Aspheric Lens, Molded Glass, 7.20 mm, 6.24 mm FL, 0.40 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	7.2 mm	6.24 mm	0.4	In Stock	$118	Newport
KGA150-A Aspheric Lens, Molded Glass, 3.00 mm, 2.00 mm FL, 0.47 NA, 350-700 nm $123 In Stock	KGA150-A Aspheric Lens, Molded Glass, 3.00 mm, 2.00 mm FL, 0.47 NA, 350-700 nm	UNIVERSAL	1.0	Bi-Convex Aspheric	3.0 mm	2.00 mm	0.5	In Stock	$123	Newport
KGA160-A Aspheric Lens, Molded Glass, 4.00 mm, 2.72 mm FL, 0.55 NA, 350-700 nm $104 In Stock	KGA160-A Aspheric Lens, Molded Glass, 4.00 mm, 2.72 mm FL, 0.55 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	4.0 mm	2.72 mm	0.55	In Stock	$104	Newport
KGA170-A Aspheric Lens, Molded Glass, 4.70 mm, 6.16 mm FL, 0.30 NA, 350-700 nm $104 Contact Us	KGA170-A Aspheric Lens, Molded Glass, 4.70 mm, 6.16 mm FL, 0.30 NA, 350-700 nm	UNIVERSAL	1.0	Bi-Convex Aspheric	4.7 mm	6.16 mm	0.3	Contact Us	$104	Newport
KGA220-A Aspheric Lens, Molded Glass, 7.20 mm, 11.0 mm FL, 0.25 NA, 350-700 nm $104 In Stock	KGA220-A Aspheric Lens, Molded Glass, 7.20 mm, 11.0 mm FL, 0.25 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	7.2 mm	11.0 mm	0.25	In Stock	$104	Newport
KGA230-A Aspheric Lens, Molded Glass, 6.325 mm, 4.51 mm FL, 0.55 NA, 350-700 nm $113 In Stock	KGA230-A Aspheric Lens, Molded Glass, 6.325 mm, 4.51 mm FL, 0.55 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	6.35 mm	4.51 mm	0.55	In Stock	$113	Newport
KGA240-A Aspheric Lens, Molded Glass, 9.94 mm, 8.00 mm FL, 0.50 NA, 350-700 nm $123 In Stock	KGA240-A Aspheric Lens, Molded Glass, 9.94 mm, 8.00 mm FL, 0.50 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	9.9 mm	8.0 mm	0.5	In Stock	$123	Newport
KGA260-A Aspheric Lens, Molded Glass, 6.50 mm, 15.29 mm FL, 0.16 NA, 350-700 nm $104 In Stock	KGA260-A Aspheric Lens, Molded Glass, 6.50 mm, 15.29 mm FL, 0.16 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	6.5 mm	15.29 mm	0.16	In Stock	$104	Newport
KGA280-A Aspheric Lens, Molded Glass, 6.50 mm, 18.40 mm FL, 0.15 NA, 350-700 nm $104 In Stock	KGA280-A Aspheric Lens, Molded Glass, 6.50 mm, 18.40 mm FL, 0.15 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	6.5 mm	18.4 mm	0.15	In Stock	$104	Newport
KGA330-A Aspheric Lens, Molded Glass, 6.325 mm, 3.10 mm FL, 0.68 NA, 350-700 nm $104 In Stock	KGA330-A Aspheric Lens, Molded Glass, 6.325 mm, 3.10 mm FL, 0.68 NA, 350-700 nm	UNIVERSAL	1.0	Bi-Convex Aspheric	6.35 mm	3.10 mm	0.68	In Stock	$104	Newport
KGA340-A Aspheric Lens, Molded Glass, 6.325 mm, 4.03 mm FL, 0.62 NA, 350-700 nm $123 In Stock	KGA340-A Aspheric Lens, Molded Glass, 6.325 mm, 4.03 mm FL, 0.62 NA, 350-700 nm	UNIVERSAL	1.0	Bi-Convex Aspheric	6.35 mm	4.03 mm	0.64	In Stock	$123	Newport
KGA350-A Aspheric Lens, Molded Glass, 4.70 mm, 4.50 mm FL, 0.42 NA, 350-700 nm $104 In Stock	KGA350-A Aspheric Lens, Molded Glass, 4.70 mm, 4.50 mm FL, 0.42 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	4.7 mm	4.50 mm	0.42	In Stock	$104	Newport
KGA392-A Aspheric Lens, Molded Glass, 4.00 mm, 2.75 mm FL, 0.64 NA, 350-700 nm $104 In Stock	KGA392-A Aspheric Lens, Molded Glass, 4.00 mm, 2.75 mm FL, 0.64 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	4.0 mm	2.75 mm	0.64	In Stock	$104	Newport
KGA430-A Aspheric Lens, Molded Glass, 2.00 mm, 5.00 mm FL, 0.15 NA, 350-700 nm $113 In Stock	KGA430-A Aspheric Lens, Molded Glass, 2.00 mm, 5.00 mm FL, 0.15 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	2.0 mm	5.00 mm	0.15	In Stock	$113	Newport
KGA440-A Aspheric Lens, Molded Glass, 4.70 mm, 2.95 mm FL, 0.53 NA, 350-700 nm $123 In Stock	KGA440-A Aspheric Lens, Molded Glass, 4.70 mm, 2.95 mm FL, 0.53 NA, 350-700 nm	UNIVERSAL	1.0	Bi-Convex Aspheric	4.7 mm	2.95 mm	0.53	In Stock	$123	Newport
KGA560-A Aspheric Lens, Molded Glass, 6.325 mm, 13.86 mm FL, 0.18 NA, 350-700 nm $104 In Stock	KGA560-A Aspheric Lens, Molded Glass, 6.325 mm, 13.86 mm FL, 0.18 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	6.35 mm	13.86 mm	0.18	In Stock	$104	Newport
KGA660-A Aspheric Lens, Molded Glass, 4.00 mm, 2.97 mm FL, 0.60 NA, 350-700 nm $113 In Stock	KGA660-A Aspheric Lens, Molded Glass, 4.00 mm, 2.97 mm FL, 0.60 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	4.0 mm	2.97 mm	0.6	In Stock	$113	Newport
KGA671-A Aspheric Lens, Molded Glass, 6.325 mm, 4.00 mm FL, 0.60 NA, 350-700 nm $146 In Stock	KGA671-A Aspheric Lens, Molded Glass, 6.325 mm, 4.00 mm FL, 0.60 NA, 350-700 nm	UNIVERSAL	1.0	Plano-Convex Aspheric	6.35 mm	4.00 mm	0.6	In Stock	$146	Newport

Show All

Specifications

Lens Type

Molded Glass Aspheric
Antireflection Coating

350-700 nm

Coating Code

-A
Surface Quality

40-20 scratch-dig

Specifications

Lens Type

Molded Glass Aspheric
Antireflection Coating

350-700 nm

Coating Code

-A
Surface Quality

40-20 scratch-dig

Features

Advantage of Aspheric Lenses

In applications that require large acceptance angles, such as light gathering for illumination, spherical lenses are unsuitable due to spherical aberration, or the effect of refractive power of a spherical surface becoming greater with increasing aperture. Aspheric lenses maintain constant focal length or very high NA, avoiding the need for multiple elements to correct spherical aberration. This simplifies system design by reducing weight and component count. It also results in less transmission loss, and less ghosting due to having fewer surfaces. The primary drawback of aspheric lenses is off-axis performance is poor. This is not a problem for coupling to and from optical fibers or collimating light sources, but aspheric lenses are not usable over a wide field of view.

Molded Glass Aspheric Construction

These Geltech lenses are made from Corning C0550 glass, which features low dispersion (Vd=50.40). Typical applications include fiber coupling, laser diodes, medical lasers, optical data storage, and barcode scanners. Mounted versions with a 304 stainless steel holder are also available.

Features

Advantage of Aspheric Lenses

Molded Glass Aspheric Construction

Mounting Options

We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.

Note: besides the diameter, please check the Edge Thickness (T_e) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter	A-Line™ Lens Mounts	LT Series Lens Tubes	LP Series Lens Positioners	Optics Cage Plus Series
76.2 mm	(M-) LH-3A	N/A	N/A	N/A
50.8 mm	(M-) LH-2A LH-2N	LT20-05 LT20-10 LT20-20 LT20-30	LP-2A LP-2A-XY LP-2A-XYZ	N/A
38.1 mm	(M-) LH-1.5A	LT20 lens tube with LH-2R1.5 adapter	LP-2 lens positioner with LPLH-1.5T adapter	N/A
25.4 mm	(M-) LH-1A LH-1N LH-1XY LH-1TZ-A LH-1TZ	LT10-05 LT10-10 LT10-20 LT10-30	LP-1A LP-1A-XY LP-1A-XYZ	OC1-LH1-S OC1-LH1 OC1-LH1-TZ OC1-LH1-XY OC1-LH1-XYA OC1-LH1-XYC OC1-LH1-XYZ
12.7 mm	(M-) LH-0.5A LH-05N	LT05-05 LT05-10	LP-05A LP-05A-XY LP-05A-XYZ	N/A
6.35 mm	LH-05DB with LH-50R25 adapter	LT05 lens tube with LH-50R25 adapter	LP-05 lens positioner with LPLH-25T adapter	N/A

For non-standard sizes not listed above, check out our variable size lens mounts.

Mounting Options

Note: besides the diameter, please check the Edge Thickness (T_e) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter	A-Line™ Lens Mounts	LT Series Lens Tubes	LP Series Lens Positioners	Optics Cage Plus Series
76.2 mm	(M-) LH-3A	N/A	N/A	N/A
50.8 mm	(M-) LH-2A LH-2N	LT20-05 LT20-10 LT20-20 LT20-30	LP-2A LP-2A-XY LP-2A-XYZ	N/A
38.1 mm	(M-) LH-1.5A	LT20 lens tube with LH-2R1.5 adapter	LP-2 lens positioner with LPLH-1.5T adapter	N/A
25.4 mm	(M-) LH-1A LH-1N LH-1XY LH-1TZ-A LH-1TZ	LT10-05 LT10-10 LT10-20 LT10-30	LP-1A LP-1A-XY LP-1A-XYZ	OC1-LH1-S OC1-LH1 OC1-LH1-TZ OC1-LH1-XY OC1-LH1-XYA OC1-LH1-XYC OC1-LH1-XYZ
12.7 mm	(M-) LH-0.5A LH-05N	LT05-05 LT05-10	LP-05A LP-05A-XY LP-05A-XYZ	N/A
6.35 mm	LH-05DB with LH-50R25 adapter	LT05 lens tube with LH-50R25 adapter	LP-05 lens positioner with LPLH-25T adapter	N/A

For non-standard sizes not listed above, check out our variable size lens mounts.
