Integrating Sphere Port Plugs

Products
Features
Resources
Contact Us

Overview

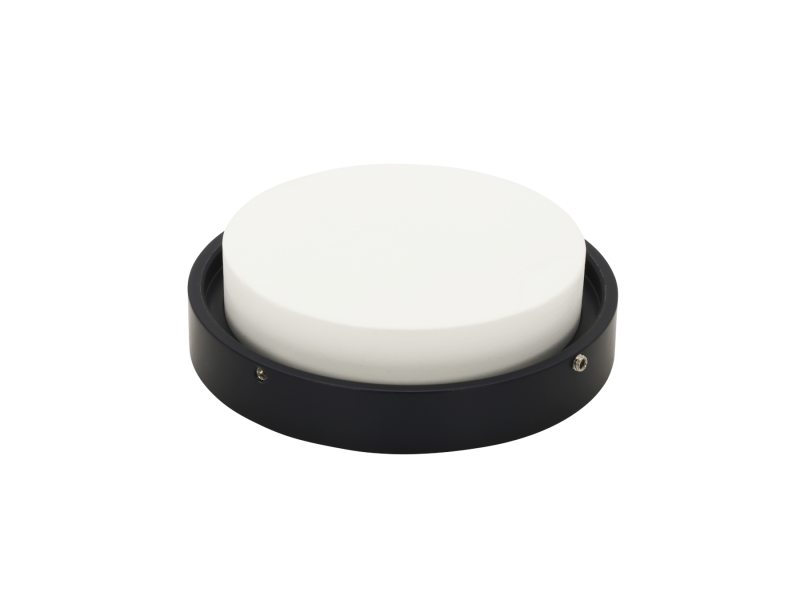

Integrating sphere port plugs are used to block an unused port on the sphere. They are offered in PTFE (Spectralon), barium sulfate (Spectraflect), diffuse gold, or flat black for various port sizes.

Blocks unused integrating sphere ports
PTFE, barium sulfate, diffuse gold, or flat black
0.5, 1, 1.5 and 2.5 inch sizes

See All Features

Products

Showing 18 of 18 total products

Compatibility:

Show entries

Search:

Compare	Model		Port Size	Sphere Material	Availability	Price	Brand

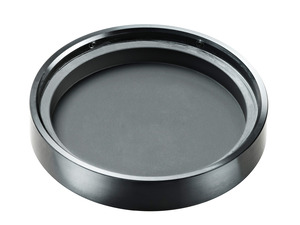

7Z08281N 819M-CV-2.5 Flat Black Coated Protective Cover, 2.5" Port $253.00 Contact Us	7Z08281N 819M-CV-2.5 Flat Black Coated Protective Cover, 2.5" Port	0.0	2.5 in.	Flat Black	Contact Us	$253.00	Newport

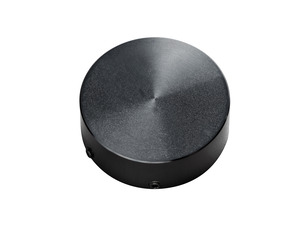

7Z08282N 819M-CV-1.0 Flat Black Coated Protective Cover, 1.0" Port $182.00 In Stock	7Z08282N 819M-CV-1.0 Flat Black Coated Protective Cover, 1.0" Port	0.0	1.0 in.	Flat Black	In Stock	$182.00	Newport
7Z08359N 819M-PP-1.5 Port Plug, 1.5 in. Port, Spectralon, 819C and 819D Spheres $205.00 Contact Us	7Z08359N 819M-PP-1.5 Port Plug, 1.5 in. Port, Spectralon, 819C and 819D Spheres	0.0	1.5 in.	PTFE	Contact Us	$205.00	Newport
7Z08360N 819M-PP-0.5 Port Plug, 0.5 in. Port, Spectralon, 819C and 819D Spheres $182.00 In Stock	7Z08360N 819M-PP-0.5 Port Plug, 0.5 in. Port, Spectralon, 819C and 819D Spheres	0.0	0.5 in.	PTFE	In Stock	$182.00	Newport
7Z08370N 819M-CV-1.5 Flat Black Coated Protective Cover, 1.5" Port $215.00 In Stock	7Z08370N 819M-CV-1.5 Flat Black Coated Protective Cover, 1.5" Port	0.0	1.5 in.	Flat Black	In Stock	$215.00	Newport

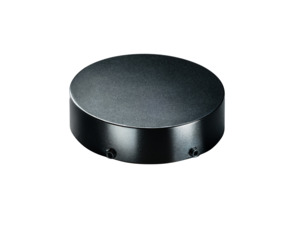

7Z08371N 819M-CV-0.5 Flat Black Coated Protective Cover, 0.5" Port $162.00 3 Weeks	7Z08371N 819M-CV-0.5 Flat Black Coated Protective Cover, 0.5" Port	0.0	0.5 in.	Flat Black	3 Weeks	$162.00	Newport

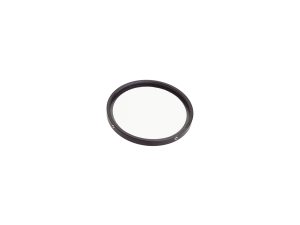

819M-PP-SF-0.5 Port Plug, 0.5 in. Port, Spectraflect, 819C and 819D Spheres $186.00 In Stock	819M-PP-SF-0.5 Port Plug, 0.5 in. Port, Spectraflect, 819C and 819D Spheres	1.0	0.5 in.	Barium Sulfate	In Stock	$186.00	Newport

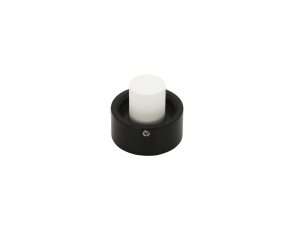

819M-PP-SL-0.5 Port Plug, 0.5 in. Port, Spectralon, 819C and 819D Spheres $187.00 In Stock	819M-PP-SL-0.5 Port Plug, 0.5 in. Port, Spectralon, 819C and 819D Spheres	2.0	0.5 in.	PTFE	In Stock	$187.00	Newport

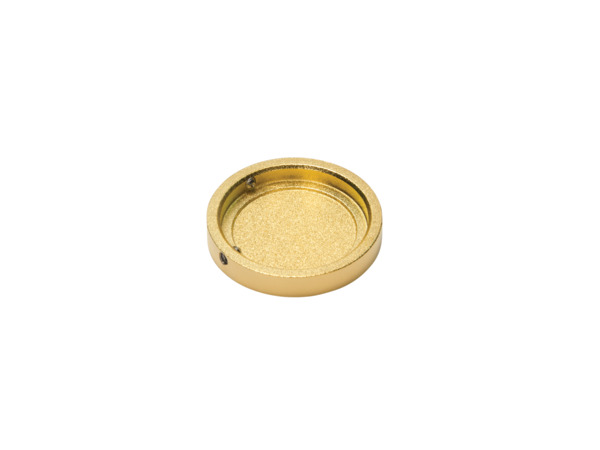

819M-PP-GL-0.5 Port Plug, 0.5 in. Port, Diffuse Gold, 819C and 819D Spheres $408.00 Contact Us	819M-PP-GL-0.5 Port Plug, 0.5 in. Port, Diffuse Gold, 819C and 819D Spheres	3.0	0.5 in.	Diffuse Gold	Contact Us	$408.00	Newport

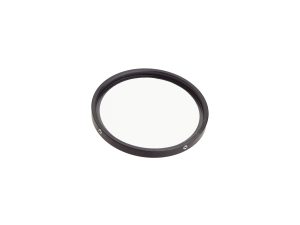

819M-PP-SF-1.0 Port Plug, 1.0 in. Port, Spectraflect, 819C and 819D Spheres $211.00 In Stock	819M-PP-SF-1.0 Port Plug, 1.0 in. Port, Spectraflect, 819C and 819D Spheres	4.0	1.0 in.	Barium Sulfate	In Stock	$211.00	Newport
819M-PP-1.0 Port Plug, 1.0 in. Port, Spectralon, 819C and 819D Spheres $318.00 In Stock	819M-PP-1.0 Port Plug, 1.0 in. Port, Spectralon, 819C and 819D Spheres	5.0	1.0 in.	PTFE	In Stock	$318.00	Newport
819M-PP-GL-1.0 Port Plug, 1.0 in. Port, Diffuse Gold, 819C and 819D Spheres $481.00 2 Weeks	819M-PP-GL-1.0 Port Plug, 1.0 in. Port, Diffuse Gold, 819C and 819D Spheres	6.0	1.0 in.	Diffuse Gold	2 Weeks	$481.00	Newport
819M-PP-SF-1.5 Port Plug, 1.5 in. Port, Spectraflect, 819C and 819D Spheres $216.00 In Stock	819M-PP-SF-1.5 Port Plug, 1.5 in. Port, Spectraflect, 819C and 819D Spheres	7.0	1.5 in.	Barium Sulfate	In Stock	$216.00	Newport

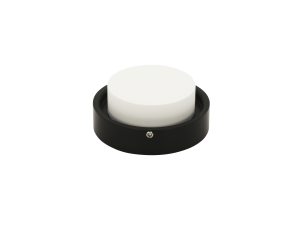

819M-PP-SL-1.5 Port Plug, 1.5 in. Port, Spectralon, 819C and 819D Spheres $211.00 Contact Us	819M-PP-SL-1.5 Port Plug, 1.5 in. Port, Spectralon, 819C and 819D Spheres	8.0	1.5 in.	PTFE	Contact Us	$211.00	Newport
819M-PP-GL-1.5 Port Plug, 1.5 in. Port, Diffuse Gold, 819C and 819D Spheres $672.00 4 Weeks	819M-PP-GL-1.5 Port Plug, 1.5 in. Port, Diffuse Gold, 819C and 819D Spheres	9.0	1.5 in.	Diffuse Gold	4 Weeks	$672.00	Newport

Showing 1 to 015 of 18 entries

Previous1 2Next

Show All

Features

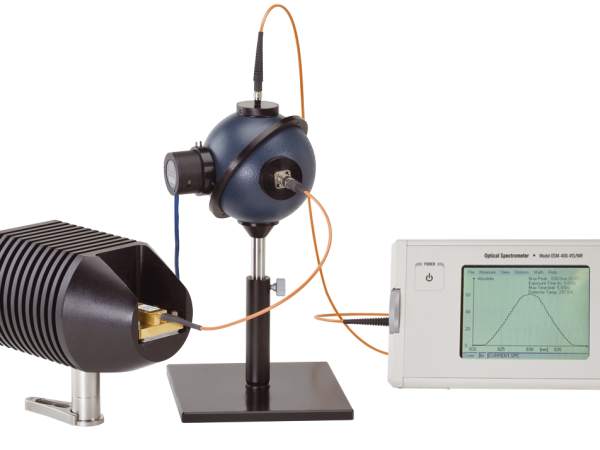

Customize Your Integrating Sphere

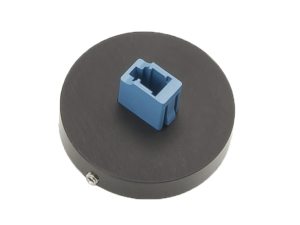

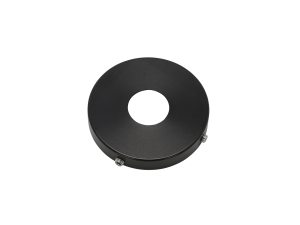

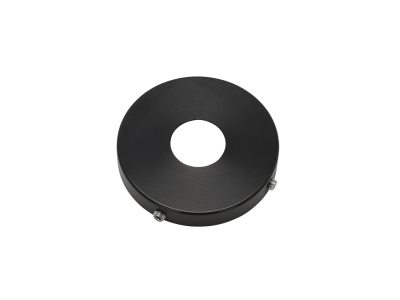

Complete your integrating sphere set-up with a wide variety of accessories. Our accessories include port plugs, port reducers, port frame reducers, fiber optic adapters, detector adapters, C-mount or SM1 type thread adapters, mounting assemblies, and a 0.5 inch to 1.0 inch port expander.

Why Use a Port Plug?

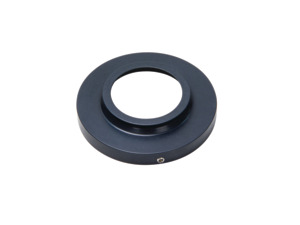

Integrating sphere port plugs are used to block an unused port on the sphere. They are offered in PTFE (Spectralon), barium sulfate (Spectraflect), diffuse gold, or flat black for various port sizes, so that the inside coating/material matches that of the integrating sphere. It not only prevents ambient light and dust from entering inside, but also improves the throughput and integration property of the sphere. In case the right size port plug is not available, consider first mounting a port frame reducer and then a right size port plug.
