Compare Model Drawings, CAD & Specs Port Size Sphere Material Availability Price
Port Frame Expander, 0.5 to 1.0 in. Port, Flat Black, 819C and 819D Spheres
$115
In Stock
0.5 in. Flat Black
In Stock
Port Frame Reducer, 1.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
$359.47
In Stock
1.5 in. Flat Black
In Stock
Port Frame Reducer, 1.5 to 1 in. Port, Diffuse Gold, 819C and 819D Spheres
$467.62
In Stock
1.5 in. Diffuse Gold
In Stock
Port Frame Reducer, 1.5 to 1 in. Port, Spectraflect, 819C and 819D Spheres
$411
In Stock
1.5 in. Spectraflect
In Stock
Port Frame Reducer, 2.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
$363.59
In Stock
2.5 in. Flat Black
In Stock
Port Frame Reducer, 2.5 to 1 in. Port, Diffuse Gold, 819C and 819D Spheres
$546.93
In Stock
2.5 in. Diffuse Gold
In Stock
Port Frame Reducer, 2.5 to 1 in. Port, Spectraflect, 819C and 819D Spheres
$368
3 Weeks
2.5 in. Spectraflect
3 Weeks

Features

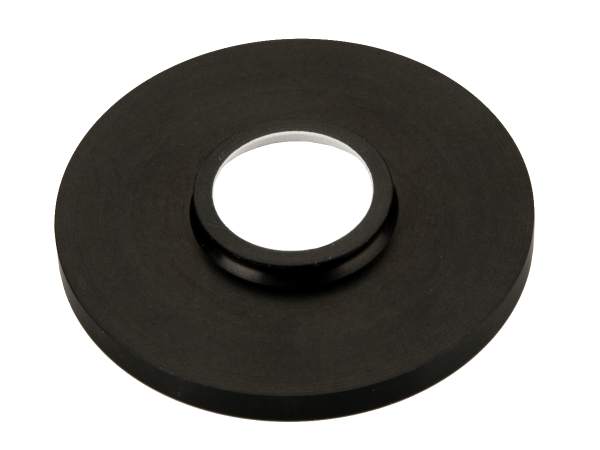

What is a Port Frame Reducer?

A port frame reducer is a fixture that mounts onto a port frame of an integrating sphere, effectively reducing the frame and the port size to a specified diameter. Unlike a port reducer, a port frame reducer has a flange so that an additional sphere accessory can be mounted. Currently, barium sulfate (spectraflect), and flat black coated port frame reducers are available. Use them for for both the barium sulfate spheres and the PTFE (spectralon) based integrating spheres.

Flat Black Coating

These port frame size adapters are available not only in barium sulfate, or diffused gold, but also in Flat Black type coating in some cases. Flat Black type highly absorbs light and is used to imitate an open port, which does not have any reflection, and reduces introduction of ambient light into the sphere.

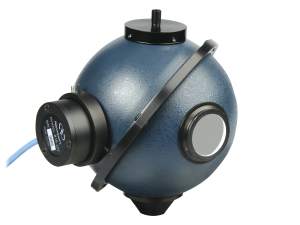

Customize Your Integrating Sphere

Complete your integrating sphere set-up with a wide variety of accessories. Our accessories include port plugs, port reducers, port frame reducers, fiber optic adapters, detector adapters, C-mount of SM1 type thread adapters, mounting assemblies, and a 0.5 inch to 1.0 inch port expander.
