Port Frame Expander, 0.5 to 1.0 in. Port, Flat Black, 819C and 819D Spheres

Port Frame Size Adapters for Integrating Spheres

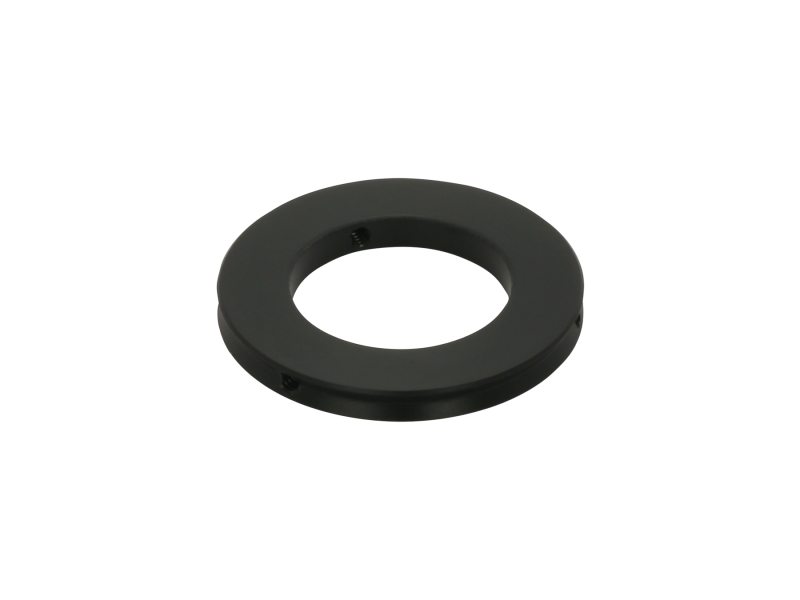

The 819-PC-0.5 Port Flange Diameter Expander is used to expand a 1/2 inch port of an integrating sphere to 1 inch, so that 1 inch size sphere accessories can be mounted. Comes with an Allen wrench and set screws.

Specifications

Technical Specs

Type
Port Frame Expander
Detector Type
819C & 819D Series
Sphere Material
Flat Black
Port Size
0.5 in.

Clear Aperture
0.5 in.
Material
Black anodized aluminum

Type
Port Frame Expander
Detector Type
819C & 819D Series
Sphere Material
Flat Black
Port Size
0.5 in.

Clear Aperture
0.5 in.
Material
Black anodized aluminum
