Port Frame Reducer, 2.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
Port Frame Reducer, 2.5 to 1 in. Port, Flat Black, 819C and 819D Spheres
Model: 819M-PFR-1.0-2.5B
Product Series Overview

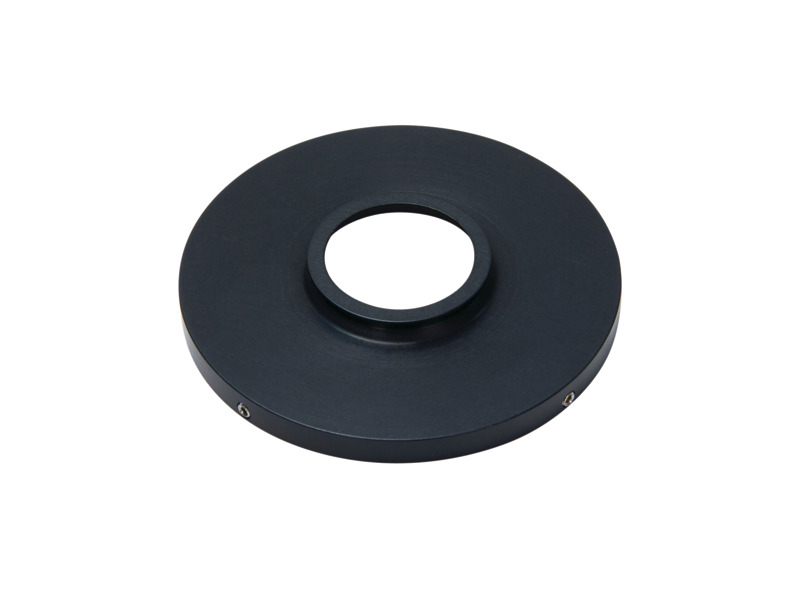

Port Frame Size Adapters for Integrating SpheresThe 819M-PFR-1.0-2.5B Flat Black Port Frame Reducer mounts onto the 2.5 inches port frame to change the port frame to 1 inch diameter. This allows accessories designed for smaller port sizes to be used with larger port frames. Coated with flat black. Mount with two M3 size set screws using a 1.5 mm allen wrench, which are included with the part.
Specifications
- TypePort Frame Reducer
- Detector Type819C & 819D Series
- Sphere MaterialFlat Black
- Port Size2.5 in.
- Clear Aperture1.0 in.
- MaterialBlack anodized aluminum
