Port Frame Reducer, 1.5 to 1 in. Port, Spectraflect, 819C and 819D Spheres

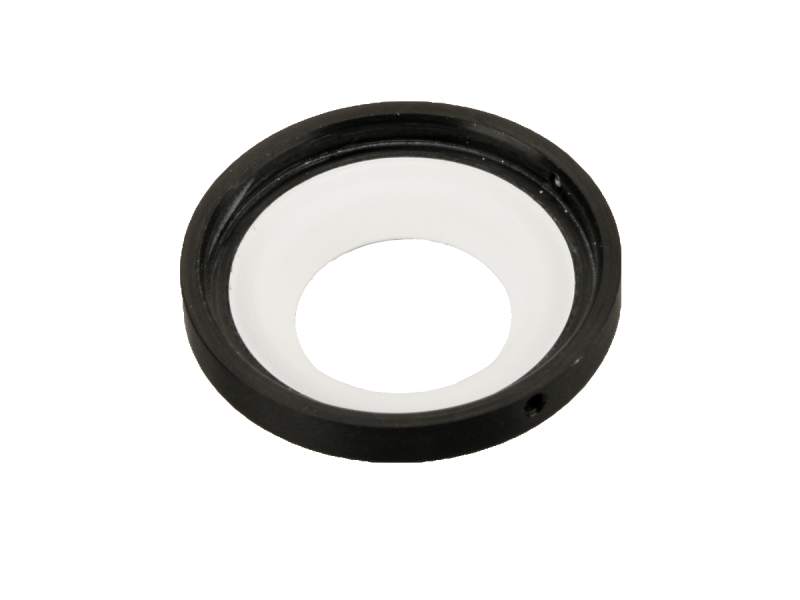

Port Frame Size Adapters for Integrating Spheres

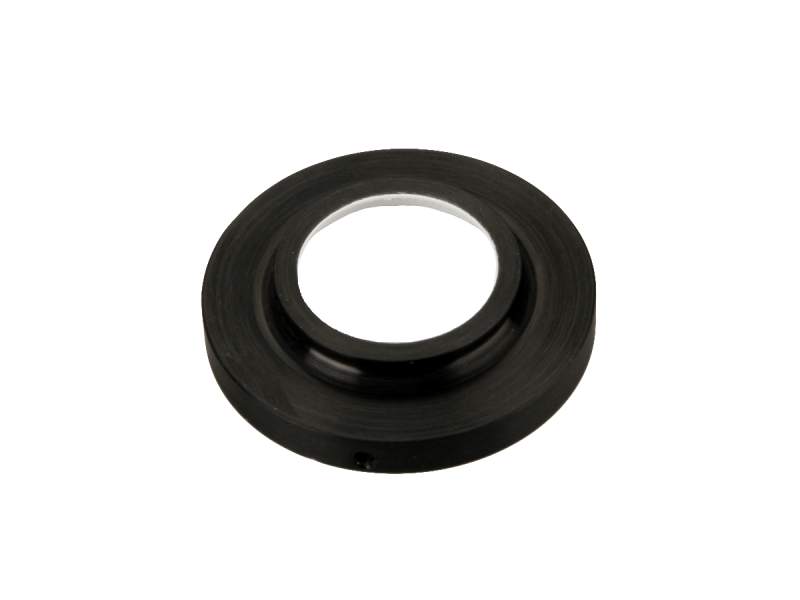

The 819M-PFR-SF-1.5 Port Frame Reducer mounts onto the 1.5 inches port frame to change the port frame to 1 inch diameter. This allows accessories designed for smaller port sizes to be used with larger port frames. The 0 degree port of Newport's 3.3 and 4 inch spheres are 1.5 inches diameter. Barium sulfate (spectraflect) coating. Tighten with two M3 size set screws using a 1.5 mm allen wrench, which are included with the part.

Specifications

Technical Specs

Type
Port Frame Reducer
Detector Type
819C & 819D Series
Sphere Material
Barium Sulfate
Port Size
1.5 in.

Clear Aperture
1.0 in.
Material
Black anodized aluminum

Type
Port Frame Reducer
Detector Type
819C & 819D Series
Sphere Material
Barium Sulfate
Port Size
1.5 in.

Clear Aperture
1.0 in.
Material
Black anodized aluminum

Resources & Downloads

Literature

Integrating Sphere Accessories Datasheet(773.9 kB, PDF)

Tutorials

Integrating Sphere Fundamentals and Applications

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		819C-SF-4Integrating Sphere, 4-Port, 4 in. Diameter, Barium Sulfate. 1.5 in. Port Plug Included	UNIVERSAL		In Stock	$2,113
		819D-SF-4Integrating Sphere, 3-Port, 4 in. Diameter, Barium Sulfate, Port Frame Reducer Included	UNIVERSAL		6 Weeks	$2,070
