Compare Model Drawings, CAD & Specs Availability Price
EQ100-L
Right-Angle Bracket, UTS100 and UTS150
$1,458.00
In Stock
 EQ100-L Right-Angle Bracket, UTS100 and UTS150
In Stock
 $1,458.00
EQ100-LV6
Right-Angle Bracket, UTS100PPV6 and UTS150PPV6
$1,709.00
In Stock
 EQ100-LV6 Right-Angle Bracket, UTS100PPV6 and UTS150PPV6
In Stock
 $1,709.00
EQ100-S
Right-Angle Bracket, UTS50
$1,350.00
In Stock
 EQ100-S Right-Angle Bracket, UTS50
In Stock
 $1,350.00
EQ100-SV6
Right-Angle Bracket, UTS50PPV6
$1,550.00
In Stock
 EQ100-SV6 Right-Angle Bracket, UTS50PPV6
In Stock
 $1,550.00
EQ120
Right-Angle Bracket, ILS, FC and RV
$2,290.00
In Stock
 EQ120 Right-Angle Bracket, ILS, FC and RV
In Stock
 $2,290.00
EQ160
Right-Angle Bracket, MTN Series linear Stages
$1,172.00
In Stock
 EQ160 Right-Angle Bracket, MTN Series linear Stages
In Stock
 $1,172.00
EQ180
Right-Angle Bracket, IMS, RV120 and RV160
$2,925.00
In Stock
 EQ180 Right-Angle Bracket, IMS, RV120 and RV160
In Stock
 $2,925.00
EQ45
Right-Angle Bracket, PR50 and SR50
$300.00
In Stock
 EQ45 Right-Angle Bracket, PR50 and SR50
In Stock
 $300.00
URSBK
90 Degree Mounting Bracket, URS75, URS100, URS150 Rotation Stages
$648.00
In Stock
 URSBK 90 Degree Mounting Bracket, URS75, URS100, URS150 Rotation Stages
In Stock
 $648.00

Features

Brackets for ILS and IMS Linear Stages

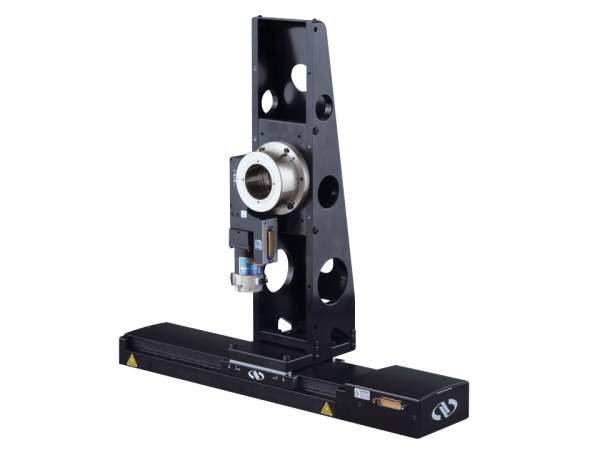

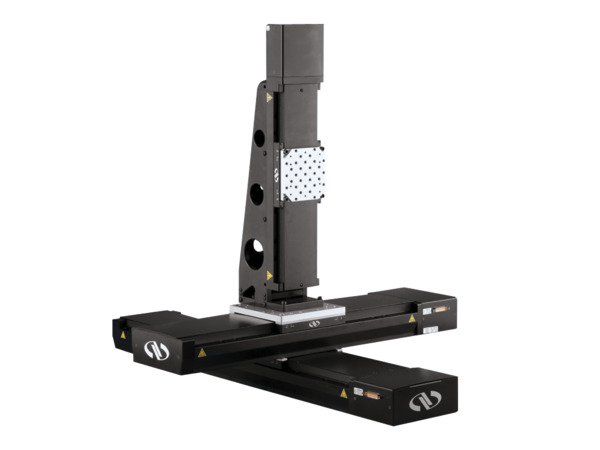

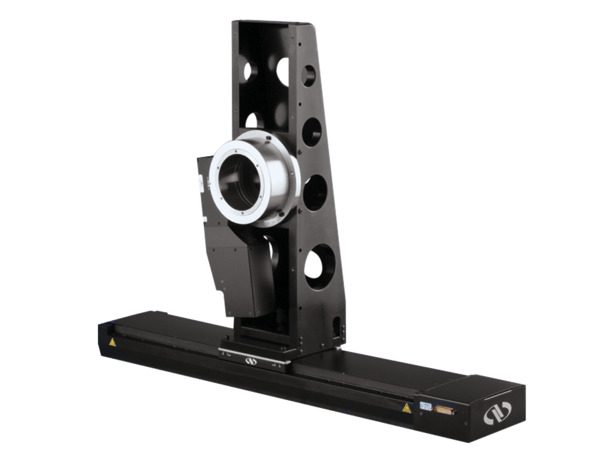

The EQ120 and EQ180 are black anodized aluminum right-angle brackets for use with ILS DC and stepper motor stages, IMS DC and stepper motor stages and FCL stages. Another ILS or IMS linear stage or an RV DC or stepper motor rotation stage can be mounted vertically.

Brackets for UTS Linear Stages

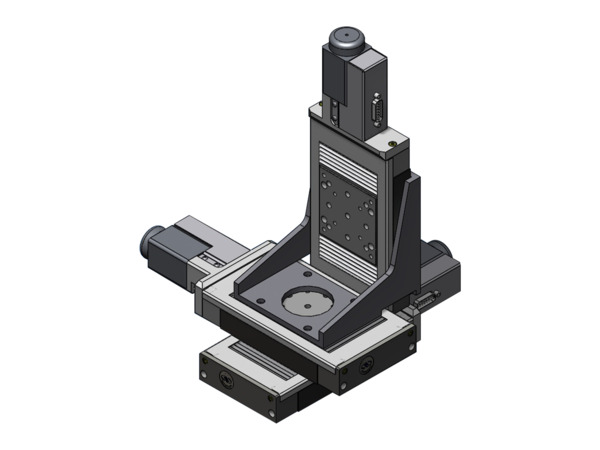

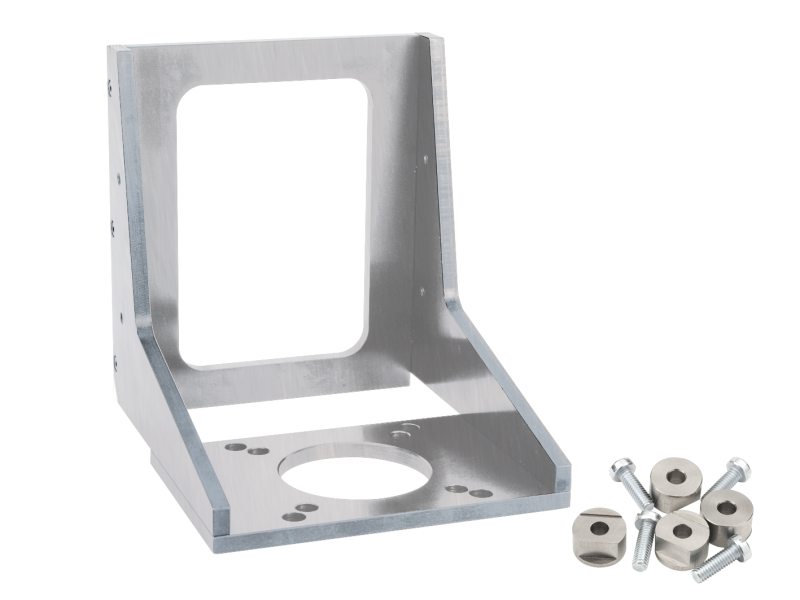

The EQ100-S and EQ100-L right-angle brackets can mount a UTS DC or stepper motor stage vertically onto another UTS stage. EQ100-SV6 and EQ100-LV6 are vacuum-compatible models to be used with UTS-PPV6 vcauum compatible stepper motor stages. Four mounting bridals are included with the bracket.

Bracket for PR50/SR50 Compact Rotation Stages

The EQ45 right-angle bracket can be used for vertcial mounting of a PR/SR50 compact DC or stepper motor rotation stage.

Bracket for URS Rotation Stages

The URSBK is a black anodized aluminum right-angle bracket compatible with URS DC or stepper motor rotation stages.

Bracket for High Capacity Load Linear Stages

The EQ160 is a right angle bracket for MTN high capaity load DC or stepper motor linear stages.
