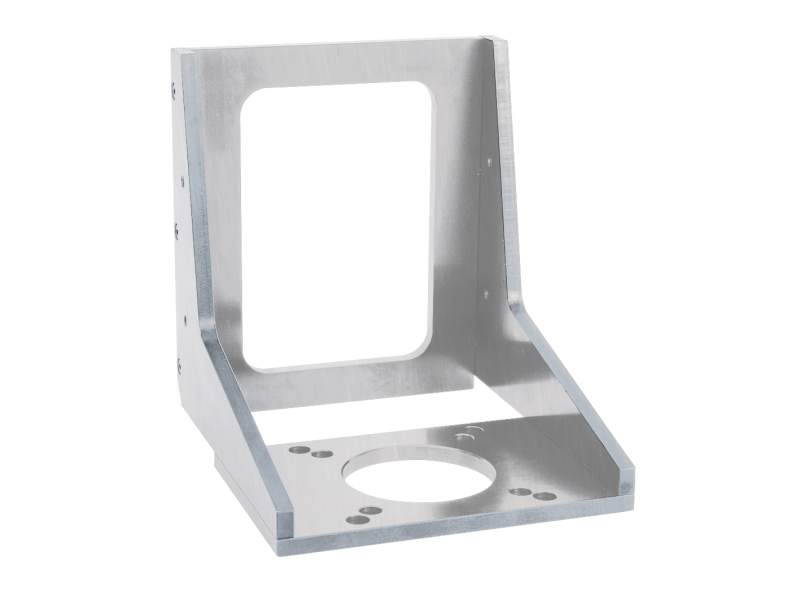

Right-Angle Bracket, UTS100PPV6 and UTS150PPV6

Right-Angle Bracket, UTS100PPV6 and UTS150PPV6

Model: EQ100-LV6

$1,672

In Stock

Compare

Add to List

Product Series Overview

EQ Motorized Stage 90 Degree Angle Brackets

The EQ100-LV6 right angle bracket mounts vertical UTS100PPV6 and UTS150PPV6 stages to a horizontal UTS stage via 4 mounting bridals included with the bracket.

Specifications

Technical Specs

Material

Stainless Steel
Vacuum Compatibility

10^-6 Torr

Material

Stainless Steel
Vacuum Compatibility

10^-6 Torr

Resources & Downloads

Other

EQ100-LV6 RoHS Certificate (279.5 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

EQ100-L.pdf (399.4 kB, PDF)

Literature

Vaccum Compatible Products Brochure (3.8 MB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		UTS150PPV6 Motorized Linear Stage, Steel, 150 mm Travel, Stepper Motor, Vacuum Compatible	UNIVERSAL		In Stock	$8,553
		UTS100PPV6 Motorized Linear Stage, Steel, 100 mm Travel, Stepper Motor, Vacuum Compatible	UNIVERSAL		In Stock	$7,798
