Beam Splitting Module for Beam Probes
Beam Splitting Module for Beam Probes

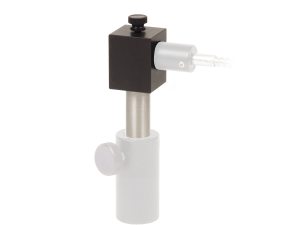

The 77806 is compact, rod mounted beam splitter holder capable of holding up to four Single Branch Fiber Bundles, each coupled to a Collimating Beam Probe. The fused silica beam splitter coated with inconel has a nominal 30% reflectance, 30% transmittance ratio from 250 to 2500 nm.
- Divides or combines beams from fiber optic bundles
- 30% reflectance and transmittance from 250-2500 nm
- Accepts up to four beam probes
- Tapped hole for rod mounting
- Includes absorbing cone port plug
- Simplifies reflectance and fluorescence measurement setup See All Features
Specifications
- TypeBeam Splitting Module
- Thread Type1/4-20
- Wavelength Range250 - 2500 nm
- Transmission30% nominal
- Reflectivity30% nominal
- Ports0, 90, 180, 270°
Features
Simplifies Reflectance and Fluorescence Measurement Setup

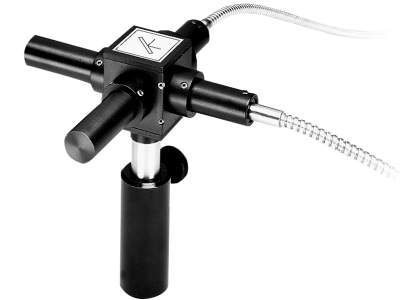

A simple relative reflectance (and moderate level fluorescence) setup can easily be created using the 77806 as shown above. Ports are positioned at 0°, 90°, 180°, and 270° to allow for the mounting of up to four beam probes for combining or dividing the beams from fiber optic bundles. One port is equipped with angular adjustments to provide for a small amount of beam alignment. An absorbing cone port plug is included. The clear aperture is 0.5 inch (12.5 mm) in diameter. For simple integration into a test setup, the bottom of the housing has a 1/4-20 tapped hole for mounting with an Optical Rod (sold separately).
Accessories
Single Branch Fiber Bundles
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 77527Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 72 in. | 4 Weeks | ||||
 | 77564Fiber Optic Bundle, Fused Silica, 11 mm Ferrules, 0.125 in., 36 in. | 6 Weeks | ||||
 | 77524Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 24 in. (RoHS Pending) | 3 Weeks | ||||
 | 77526Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 48 in. | |||||
| 77525Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 36 in. (RoHS Pending) | 3 Weeks | ||||
 | 77576Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 36 in. | |||||
| 77575Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 24 in. | 4 Weeks | ||||
| 77577Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.125 in., 24 in. |
Collimating Beam Probes
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 76596Collimating Beam Probe, Fiber Bundle, 70-350 mm, 1.5 Inch Flange | |||||
| 76595Collimating Beam Probe, Fiber Bundle, 25-150 mm, 1.5 Inch Flange | 4 Weeks | ||||
 | 77644Collimating Beam Probe, Fiber Bundle, Fused Silica | 4 Weeks | ||||
 | 77646Focusing and Imaging Beam Probe, Fiber Bundle, Fused Silica | 4 Weeks | ||||

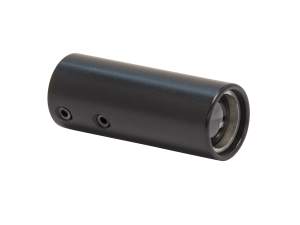

 | 77645Collimating Beam Probe, Fiber Bundle, Glass | In Stock | ||||
