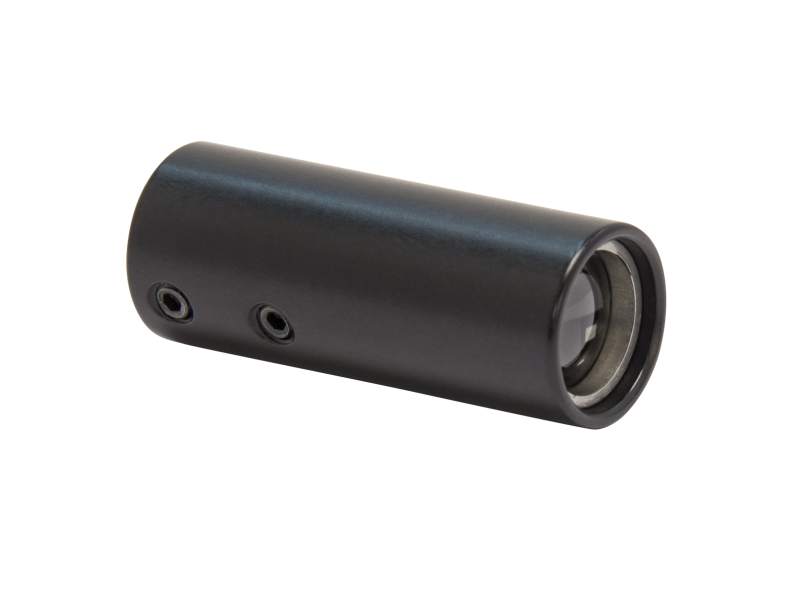

Collimating Beam Probe, Fiber Bundle, Glass

The 77645 Collimating Beam Probe has a low F/# compound glass lens with an 11 mm effective focal length. It collimates the highly divergent output from glass bundles, and transmits over their useful spectral range.

Specifications

Technical Specs

Type
Collimating Beam Probe
Optic Material
Glass

Type
Collimating Beam Probe
Optic Material
Glass

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

77645 Drawing(486.3 kB, PDF)
