Compare Model Drawings, CAD & Specs Wavelength Range 3 dB Bandwidth Fiber Type Maximum Conversion Gain Peak Responsivity Availability Price

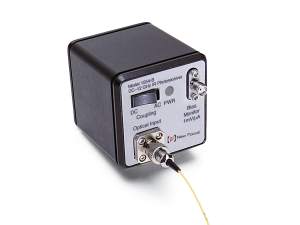

12 GHz fiber-optic receiver new focus photoreceiver model 1544
$5,440
4 Weeks
800-1650 nm 10 kHz to 12 GHz Singlemode -800 V/W 0.85 A/W
4 Weeks
$5,890
1 Week
800-1650 nm DC to 12 GHz Singlemode -800 V/W 0.85 A/W
1 Week
12 GHz fiber-optic receiver new focus photoreceiver model 1544
$5,300
In Stock
800-1650 nm 10 kHz to 12 GHz Multimode -700 V/W 0.75 A/W
In Stock
$5,990
800-1650 nm DC to 12 GHz Multimode -700 V/W 0.75 A/W
$5,860
1 Week
780-870 nm DC to 12 GHz Multimode -450 V/W 0.4 A/W
1 Week

-A: AC-coupled models
-B: Switchable DC- or AC-coupled models, 10-kHz cutoff when AC-coupled

Specifications

  • Detector Material
    1544: InGaAs
    1580: GaAs
  • Detector Type
    PIN
  • Fiber-Optic Connector
    FC/UPC
  • Core Diameter
    1544-x: 9 µm
    1544-x-50: 50 µm
    1580-x: 62.5 µm
  • Maximum Transimpedance Gain
    -1000 V/A
  • NEP
    1544-x: 24 pW/√Hz
    1544-x-50: 27 pW/√Hz
    1580-x: 42 pW/√Hz
  • Rise Time
    32 ps
  • Saturation Power
    0.7 mW
  • Output Connector
    Wiltron K
  • Output Impedance
    50 Ω
  • DC Bias Monitor Bandwidth
    50 kHz
  • DC Bias Monitor Transimpedance Gain
    1 V/mA
  • DC Bias Monitor Output
    SMA
  • DC Bias Monitor Output Impedance
    10k Ω
  • Power Requirements
    ±15 VDC, 200 mA

Features

GaAs and InGaAs Versions

Model 1580-B utilizes a GaAs diode providing wavelength coverage from 780-870 nm, with a higher sensitivity at 850 nm than the 1544 models, popular for datacom, optical sensing, imaging, LIDAR, and time-of-flight measurements. Model 1544 utilizes an InGaAs diode to provide broad spectral coverage from 500-1630 nm for singlemode fiber and 780-1630 nm for multimode fiber.

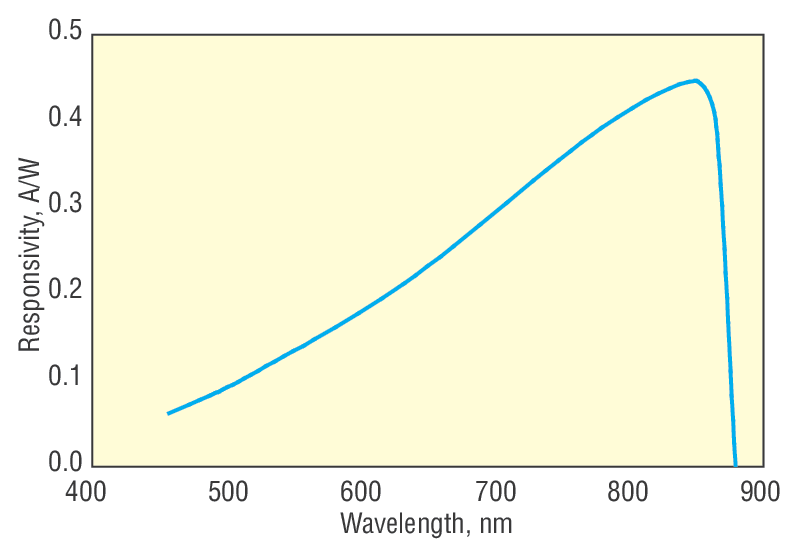

Typical Responsivity of Model 1580

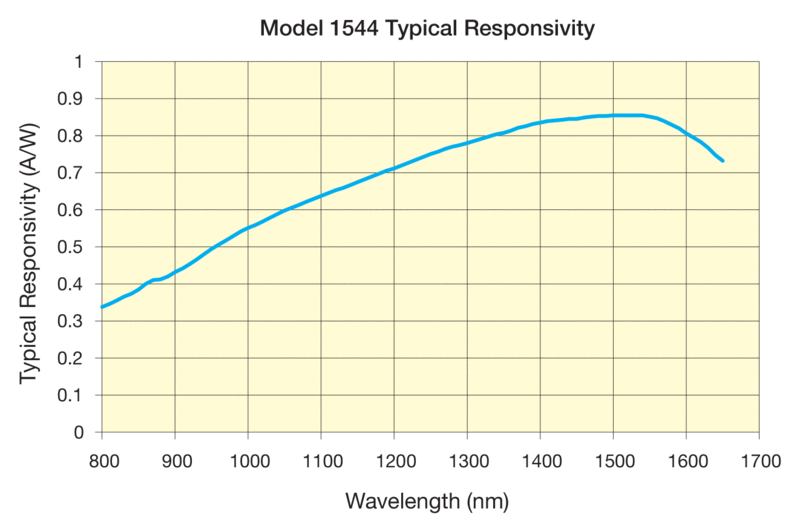

Typical Responsivity of Model 1544

Ultra-clean Pulse Response

The clean response and 32 ps rise time make these devices especially well-suited for time-domain characterization of 10-Gbit/s components. The high gain and gradual, well-behaved roll-off of the frequency response also make them useful for frequency-domain measurements.

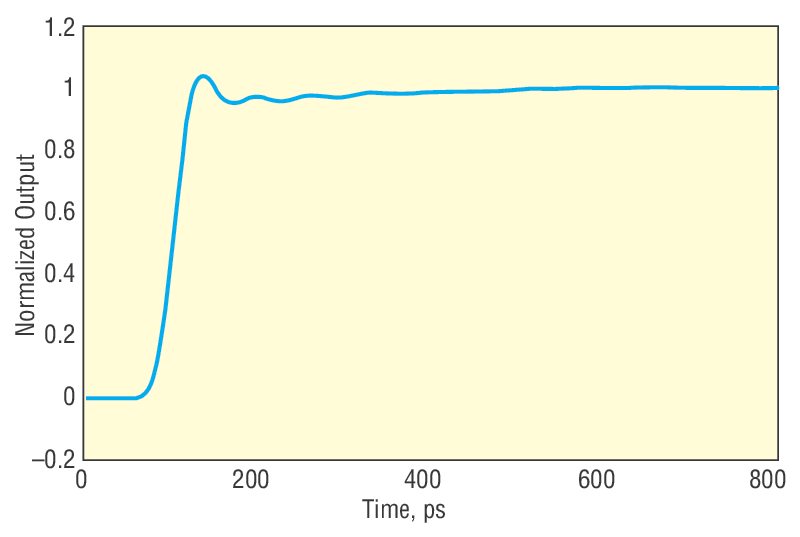

Typical Step Response of Model 1580

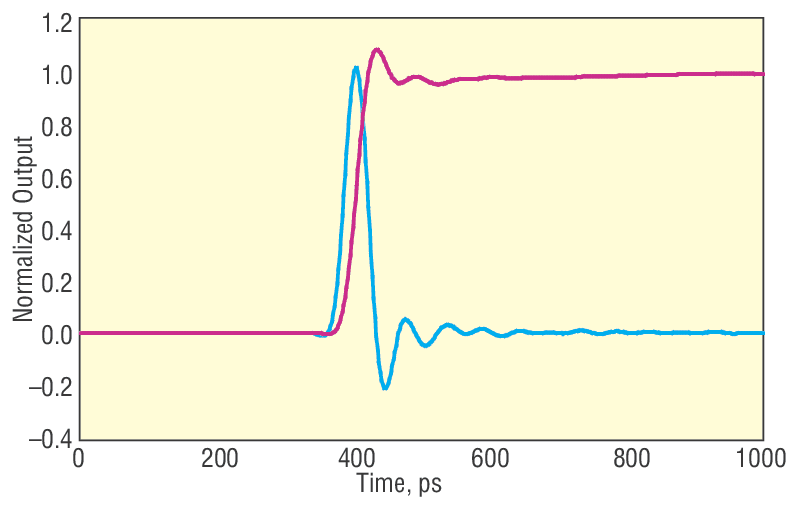

Typical Pulse and Step Response of Model 1544

NOTE: Pulse response measured on a 20-GHz oscilloscope with a 100-fs optical pulse. Step response calculated from pulse response.

Switchable DC-Coupled or AC-Coupled Output

The -B versions of these photoreceivers include a DC-coupled option so they give response all the way down to DC. At the touch of a switch, you can select the traditional AC-coupled output with a 10-kHz cutoff or DC-coupled mode.

Singlemode or Multimode Fiber

In Model 1544-A/B optical signal is delivered to the PIN photodiode through a 0.1 m, 9-um core singlemode fiber, while Model 1544-A/B-50 has a 50/125-µm multimode fiber and Model 1580-B comes standard with a 62.5/125-µm multimode fiber, which can accept laser light from both the 50 and 62.5 µm core fiber.

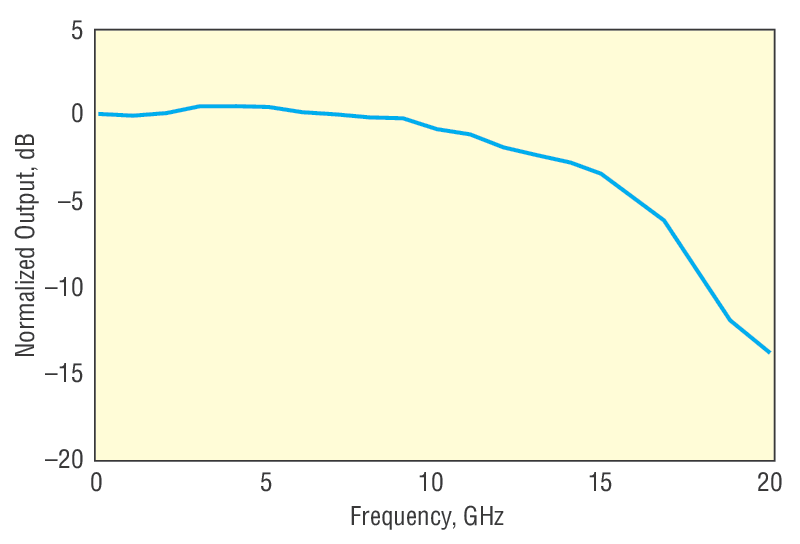

Typical Frequency Response of Model 1580

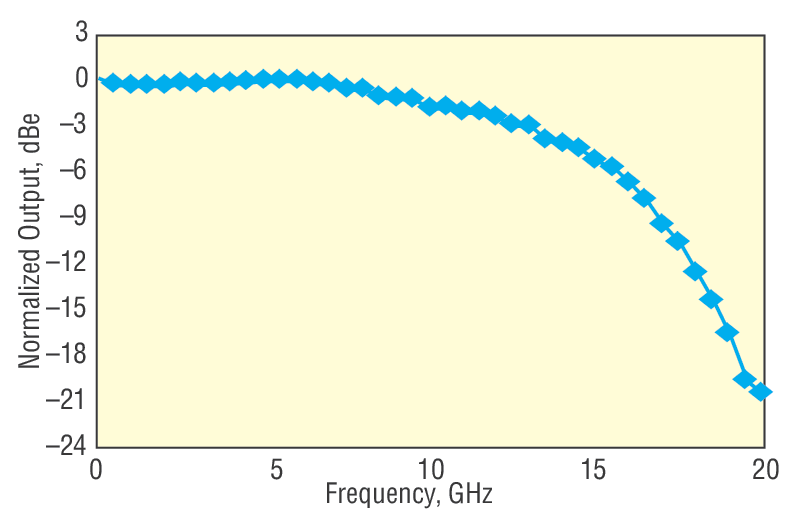

Typical Frequency Response of Model 1544

Applications

Applications for these photoreceivers include:

  • Characterizing 10-Gbit/s components, including BER testing and generating eye diagrams
  • Characterizing the frequency or time responses of pulsed lasers, modulators, and transmitters
  • Characterizing pulse propagation through dispersive optical systems
  • RIN measurements
  • Heterodyne experiments
  • Precision timing/triggering

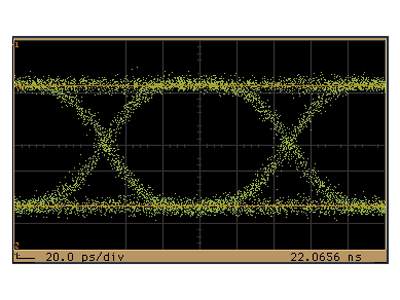

Eye Diagram - 10 Gbit/s data generated with Model 1544-A fiber-optic receiver.
