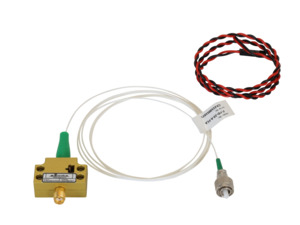

Our Fiber-Optic Linear Response Photoreceivers are hermetically sealed receivers for component qualification standards. They integrate PIN-photodiodes and Trans-Impedance Amplifiers.
Additional CAD file downloads are not available for this product.
30-ghz-linear-fiber-recievers - Drawings
Additional drawings are not available for this product.
Features
All New Hermetically Sealed Photoreceivers
MKS introduces two new high speed receivers in hermetically sealed packages. The F-PD-30-A-H-FCA is a linear photo receiver designed for analog applications. The F-PD-22-H-DIL series is a linear balanced
photoreceiver with a configurable bandwidth up to 22 GHz.
Ideal for OEM Applications

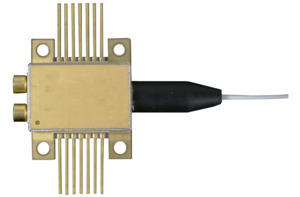

The F-PD-30-A-H-FCA contains a surface coupled coplanar waveguide PIN photodiode and a linear transimpedance amplifier within a hermetically sealed 14-pin butterfly package. The F-PD-22-H-DIL series is a linear balanced photoreceiver with aconfigurable bandwidth up to 22 GHz, packaged in a 14-pin mini-DIL package. As both the butterfly and the mini-DIL are widely used in industry, they are ideal for OEM applications.

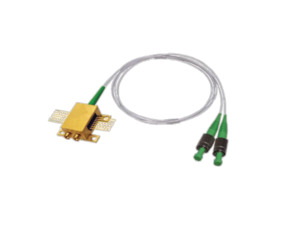

Balanced Receiver up to 22 GHz
The F-PD-22-H-DIL integrates a dual balanced PIN-photodiode (PD) array on a single chip and a linear Trans-Impedance Amplifier (TIA). It can be operated in either Manual Gain Control (MGC) mode or Automatic Gain Control (AGC) mode. Featuring differential conversion gain of 1500 V/W, an imbalanced response of less than 0.5 dB and a differential output voltage swing of up to 1200 mVpp, F-PD-22-H-DIL is the idea receiver solution for DQPSK operating up to 45 Gbit/s or for low noise analog heterodyne detection.
Variable Gain Adjustment
With an integrated variable gain amplifier (VGA), our receivers offers two gain control modes: Manual Gain Control (MGC) mode or Automatic Gain Control (AGC) mode. In MGC mode, F-PD-30-A-H-FCA provides a linear conversion gain up to 3000 V/W. At a reduced gain setting, the bandwidth of F-PD-30-A-H-FCA can be increased up to 35 GHz. In AGC mode, the gain is automatically adjusted to deliver a constant differential output voltage up to 1800 mV.
