Compare Model Drawings, CAD & Specs Type Thread Type Slot Length Pack Quantity Availability Price
$8.40
In Stock
Pedestal Clamping Fork 1/4-20 (M6) Slot 12.7 mm 1
In Stock
$10.50
In Stock
Pedestal Clamping Fork w/ Screw 1/4-20 12.7 mm 1
In Stock
$10.50
In Stock
Pedestal Clamping Fork w/ Screw M6 12.7 mm 1
In Stock
$9.40
In Stock
Pedestal Clamping Fork 1/4-20 (M6) Slot 25.4 mm 1
In Stock
$12.60
3 Weeks
Pedestal Clamping Fork w/ Screw 1/4-20 25.4 mm 1
3 Weeks
$12.60
In Stock
Pedestal Clamping Fork w/ Screw M6 25.4 mm 1
In Stock
$11.50
In Stock
Pedestal Clamping Fork 1/4-20 (M6) Slot 38.1 mm 1
In Stock
$13.70
5 Weeks
Pedestal Clamping Fork w/ Screw 1/4-20 38.1 mm 1
5 Weeks
$13.70
In Stock
Pedestal Clamping Fork w/ Screw M6 38.1 mm 1
In Stock
$81
In Stock
Pedestal Clamping Fork 1/4-20 (M6) Slot 12.7 mm 10
In Stock
$101
In Stock
Pedestal Clamping Fork w/ Screw 1/4-20 12.7 mm 10
In Stock
$101
In Stock
Pedestal Clamping Fork w/ Screw M6 12.7 mm 10
In Stock
$90
In Stock
Pedestal Clamping Fork 1/4-20 (M6) Slot 25.4 mm 10
In Stock
$121
In Stock
Pedestal Clamping Fork w/ Screw 1/4-20 25.4 mm 10
In Stock
$121
In Stock
Pedestal Clamping Fork w/ Screw M6 25.4 mm 10
In Stock
$110
In Stock
Pedestal Clamping Fork 1/4-20 (M6) Slot 38.1 mm 10
In Stock
$130
In Stock
Pedestal Clamping Fork w/ Screw 1/4-20 38.1 mm 10
In Stock
$130
In Stock
Pedestal Clamping Fork w/ Screw M6 38.1 mm 10
In Stock
$18.20
In Stock
Pedestal Clip Set 1/4-20 2
In Stock
$18.20
In Stock
Pedestal Clip Set M6 2
In Stock

Features

Flexible Positioning of Optical Post Assemblies

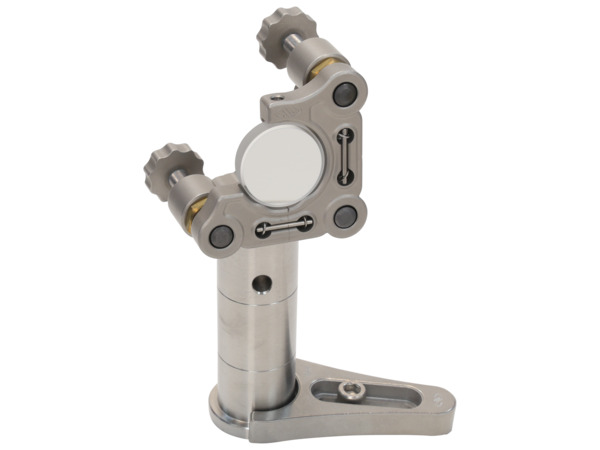

Pedestal Base Clamping Forks allow to secure 0.5 in. pedestal base post holders and 1 in. optical pedestals anywhere on an optical table or breadboard. The slotted design allows the positioning of mounting screws over a range of distances and orientations relative to any single mounting hole. All of these clamping forks are made from solid stainless steel for the most stable hold of optical post assemblies.

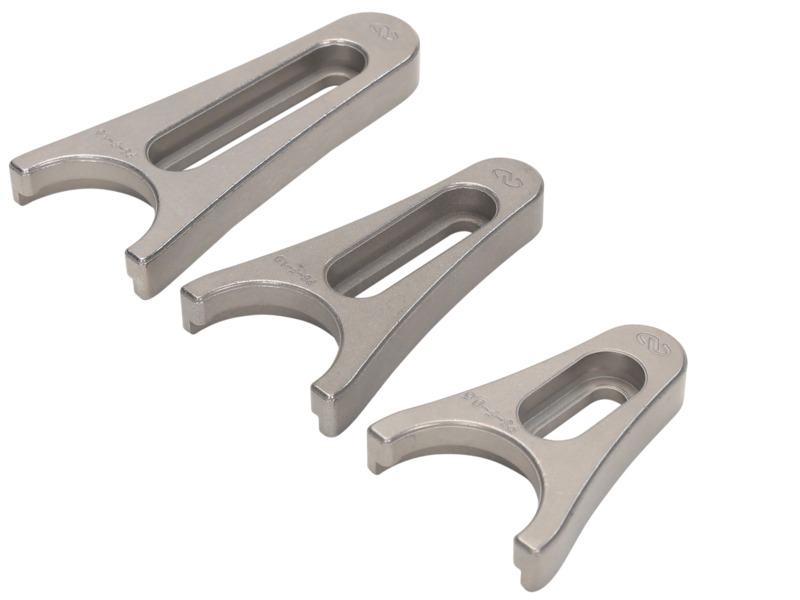

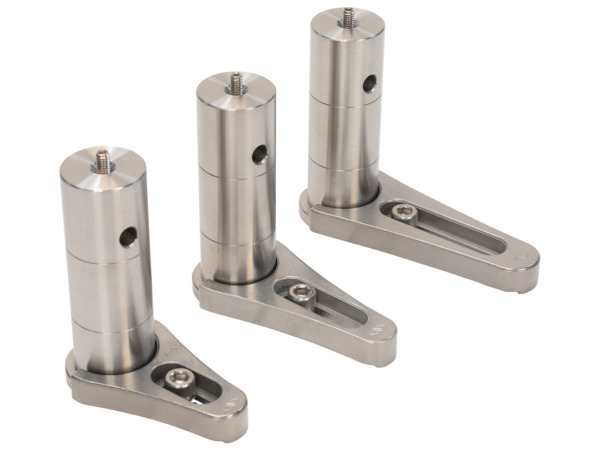

Three Slot Lengths and Captive Screw Versions

Pedestal Base Clamping Forks are offered in three slot lengths for maximized positioning flexibility in an optical system. Versions with encapsulated 1/4-20 or M6 captive screws are also available to avoid the need for locating a screw separately. The screw is held in the slot by a retainer so that it can't fall out.

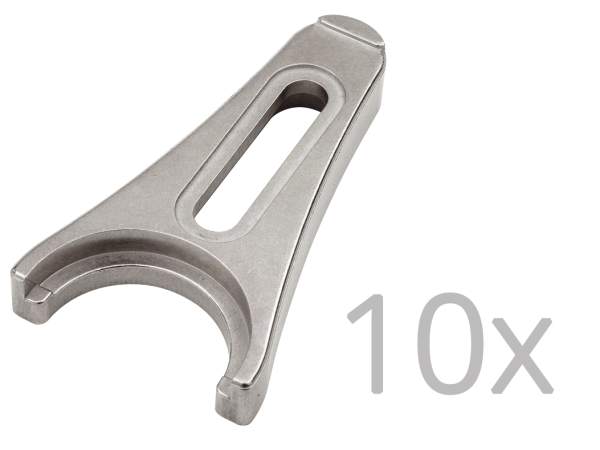

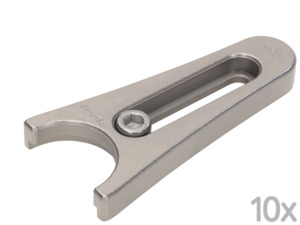

Cost-Saving 10 Packs

Ideal when starting a new lab, all Pedestal Base Clamping Forks are also sold in cost-saving packs of 10. Click here to check out all the cost-saving packs.

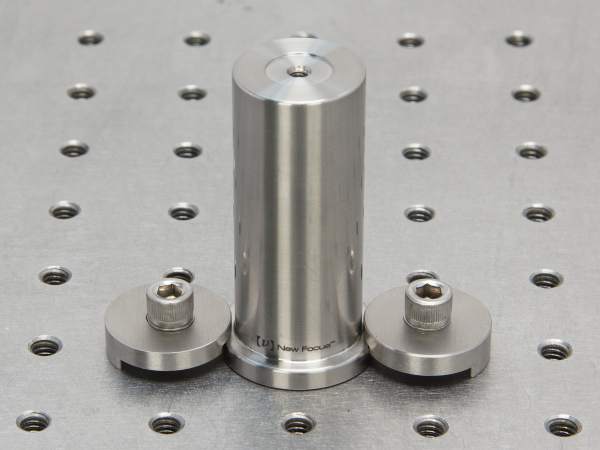

Pedestal Clips for Tight Mounting Space

The stainless steel PS-C-SET Pedestal Base Clipping Bridles decrease the amount of occupied table space needed for mounting, compared to standard clamping forks. These clips create a symmetrical clamping force around the center of the post. This even force prevents one-sided post deflections when tightening a post. The set includes 1/4-20 mounting screws and washers, or M6 screws and washers for the metric version.

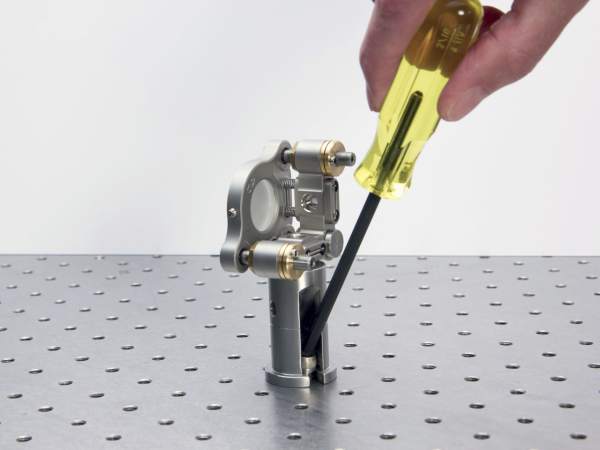

Ultimate Space Saving with Forkless Posts and Pedestals

PX Series Forkless Optical Posts and Pedestals enable denser optical systems to be built. Their unique internal slotted base allows them to be directly mounted to optical tables or breadboards without a clamping fork. This patent-pending feature saves three times the space of a standard pedestal while still providing positional flexibility and long-term stability.
