Pedestal Clip Set, Two Clips, Two 1/4-20 Screws
Pedestal Clip Set, Two Clips, Two 1/4-20 Screws
Model: PS-C-SET
Product Series Overview

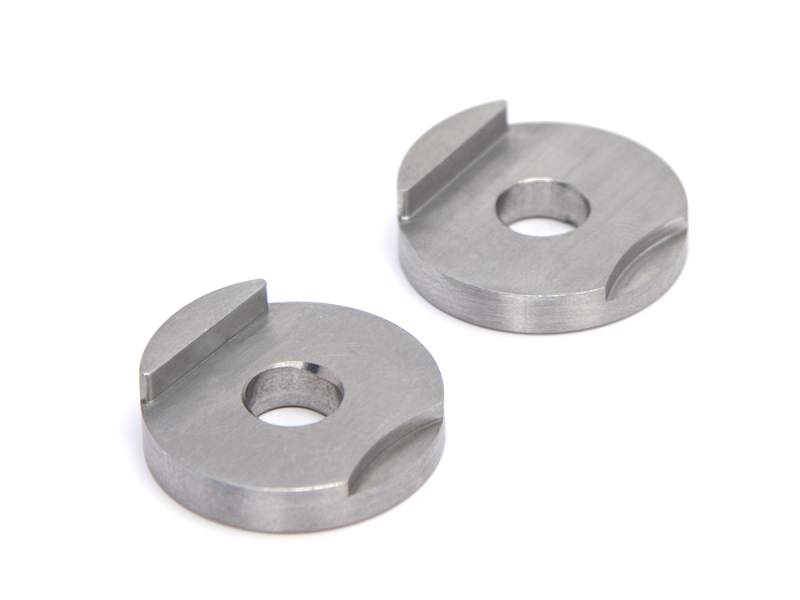

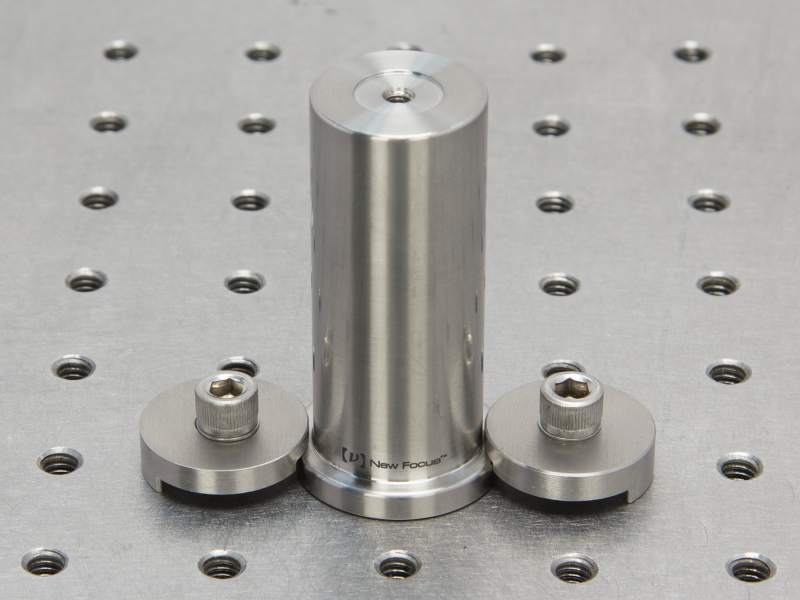

Pedestal Base Clamping ForksThe stainless steel PS-C-SET Pedestal Base Clipping bridles secure a 1.0 in. diameter optical pedestal or pedestal base optical post holder on an optical table. These pedestal clips decrease the amount of table real estate compared to a standard clamping fork. In addition, these clips create a symmetrical clamping force around the center of the post. This even force prevents one-sided post deflections when tightening a post fork.

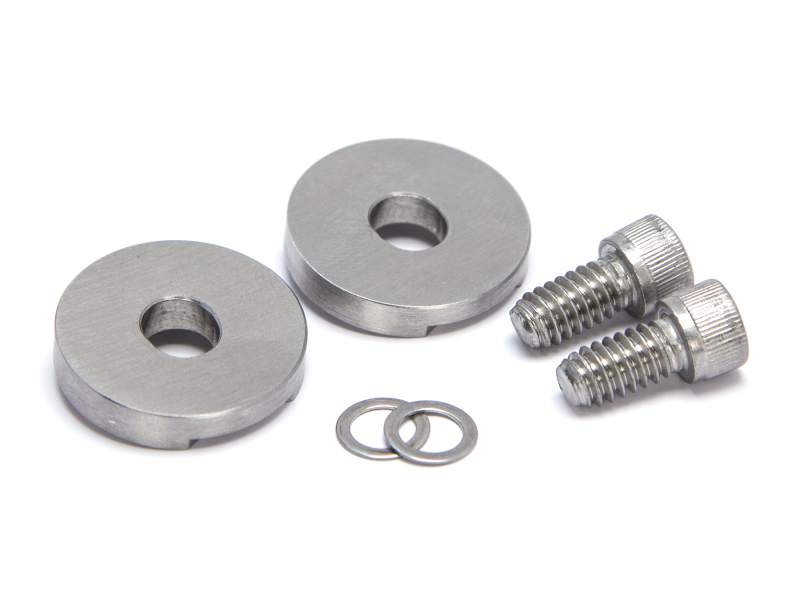

Included in this set are two pedestal clips, two 1/4-20 screws, and two washers.
Included in this set are two pedestal clips, two 1/4-20 screws, and two washers.
Resources & Downloads
2D Product Drawings
PS-C(109.7 kB, PDF)
Other
PS-C-SET_RoHS2021.pdf(682.1 kB, PDF)
Related Products
Customers Who Bought This Item Also Bought
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

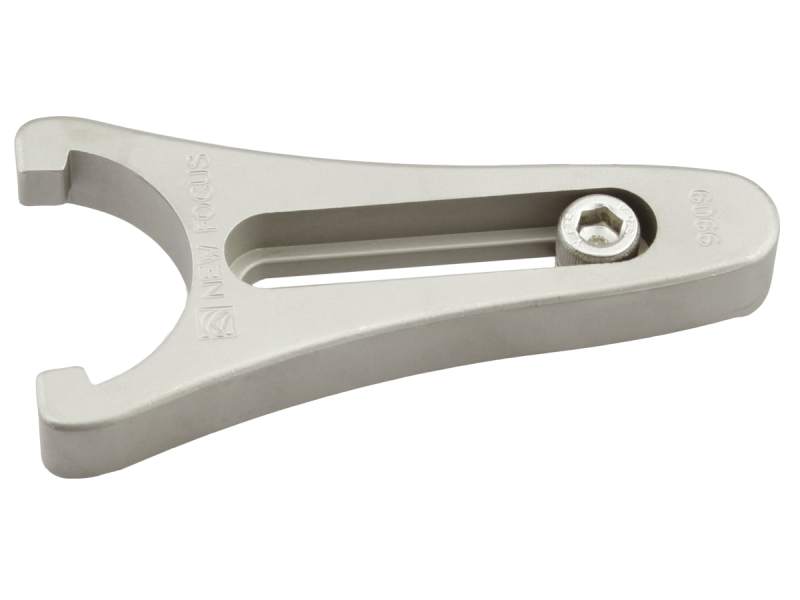

 | 9909Clamping Fork, 1.0 in. Diameter Pedestals, Captive 1/4-20 Screw, Long Slot | |||||

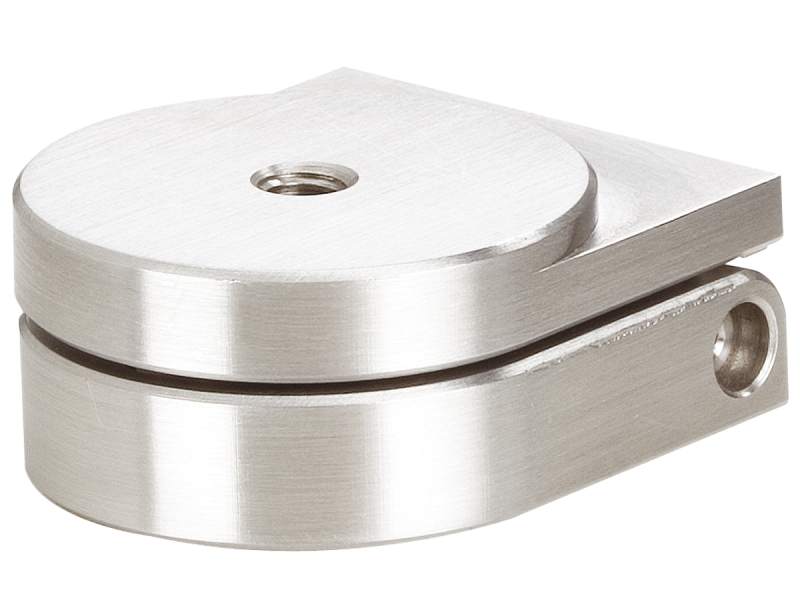

 | PS-KFKinematic Flip Base, Threaded 8-32 Mounting | FREE 2-day shipping on thousands of products on Newport.com Learn More |
