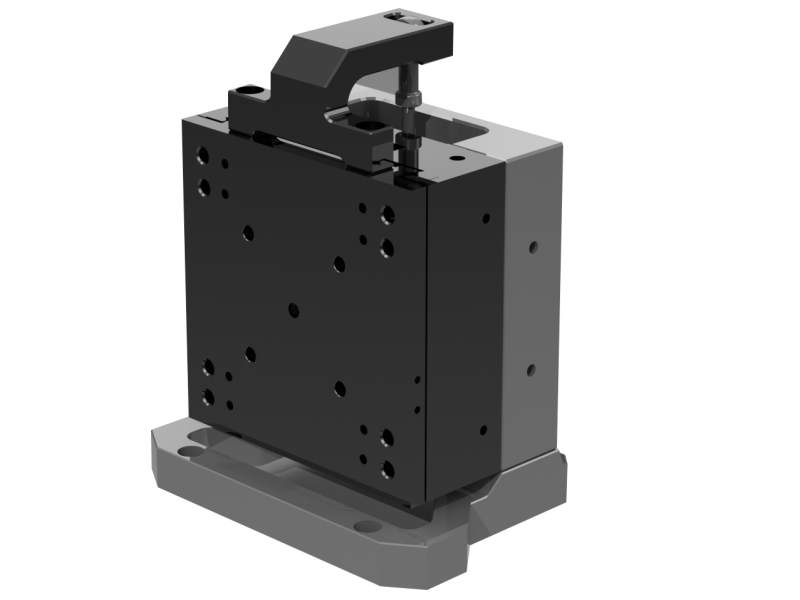

Motorized Vertical Stage, Ultra-Precision Linear Motor, 50 mm, 100 N
Model: XMS50V
Product Series Overview
Ultra-high Precision, Vertical Stages, XMS-V SeriesThe XMS50V stage is comprised of a standard XMS50 stage mounted on a high flatness (surface flatness within 5 µm) vertical plate or a bracket and a low friction air cylinder connected to the carriage. The custom-designed connection of the air cylinder to the carriage eliminates the effect of the air cylinder’s motion on the performance of the XMS50 stage. With the proper adjustment of pressure, a perfect balance of the load can be achieved. When motor power is turned off, the air cylinder’s valve will enable a controlled descent of the carriage. Also available with more compact, but load-specific, magnetic counterweight.
Contact Inside Sales Support team to discuss application requirements and get a quote for the configuration that best suits your needs.
Resources & Downloads
Application Notes
XMS100V Vertical Linear Stage(1.4 MB, PDF) Surface Metrology.pdf(134.1 kB, PDF)
Literature
LMS Data Sheet(2.2 MB, PDF) Mini Laser Machining Brochure 2016(1.4 MB, PDF) Laser Machining Brochure 2018(3.4 MB, PDF)
Technical Notes
Methods to Determine Optimized Scaling Acceleration(3.4 MB, PDF)
Manuals
Cable Kits User's Manual.pdf(1.9 MB, PDF)
Related Products
Compatible controllers
Along with the controller, a driver module and a cable kit are required. See the options below.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | xps-d-universal-motion-controllerXPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver | |||||
 | xps-rl-universal-high-performance-motion-controllerXPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver |
Universal XPS-DRV11 driver
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | XPS-DRV11Motion Controller Card, Universal, Stepper, DC, and Linear Motors | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | XPS-DK22Cable Kit, For Stages IMS-LM-S, XM-S, and XPS-DRV11 Driver | In Stock |
Similar Stages
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | IMS100VMotorized Vertical Stage, 100 mm Travel, 400 N Load, DC motor, 1/4-20 | 1 Week | ||||
 | VP-5ZAMotorized Vertical Stage, Compact, 4.8 mm, DC Servo with Tachometer, 4-40 and 8-32 | |||||
 | GTS30VMotorized Vertical Stage, High Precision, 30 mm Travel, GTS Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
