  7. UTS100CC

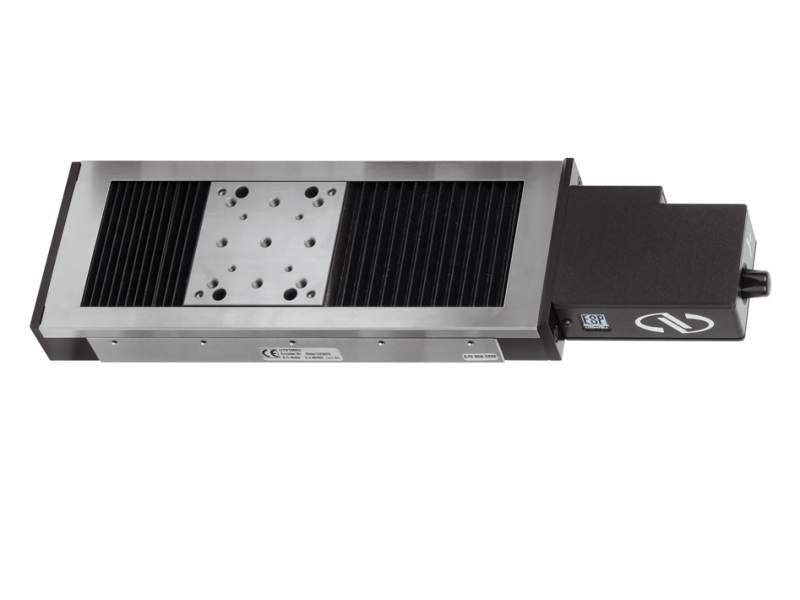

Motorized Linear Stage, Steel, 100 mm Travel, DC Motor, M4 and M6

  • Travel Range
    100 mm
  • Maximum Speed
    40 mm/s
  • Minimum Incremental Motion
    300 nm
  • Centered Load Capacity
    200 N
  • Axial Load Capacity (+Cx)
    50 N
  • Inverse Axial Load Capacity (-Cx)
    -10 N
  • Accuracy, Typical
    ±1.5 µm
  • Accuracy, Guaranteed
    ±2.75 µm
  • Uni-directional Repeatability, Typical
    ±0.30 µm
  • Uni-directional Repeatability, Guaranteed
    ±0.5 µm
  • Bi-directional Repeatability, Typical
    ±0.8 µm
  • Bi-directional Repeatability, Guaranteed
    ±1.75 µm
  • Pitch, Typical
    ±25 µrad
  • Pitch, Guaranteed
    ±50 µrad
  • Compliance in Pitch
    15 µrad/Nm
  • Yaw, Typical
    ±20 µrad
  • Yaw, Guaranteed
    ±35 µrad
  • Compliance in Yaw
    15 µrad/Nm
  • Compliance in Roll
    10 µrad/Nm
  • Drive Type
    DC Motor
  • Origin Repeatability
    ±0.5 µm
  • Cable Length
    3 m
  • Vacuum Compatibility
    No
  • Thread Type
    M4 and M6
  • Weight
    3.2 kg
  • MTBF
    20,000 h (25% load, 10% duty cycle)
  • Maximum Power Consumption
    40 W
  • Compliance
    RoHS 3, CE
