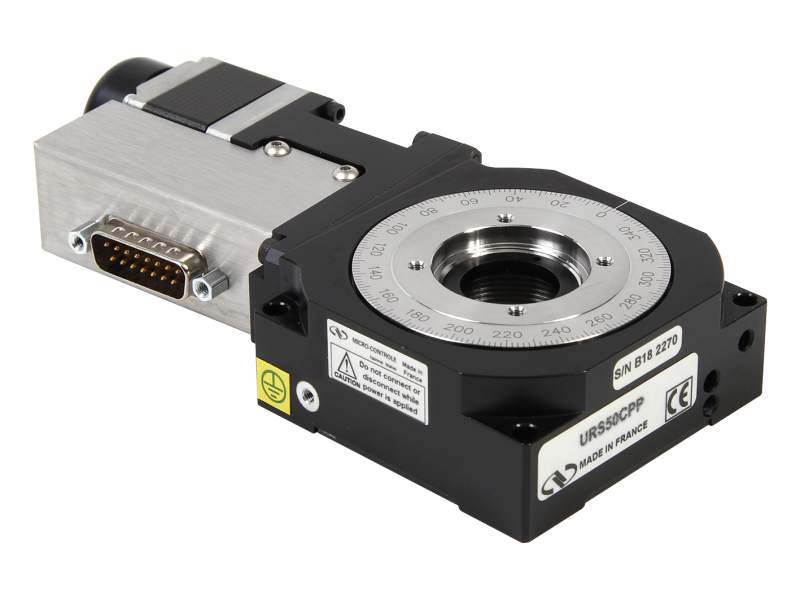

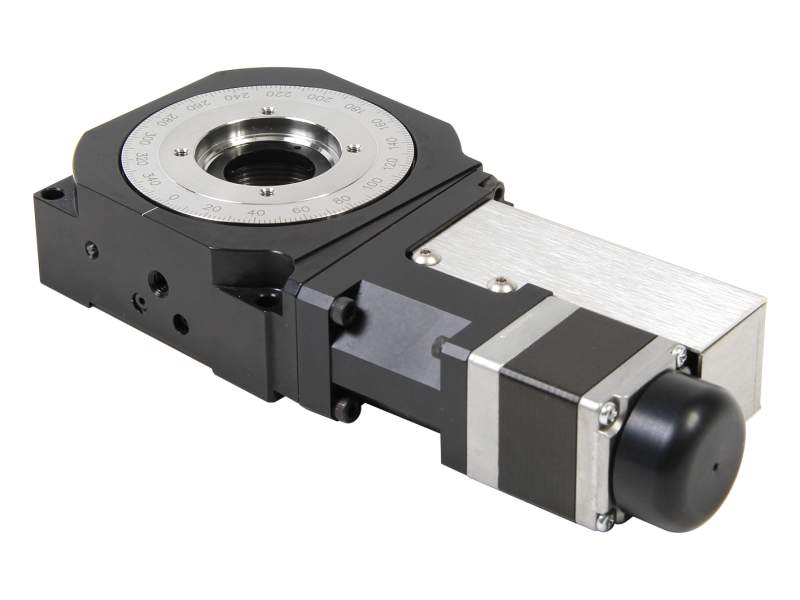

The URS50CPP Rotation Stage provides precision 360° continuous motion in a low profile package. It meets the requirements of numerous research and industrial applications. The 0.25 N·m torque stepper motor provides the highest dynamic speed range and allows for rotating speeds up to 40°/s. All URS rotation stages feature a proprietary 4-point contact ball bearing. The unique, 2-piece design of the URS provides a low-profile compact stage with exceptional stiffness, high reliability and outstanding wobble and eccentricity.
Proprietary Ball Bearings
All URS-B rotation stages feature a proprietary ball bearing to provide a low-profile compact stage with exceptional stiffness, high reliability and low wobble and eccentricity.
Economical Micro-stepping Stepper Motor
Basic working operation of a micro-stepping stepper motor
The stepper motor version is a more economical version for less demanding applications. When used with motion controllers with high micro-step capability, like the XPS or ESP30x, low noise operation and very small incremental motions are guaranteed. The stepper motor versions do not use encoder feedback, but reach a position by the number of commanded steps and microsteps. For this purpose, the stepper motor is directly attached to the worm screw using a proprietary bellows coupling that has a high torsional stiffness, eliminating the need for a gear or belt drive. The high output torque of the stepper motor minimizes the risk of lost steps and provides good linearity between commanded microsteps and the actual motion of the stage.
Tilted Worm Screw
URS50CPP Top View
The tilted worm screw arrangement allows for 4 symmetric mounting holes as compared to other designs that only feature 2 or 3 mounting holes. This enables the URS-B stages to provide better support of higher or off-centered loads. Additionally, the flexible preloading system for the worm gear was improved to minimize backlash during operation.
Limit Switches
Except for the URS50 version, all URS stages feature adjustable limit switches to prevent over travel.
MSCABLE-10Cable, DB-25 Male to DB-15 Female, 10 m Length
UNIVERSAL
In Stock
$682.00
XPS-D8Universal Motion Controller, High Performance, 8-axis, Ethernet
UNIVERSAL
In Stock
$11,822.00
SMC100PPMotion Controller, Single-axis Stepper Motor
UNIVERSAL
In Stock
$1,382.00
