Mounting Plate, 2 X 3 in., Double Density 8-32 & 1/4-20 Hole Pattern

Model: TP-23

$33

In Stock

Compare

Add to List

Product Series Overview

Miniature Quadruple Density Double-Threaded Plates

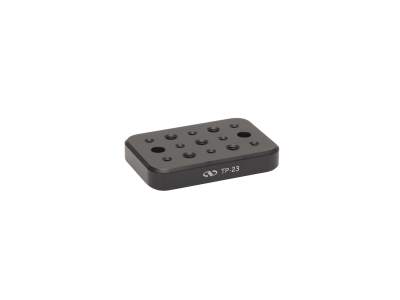

The TP-23 is a 2 x 3 inch threaded plate featuring a double-density pattern of 8-32 and 1/4-20 threaded mounting holes. Use these plates to combine several optical mounts together on to a single stable platform. Each of these plates also have counterbored thru holes which can be used for stand-off posts and pedestals. These threaded plates are made from 1/2-in. (12.7-mm) thick aluminum alloy plate and finished with a durable type 2 black anodize.

Specifications

Technical Specs

Type

Double-Density Mounting Holes
Height

12.7 mm
Width

3 in.
Dimensions

50.8 x 76.2 x 12.7 mm
Length

2 in.
Thread Type

8-32 and 1/4-20

Thickness

0.5 in.
Material

Aluminum
Use

Mounting Plate
Surface Flatness

±0.02 in.
Mounting Holes

8-32 and 1/4-20

Type

Double-Density Mounting Holes
Height

12.7 mm
Width

3 in.
Dimensions

50.8 x 76.2 x 12.7 mm
Length

2 in.
Thread Type

8-32 and 1/4-20

Thickness

0.5 in.
Material

Aluminum
Use

Mounting Plate
Surface Flatness

±0.02 in.
Mounting Holes

8-32 and 1/4-20

Resources & Downloads

Related Products

Stand-off Pedestal Posts, 8-32 thread

Use these pedestal posts along with the spacers to set your platform height

Description	Compatibility	Avail.	Price
SP-1Z Optical Pedestal, Magnetic Base, 1.0 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$15.80
SP-1.5Z Optical Pedestal, Magnetic Base, 1.5 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$17.90
SP-2Z Optical Pedestal, Magnetic Base, 2.0 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$19.90
SP-3Z Optical Pedestal, Magnetic Base, 3.0 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$22
SP-4Z Optical Pedestal, Magnetic Base, 4.0 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$26
SP-F Clamping Fork, 0.5 in. Optical Pedestals, 1/4-20(M6) Slot	UNIVERSAL	In Stock	$11.10

Notes:

Use the SP-F fork to clamp the pedestal posts

Stand-off Pedestal Posts, M4 thread

Use these pedestal posts along with the spacers to set your platform height

Description	Compatibility	Avail.	Price
M-SP-1Z Optical Pedestal, Magnetic Base, 25.4 mm Height, 12.7 mm Diameter, M4 Thread	METRIC	In Stock	$15.80
M-SP-1.5Z Optical Pedestal, Magnetic Base, 38.1 mm Height, 12.7 mm Diameter, M4 Thread	METRIC	In Stock	$17.90
M-SP-2Z Optical Pedestal, Magnetic Base, 50.8 mm Height, 12.7 mm Diameter, M4 Thread	METRIC	In Stock	$19.90
M-SP-3Z Optical Pedestal, Magnetic Base, 76.2 mm Height, 12.7 mm Diameter, M4 Thread	METRIC	In Stock	$22
M-SP-4Z Optical Pedestal, Magnetic Base, 101.6 mm Height, 12.7 mm Diameter, M4 Thread	METRIC	In Stock	$26
SP-F Clamping Fork, 0.5 in. Optical Pedestals, 1/4-20(M6) Slot	UNIVERSAL	In Stock	$11.10

Notes:

Use the SP-F fork to clamp the pedestal posts

Stand off Spacers

Use the stand off spacers with the stand offs to reach non-standard platform heights

Description	Compatibility	Avail.	Price
SP-0.031-S-10 Pedestal Spacer Pack, 1/32 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10	UNIVERSAL	In Stock	$28
SP-0.063-S-10 Pedestal Spacer Pack, 1/16 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10	UNIVERSAL	2 Weeks	$28
SP-0.125-S-10 Pedestal Spacer Pack, 1/8 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10	UNIVERSAL	In Stock	$28
SP-0.25-S-10 Pedestal Spacer Pack, 1/4 in., 0.5 in. Diameter, 8-32 (M4) CLR, Qty 10	UNIVERSAL	In Stock	$28

Notes:

Stand off spacers are sold in packs of 10 ea.

Similar Mounting Plate Breadboards

These are similarly sized mounting plates

Description	Compatibility	Avail.	Price
SA2-04x06 Optical Breadboard Plate, Solid Aluminum, 4 x 6 in., 1/4-20 Hole Grid	IMPERIAL	In Stock	$57
SA2-06x06 Optical Breadboard Plate, Solid Aluminum, 6 x 6 in., 1 in. 1/4-20 Grid	IMPERIAL	In Stock	$67
SA2-06x06-D Optical Breadboard Plate, Solid Aluminum, 6 x 6 in., 1/4-20, Double Density	IMPERIAL	In Stock	$101
M-SA2-04X06 Optical Breadboard Plate, Solid Aluminum, 100 x 150 mm, 25 mm M6 Grid	METRIC	In Stock	$57
M-SA2-06X06 Optical Breadboard Plate, Solid Aluminum, 150 x 150 mm, 25 mm M6 Grid	METRIC	In Stock	$67
M-SA2-06x06-D Optical Breadboard Plate, Solid Aluminum, 150 x 150 mm, M6, Double Density	METRIC	In Stock	$101
