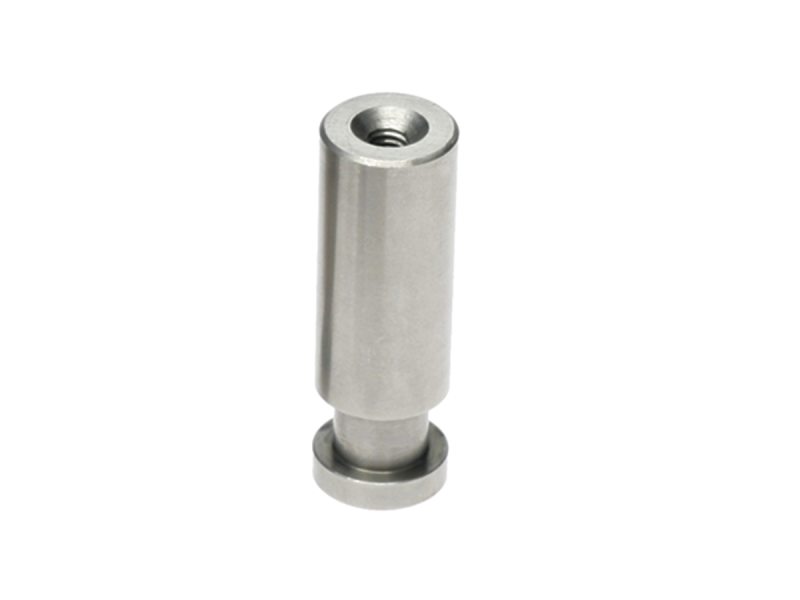

Optical Pedestal, Magnetic Base, 38.1 mm Height, 12.7 mm Diameter, M4 Thread

Model: M-SP-1.5Z

$17.90

In Stock

Compare

Add to List

Product Series Overview

0.5 in. Magnetic Base Optical Pedestal Pillars

M-SP‌-1.5Z Precision Ground, Stainless Steel Mini Pedestal Post is 12.7 mm diameter with a length of 38.1 mm. It features an M4 tapped hole on the top and a magnet located in the base to steady the pedestal prior to clamping it to an optical table by a SP-F clamping fork. They are also compatible with 0.5 in. Post Holders for height adjustment.

Specifications

Technical Specs

Type

Optical Pedestal
Diameter

12.7 mm
Height

38.1 mm
Thread Type

M4

Material

Stainless Steel
Pack Quantity

1

Type

Optical Pedestal
Diameter

12.7 mm
Height

38.1 mm
Thread Type

M4

Material

Stainless Steel
Pack Quantity

1

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SP-Z (97.9 kB, PDF)

Other

M-SP-1.5Z RoHS Certificate (279.6 kB, PDF)
M-SP-1-5Z_RoHS2021.pdf (690.3 kB, PDF)
