Optical Pedestal, Magnetic Base, 3.0 in. Height, 0.5 in. Diameter, 8-32

0.5 in. Magnetic Base Optical Pedestal Pillars

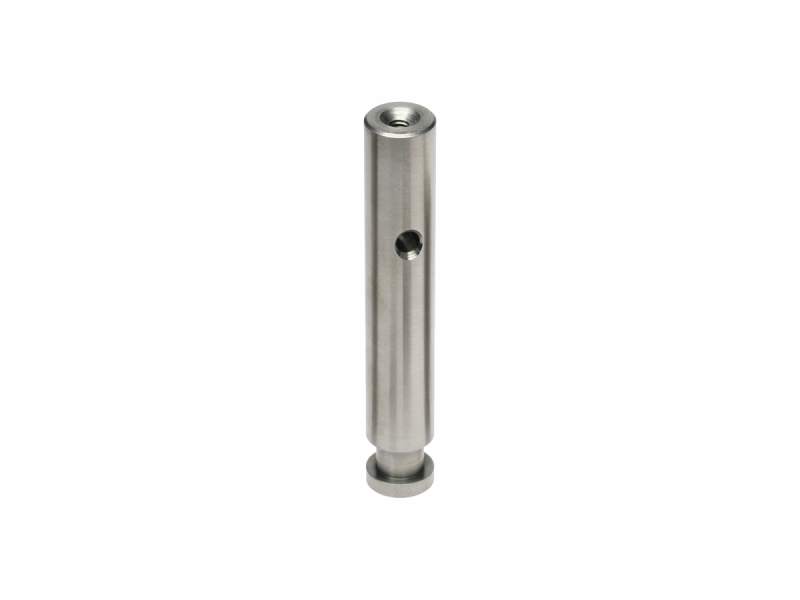

SP-3Z Precision Ground, Stainless Steel Mini Pedestal Post is 1/2 in. diameter with a length of 3.0 in. It features an M4 tapped hole on the top and a magnet located in the base to steady the pedestal prior to clamping it to an optical table by a SP-F clamping fork. They are also compatible with 0.5 in. Post Holders for height adjustment.

Specifications

Technical Specs

Type
Optical Pedestal
Diameter
12.7 mm
Height
76.2 mm
Thread Type
8-32

Material
Stainless Steel
Pack Quantity
1

Type
Optical Pedestal
Diameter
12.7 mm
Height
76.2 mm
Thread Type
8-32

Material
Stainless Steel
Pack Quantity
1

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

SP-Z(97.9 kB, PDF)

Other

SP-3Z RoHS Certificate(279.6 kB, PDF)
SP-3Z_RoHS2021.pdf(687.9 kB, PDF)
