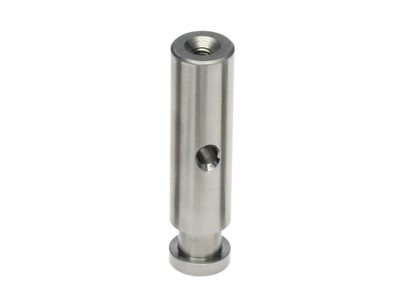

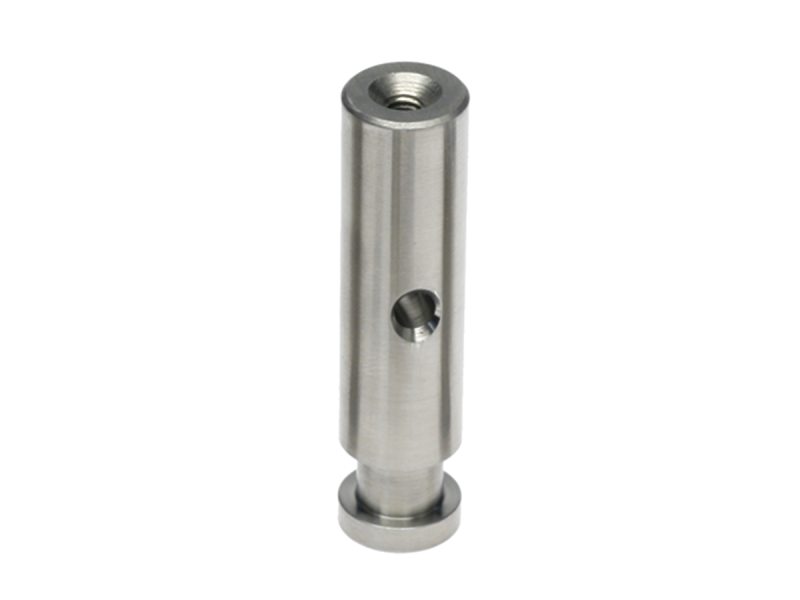

Optical Pedestal, Magnetic Base, 2.0 in. Height, 0.5 in. Diameter, 8-32

Model: SP-2Z

$19.90

In Stock

Compare

Add to List

Product Series Overview

0.5 in. Magnetic Base Optical Pedestal Pillars

SP-2Z Precision Ground, Stainless Steel Mini Pedestal Post is 1/2 in. diameter with a length of 2.0 in. It features an M4 tapped hole on the top and a magnet located in the base to steady the pedestal prior to clamping it to an optical table by a SP-F clamping fork. They are also compatible with 0.5 in. Post Holders for height adjustment.

Specifications

Technical Specs

Type

Optical Pedestal
Diameter

12.7 mm
Height

50.8 mm
Thread Type

8-32

Material

Stainless Steel
Pack Quantity

1

Type

Optical Pedestal
Diameter

12.7 mm
Height

50.8 mm
Thread Type

8-32

Material

Stainless Steel
Pack Quantity

1

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SP-Z (97.9 kB, PDF)

Other

SP-2Z RoHS Certificate (279.6 kB, PDF)
SP-2Z_RoHS2021.pdf (687.9 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
SP-1.5Z Optical Pedestal, Magnetic Base, 1.5 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$17.90
SR-2Z Pedestal Pillar, Magnetic Base, 2 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$45
SR-4Z Pedestal Pillar, Magnetic Base, 4 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$54
SP-BZ Magnetic Pedestal Base, 0.5 in. Diameter, 1.0 in. Height, 1/4-20	IMPERIAL	Contact Us	$13.70
SR-3Z Pedestal Pillar, Magnetic Base, 3 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$47
SP-3Z Optical Pedestal, Magnetic Base, 3.0 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$22
SP-1Z Optical Pedestal, Magnetic Base, 1.0 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$15.80
SP-4Z Optical Pedestal, Magnetic Base, 4.0 in. Height, 0.5 in. Diameter, 8-32	IMPERIAL	In Stock	$26
SR-1Z Pedestal Pillar, Magnetic Base, 1 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	In Stock	$41
SR-1.5Z Pedestal Pillar, Magnetic Base, 1.5 in. Height, 1.5 in. Diameter, 1/4-20	IMPERIAL	4 Weeks	$43

Compatible

Description	Compatibility	Avail.	Price
SP-F Clamping Fork, 0.5 in. Optical Pedestals, 1/4-20(M6) Slot	UNIVERSAL	In Stock	$11.10
TR-E2E8-10 Thread Adaptor, 8-32 Male to 2-56 Female , pack of 10	UNIVERSAL	In Stock	$54
TA-8M4-10 Thread Adaptor, 8-32 Male to M4 Male, pack of 10	UNIVERSAL	In Stock	$41
TA-8M6-10 Thread Adaptor, 8-32 Male to M6 Male, pack of 10	UNIVERSAL	In Stock	$41
SK-TA Thread Adaptor Set, English	UNIVERSAL	In Stock	$320
TA-8Q20-10 Thread Adaptor, 8-32 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$41
