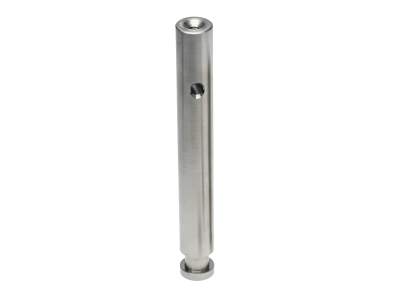

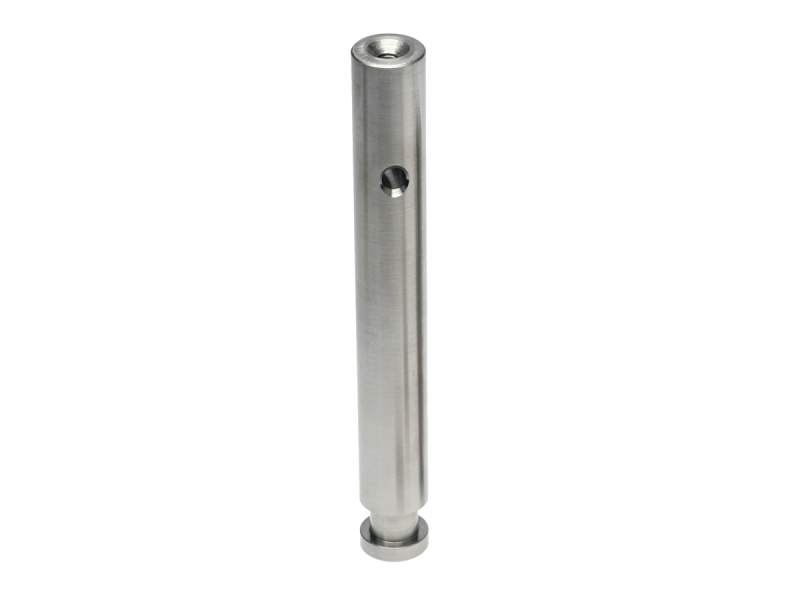

Optical Pedestal, Magnetic Base, 4.0 in. Height, 0.5 in. Diameter, 8-32

Model: SP-4Z

$26

In Stock

Compare

Add to List

Product Series Overview

0.5 in. Magnetic Base Optical Pedestal Pillars

SP-4Z Precision Ground, Stainless Steel Mini Pedestal Post is 1/2 in. diameter with a length of 4.0 in. It features an M4 tapped hole on the top and a magnet located in the base to steady the pedestal prior to clamping it to an optical table by a SP-F clamping fork. They are also compatible with 0.5 in. Post Holders for height adjustment.

Specifications

Technical Specs

Type

Optical Pedestal
Diameter

12.7 mm
Height

101.6 mm
Thread Type

8-32

Material

Stainless Steel
Pack Quantity

1

Type

Optical Pedestal
Diameter

12.7 mm
Height

101.6 mm
Thread Type

8-32

Material

Stainless Steel
Pack Quantity

1

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

SP-Z (97.9 kB, PDF)

Other

SP-4Z RoHS Certificate (279.9 kB, PDF)
SP-4Z_RoHS2021.pdf (689.6 kB, PDF)
