Optical Pedestal, Magnetic Base, 1.0 in. Height, 0.5 in. Diameter, 8-32

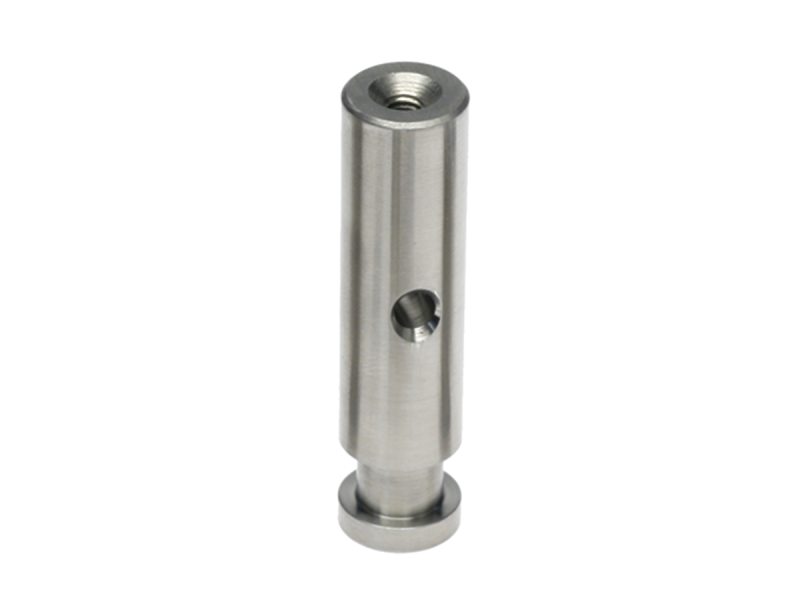

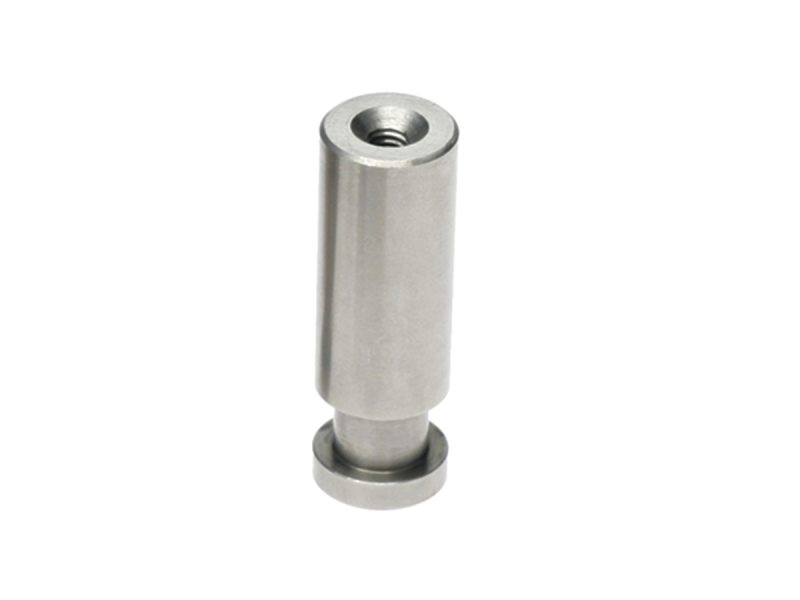

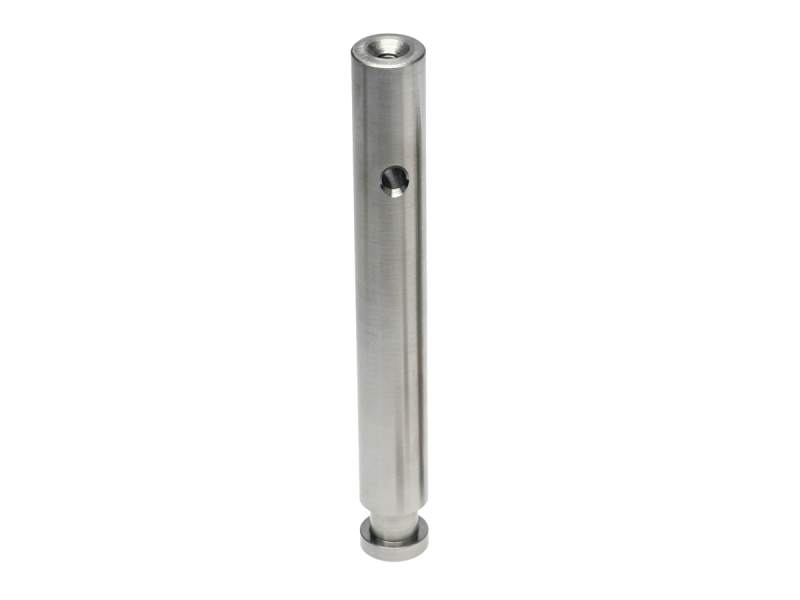

0.5 in. Magnetic Base Optical Pedestal Pillars

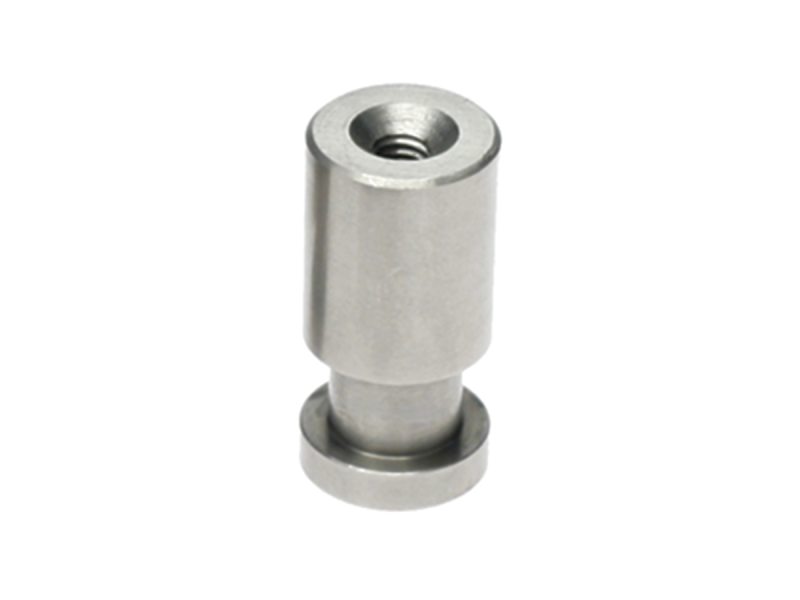

SP-1Z Precision Ground, Stainless Steel Mini Pedestal Post is 1/2 in. diameter with a length of 1.0 in. It features an M4 tapped hole on the top and a magnet located in the base to steady the pedestal prior to clamping it to an optical table by a SP-F clamping fork. They are also compatible with 0.5 in. Post Holders for height adjustment.

Specifications

Technical Specs

Type
Optical Pedestal
Diameter
12.7 mm
Height
25.4 mm
Thread Type
8-32

Material
Stainless Steel
Pack Quantity
1

Type
Optical Pedestal
Diameter
12.7 mm
Height
25.4 mm
Thread Type
8-32

Material
Stainless Steel
Pack Quantity
1

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

SP-Z(97.9 kB, PDF)

Other

SP-1Z RoHS Certificate(275.7 kB, PDF)
SP-1Z_RoHS2021.pdf(689.3 kB, PDF)
