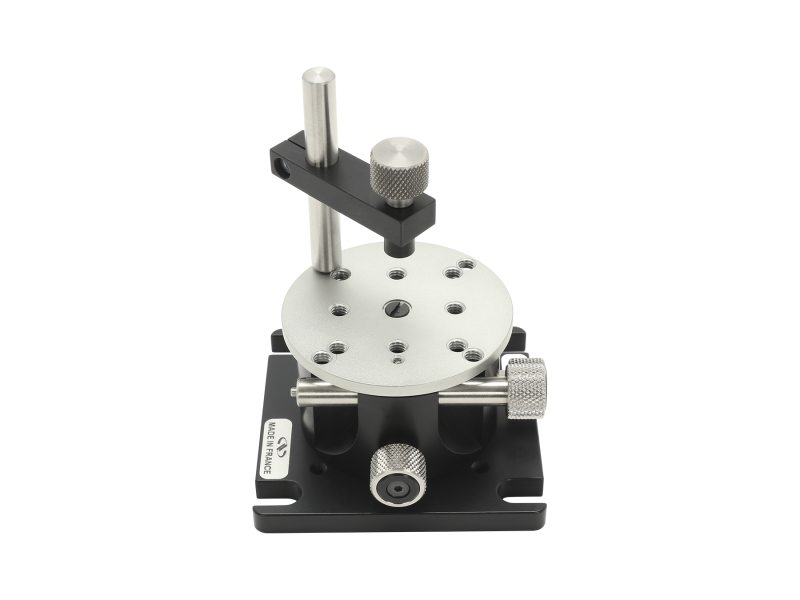

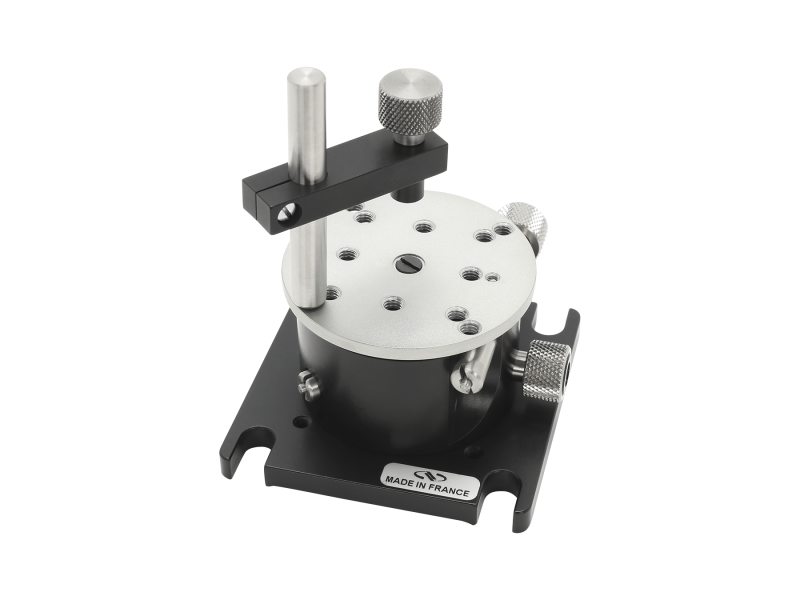

3 Axis Tilt & Rotation Stage, ±2.5°, Adjustment Screws

Model: PO46N-50

$554

In Stock

Compare

Add to List

Product Series Overview

High-Resolution Three-Axis Tilt Mounts

The PO46N-50 Tilt and Rotation Stage provides two independent tilt adjustments plus the added versatility of an in-plane rotation adjustment. These adjustments allow optical components like prisms and acousto-optic modulators to be oriented parallel to a desired plane, and then rotated within that plane. Standard adjustment screws provide exceptional resolution. All three axes are spring-loaded to eliminate backlash. For easy insertion and removal of optical components, a mounting clamp is included. The spring-loaded clamp securely, yet gently, holds optics to the platform.For mounting to other positioners, BR3 Bridles can be used for PO46 in lieu of the removable base plate.

Specifications

Technical Specs

Adjustment Type

Adjustment Screw
Angular Range

±2.5°
Sensitivity

3 arc sec

Load Capacity

50 N
Mounting

Base Plate

Adjustment Type

Adjustment Screw
Angular Range

±2.5°
Sensitivity

3 arc sec

Load Capacity

50 N
Mounting

Base Plate

Resources & Downloads

Other

PO46N-50 RoHS Certificate (279.4 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

POSERIES DWG-S (125.9 kB, PDF)
