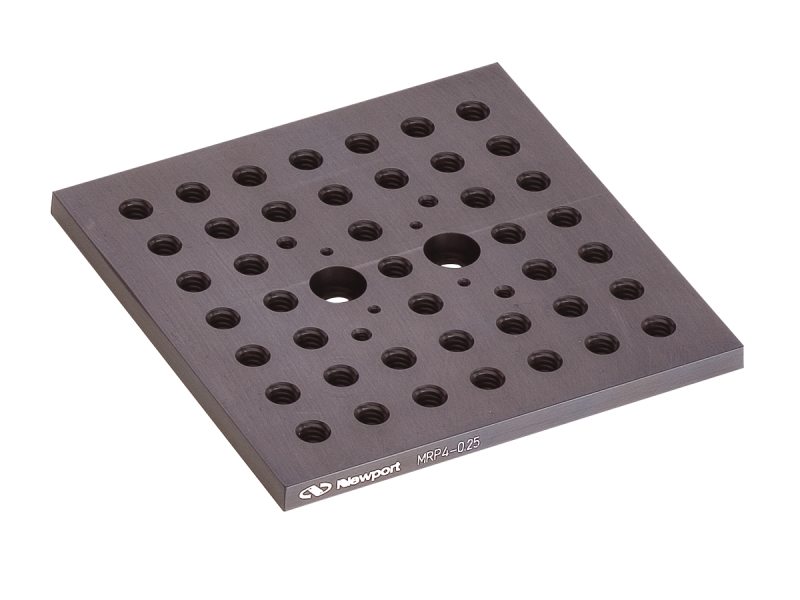

Modular Riser Plates, 4 in. x 4 in. x 0.25 in., 1/4-20 Thread
Modular Riser Plates, 4 in. x 4 in. x 0.25 in., 1/4-20 Thread
Model: MRP4-0.25
Product Series Overview
Modular Riser PlatesThe MRP4-0.25 Modular Riser Plate raises the surface of an optical table, allowing components to be securely mounted at a fixed 0.25 inch height. 4 x 4 inch Modular Riser Plates can be stacked to achieve any height in 0.125 inch (3.175 mm) increments. Ample 1/4-20 threaded holes on the top surface are available to mount components to riser plates. These riser plates can be directly bolted to a table surface or mounted off the hole pattern using base clamps. 0.5 and 1.0 inch (12.7 and 25.4 mm) high versions have a groove around the base for the base clamps.
Resources & Downloads
2D Product Drawings
MRP4-25-1-S(126.1 kB, PDF)
Other
MRP4-0.25 RoHS Certificate(278.9 kB, PDF) MRP4-0-25_RoHS2021.pdf(684.9 kB, PDF)
