3 Axis Tilt & Rotation Stage, ±2.5°, Micrometers
3 Axis Tilt & Rotation Stage, ±2.5°, Micrometers
Model: PO46BD-50
Product Series Overview

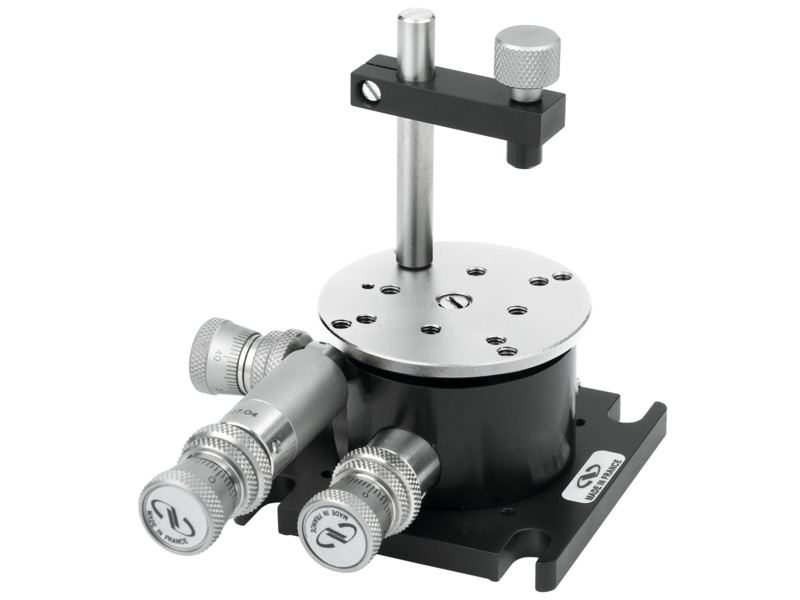

High-Resolution Three-Axis Tilt MountsThe PO46BD-50 Tilt and Rotation Stage provides two independent tilt adjustments plus the added versatility of an in-plane rotation adjustment. These adjustments allow optical components like prisms and acousto-optic modulators to be oriented parallel to a desired plane, and then rotated within that plane. Differential Micrometers provide exceptional resolution. All three axes are spring-loaded to eliminate backlash. For easy insertion and removal of optical components, a mounting clamp is included. The spring-loaded clamp securely, yet gently, holds optics to the platform.For mounting to other positioners, BR3 Bridles can be used for PO46 in lieu of the removable base plate.
Resources & Downloads
Other
PO46BD-50 RoHS Certificate(279.5 kB, PDF)
2D Product Drawings
POSERIES DWG-S(125.9 kB, PDF)
