Platform Optical Mount, 0.75 x 0.75 in, ±7° Adjustment, 8-32

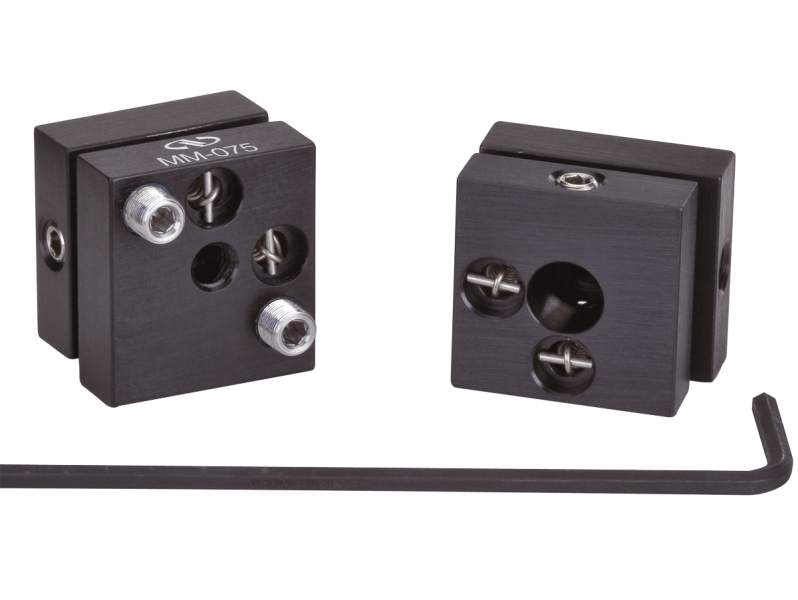

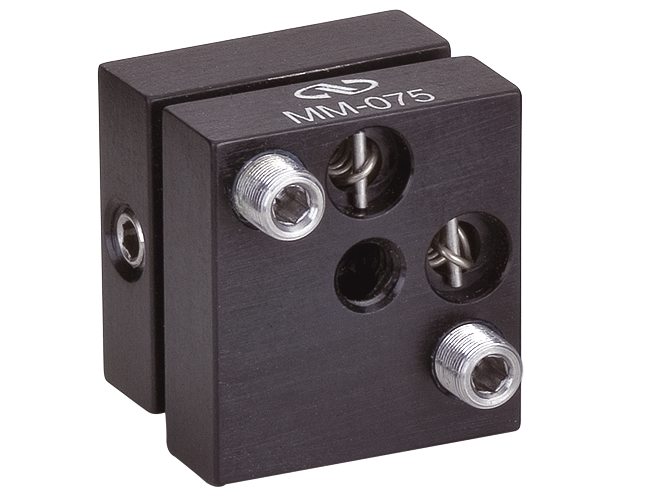

The MM-075-HEX Miniature Platform Optical Mount provides a stable mounting platform for 3/4 inch (19.1 mm) diameter mirrors. The M-MM-075-HEX can be post mounted as a horizontal tip/tilt platform using the 8-32 threaded hole in the back plate. It uses two 100-TPI threaded hex-key adjusters for a ±7° range. The UPA.5, UPA.75, UPA1, and UPA2 optic adaptors provide a convenient and stable method to hold mirrors from 0.5 to 2 inch (12.7 to 50.8 mm) diameter on the MM-075-HEX platform mount. The optic and adaptor can easily be removed and replaced with minimal realignment.
