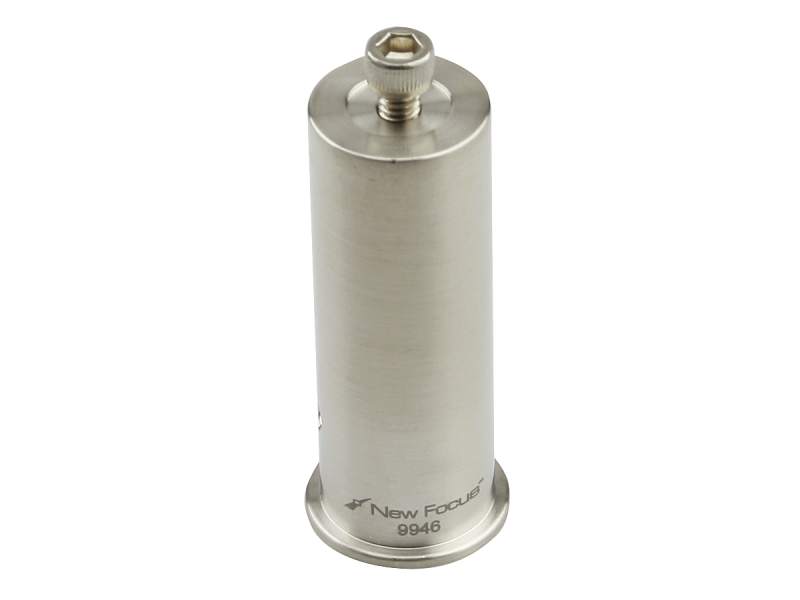

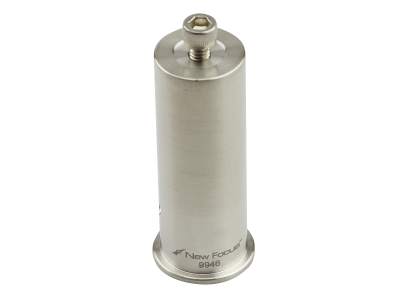

Optical Pedestal, 2.0 in. Height, 0.7 in. Diameter, 8-32 Thread
The 9946 Small Optical Pedestal allows you to mount our tiny mirror mounts to a full sized optical table. The thick stainless steel construction gives a stiff connection to the optical table, providing a stable yet compact support. The 9946 is 2.0 in. tall and is used to bring a tiny mount to a standard 1/2 in. increment beam height. Every pedestal has an 8-32 threaded hole on each end.
Resources & Downloads
2D Product Drawings
9944-45-46-RC(215.2 kB, PDF)
