Mirror Mount, Lab Standard, EdgeGrip, 1.0 in., 2 Knob Actuators

Model: M1-1D

$100

In Stock

Compare

Add to List

Product Series Overview

M Series Clear Edge Mirror Mounts

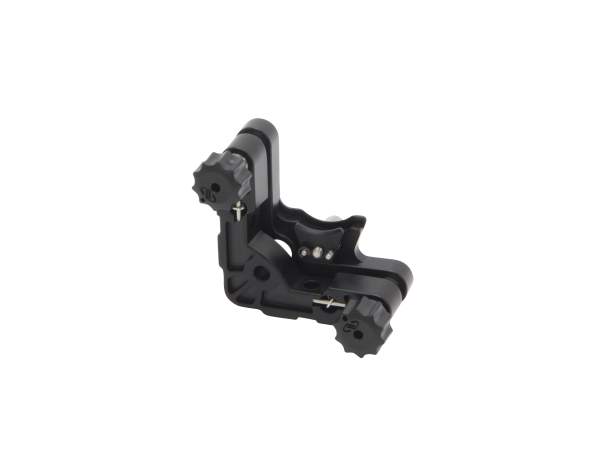

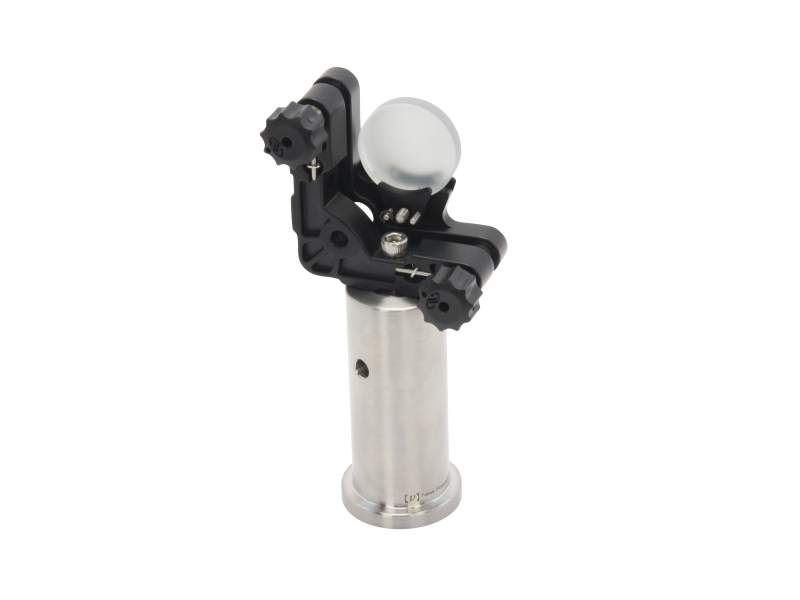

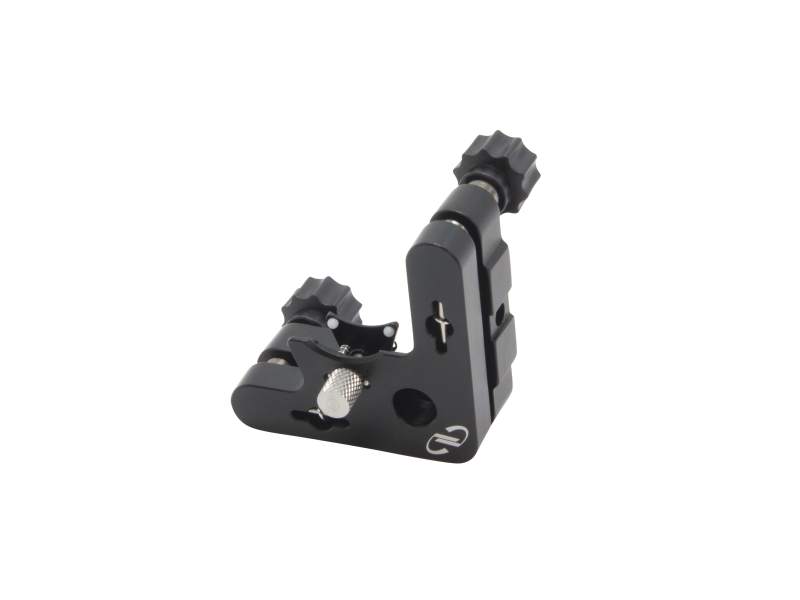

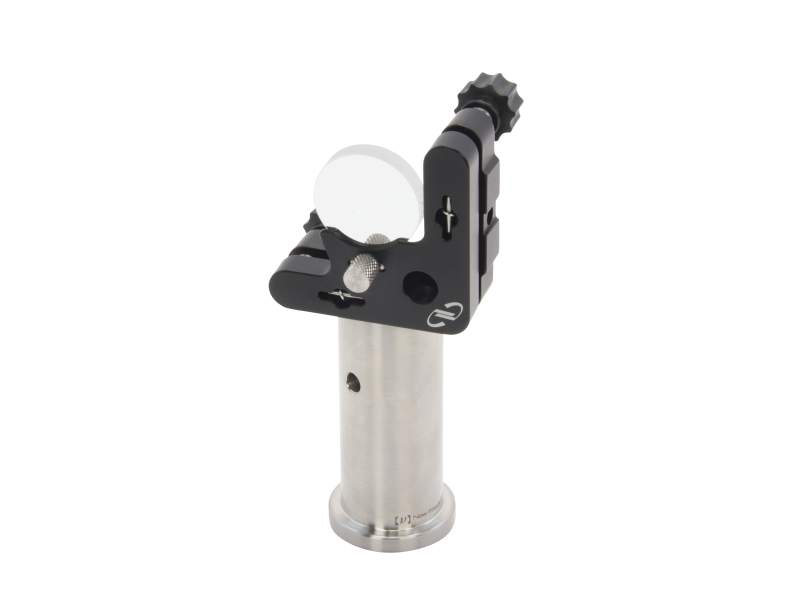

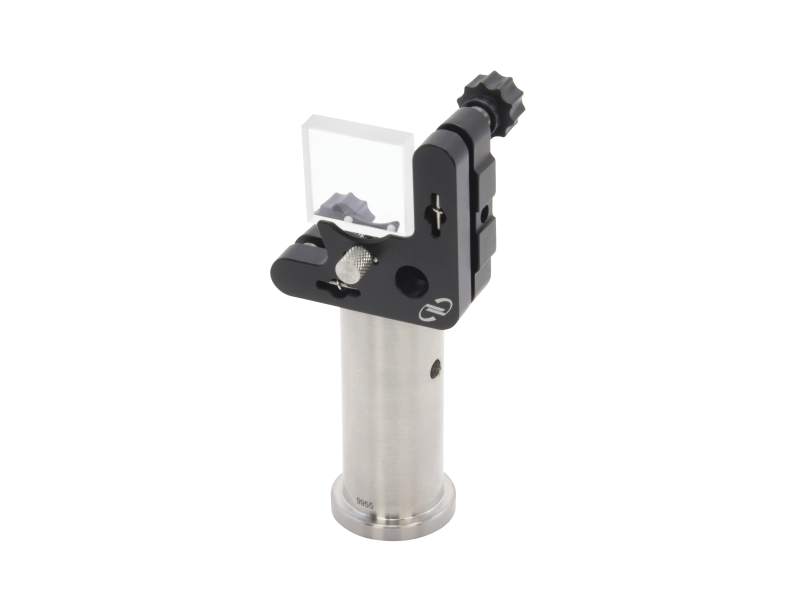

The M1-1D Mirror Mount is designed to hold and position D-shaped mirrors. The EdgeGrip design allows it to hold standard 1 in. (25.4 mm) round mirrors as well as square mirrors up to 0.32 in. (8.1 mm) thick. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment up to ±4°.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec

Angular Range

±4°
Material

Coated Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

31.75 mm
Special Features

Edge Grip

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

100 TPI
Adjustments

θx, θy
Sensitivity

3.8 arc sec

Angular Range

±4°
Material

Coated Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

31.75 mm
Special Features

Edge Grip

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

M1-1D-351 (277.3 kB, PDF)

Other

M1-1D RoHS Certificate (278.6 kB, PDF)
M1-1D_RoHS2021.pdf (681.9 kB, PDF)
