Optical Filter Mount, Edge Grip, 1.0 in. Optics, 8-32
Optical Filter Mount, Edge Grip, 1.0 in. Optics, 8-32
Model: HM-1
Product Series Overview

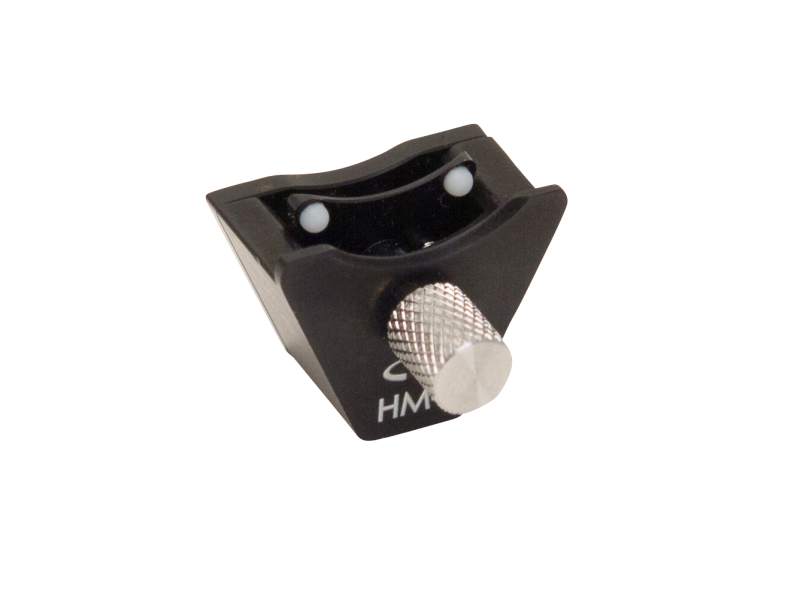

Edge Grip Thumbscrew Clamp Filter MountsThe HM-1 Optic Mount offers a convenient, economical system for mounting 1.0 in. (25.4 mm) round or square filters, beam splitters or mirrors. The mount uses the patent pending Edge Grip™ mounting mechanism to hold the optic near its edge. This holding technique allows for easy installation / removal of the optic and makes the mount noticeably smaller in size. The holder incorporates an 8-32 threaded mounting hole for post mounting on English SP and MSP Series Posts, as well as PS Series Pedestal Posts.
Resources & Downloads
Other
HM-1 RoHS Certificate(0, PDF)
2D Product Drawings
HM-1(309.7 kB, PDF)
